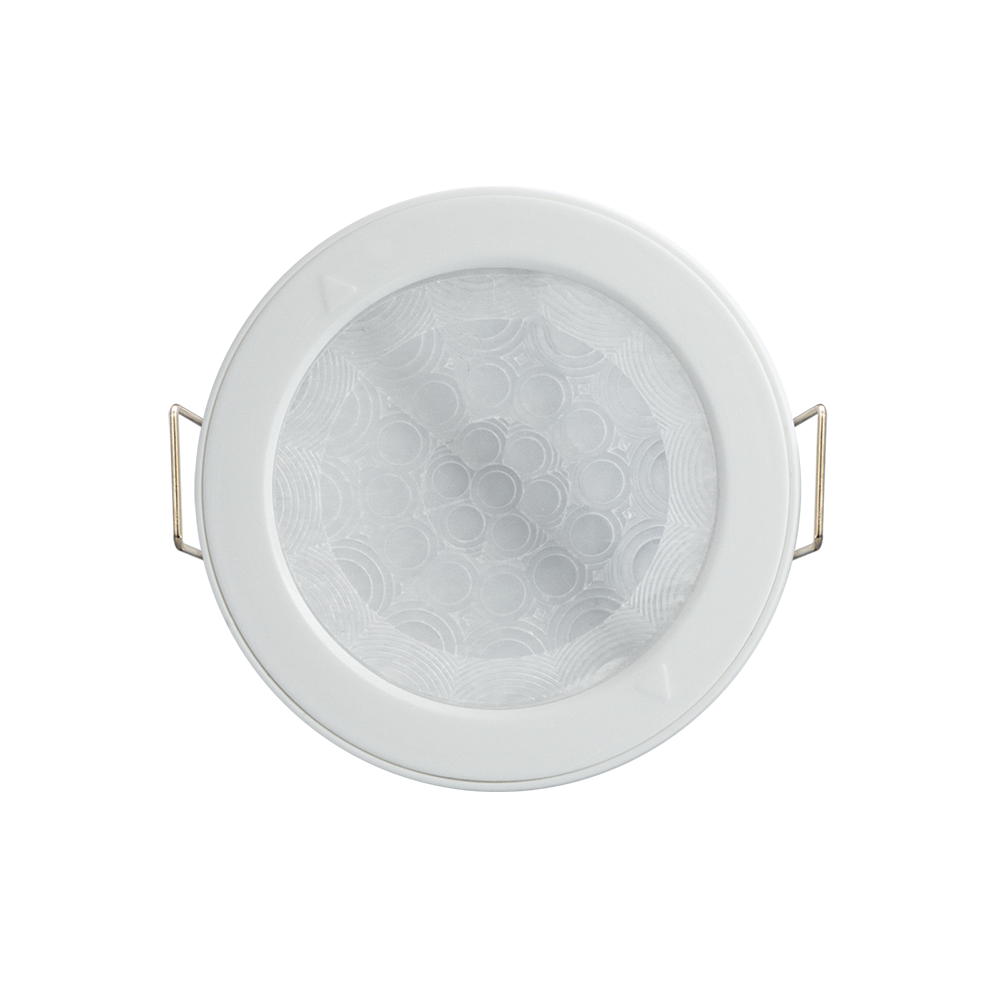

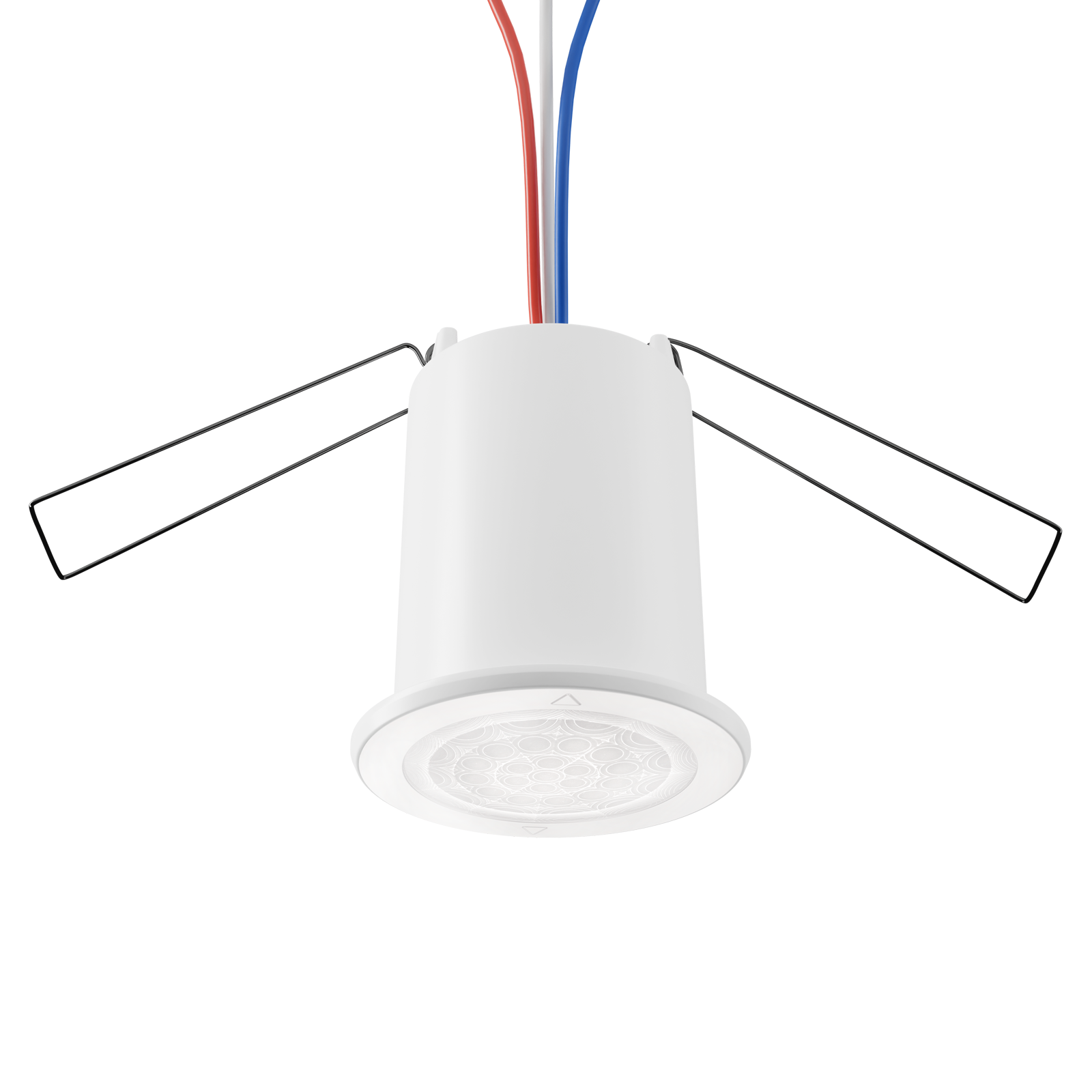

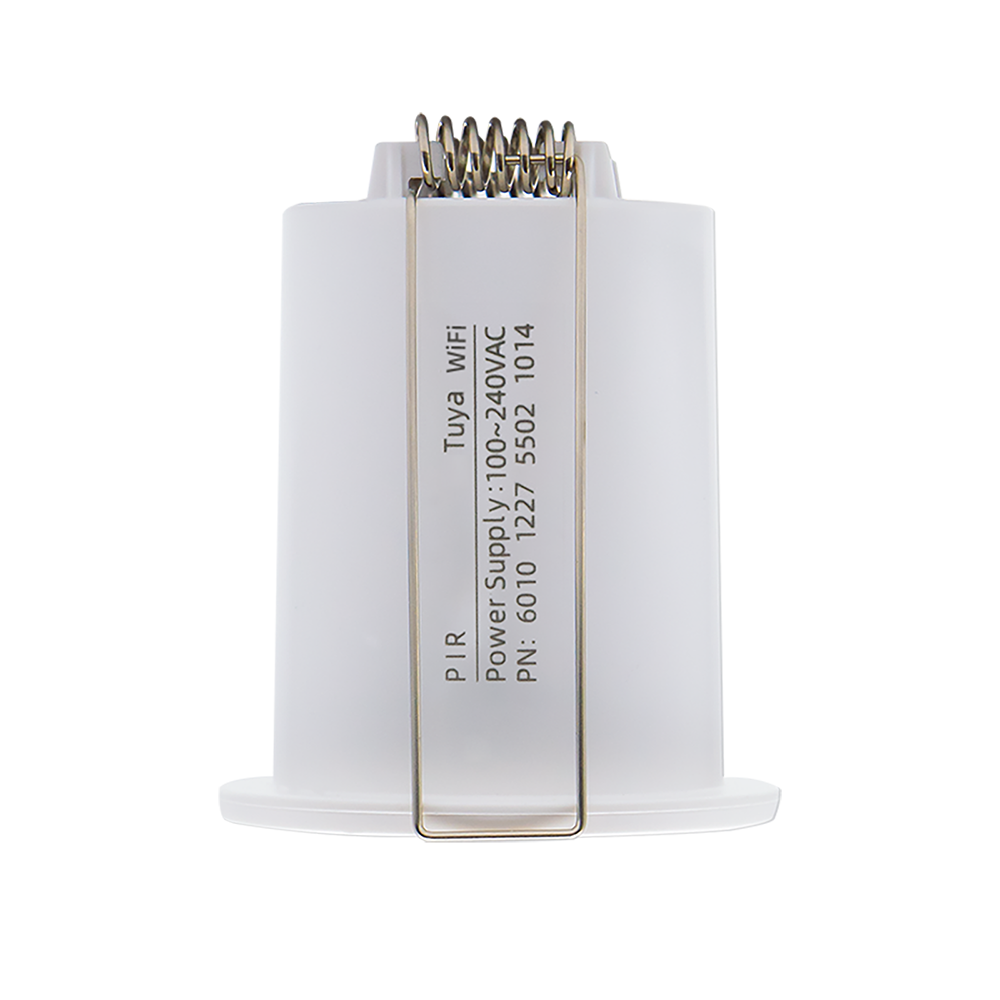

PIR Curtain Motion Sensor (Tuya WiFi & Switch)
No.R1-PIR-TYW/S1/20
SKU: 60.10.1227
Product Model: CTL-SEN-R1/1227
It is a millimeter-wave radar sensor capable of detecting human presence. The detection direction can be adjusted from 0~60 degrees.Equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol algorithm to confirm human presence by assessing breathing patterns. It has a built-in 0~32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
Installation Height: 2~4m (Ceiling)
Detection Angle: 20°
Detection Range: φ6m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ42mm
Power Input: AC100~240V
Output: 1 Channel Switch (300W)
Communication: Tuya-WiFi
It is a millimeter-wave radar sensor capable of detecting human presence. The detection direction can be adjusted from 0~60 degrees.Equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol algorithm to confirm human presence by assessing breathing patterns. It has a built-in 0~32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
Installation Height: 2~4m (Ceiling)
Detection Angle: 20°
Detection Range: φ6m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ42mm
Power Input: AC100~240V
Output: 1 Channel Switch (300W)
Communication: Tuya-WiFi
