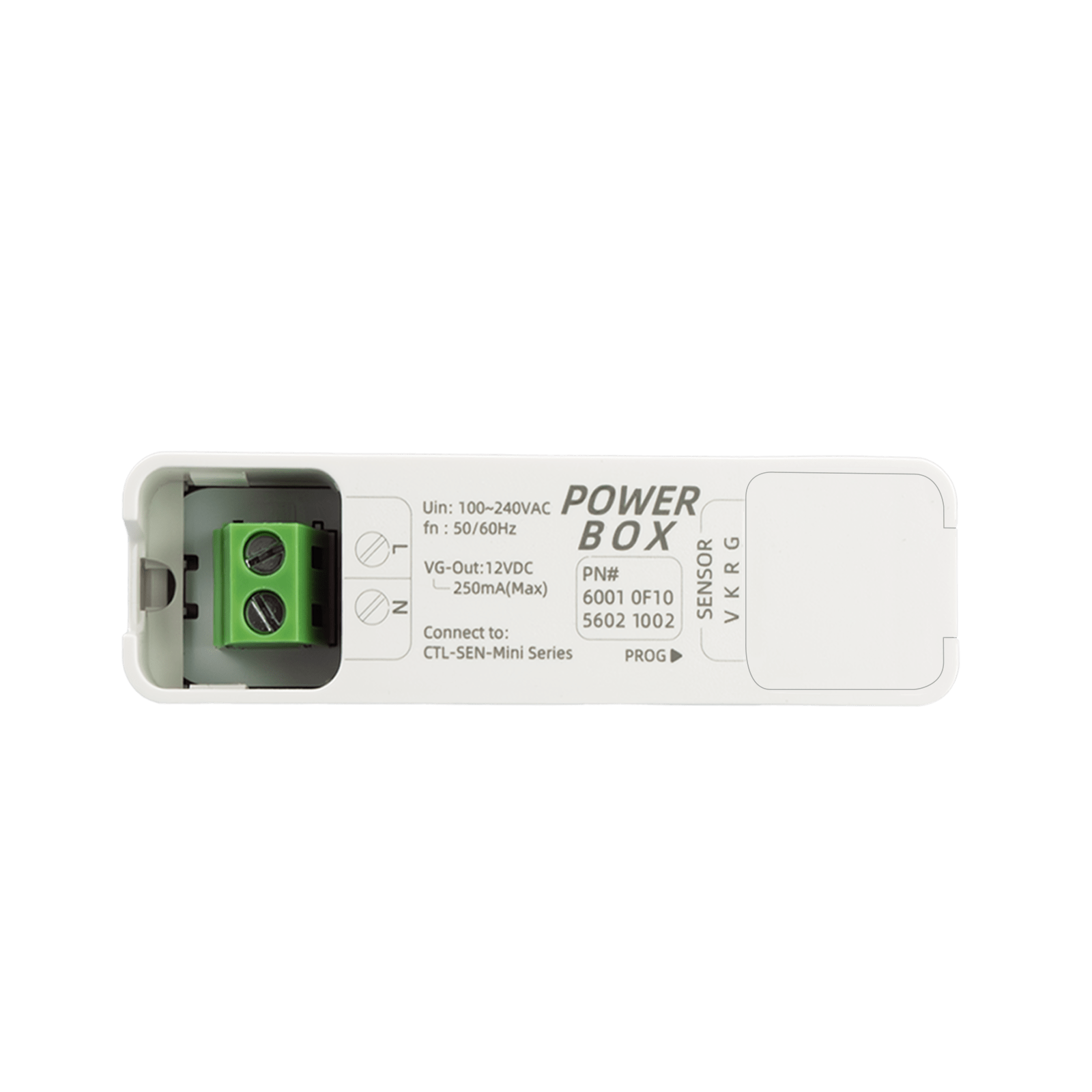

Mini Box(AC to DC12V Power Supply)

No.BOX-AC-PS
P/N: 60.01.0F10
The BOX-AC-PS (Model: CTL-SEN-BOX/F10) is an ultra-compact AC-to-DC power supply module engineered specifically for the Mini series sensors.
$15.90 $4.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
  • Mini Box(AC to DC12V Power Supply)
  • Mini Box(AC to DC12V Power Supply)
1/1
  • Mini Box(AC to DC12V Power Supply)
  • Description
  • Resources

Overview

The BOX-AC-PS (Model: CTL-SEN-BOX/F10) is an ultra-compact AC-to-DC power supply module engineered specifically for the Mini series sensors. This unit provides a seamless power solution by converting wide-range AC input into a stable 12V DC output, making it an essential component for integrated sensor ecosystems.

Features

  • Efficient Power Conversion: Seamlessly transforms AC 100–240V input into a reliable DC 12V (≤ 250 mA) output to drive connected sensors.
  • Ultra-Compact Footprint: Measuring only 75 mm × 20 mm × 22 mm, it is designed to fit into tight spaces where traditional power supplies cannot.
  • Integrated Network Pairing: Features a dedicated "PROG" button; a 5-second long press initiates Tuya Network pairing for compatible wireless sensor models.
  • Robust Safety & Build: Encased in UL94 V-0 flame-retardant PC housing with an IP20 rating, ensuring durability and safety for indoor applications.

Specifications

Input Voltage AC 100 to 240 V (50/60 Hz)
Output Voltage DC 12 V (Max 250 mA)
Dimensions 75 mm × 20 mm × 22 mm
Weight 28 g
Operating Temperature -20 to 45°C (Indoor)
Housing Material Flame-retardant PC (UL94 V-0)
Terminal Capacity 0.5 to 2.5 mm²
IP Rating IP20
Color White

Dimensions

Product Dimensions
Product Dimensions

Mounting

Disconnect main power before wiring.

Use safety-certified cables and strictly follow the wiring diagram.

Ensure input voltage is within range and do not exceed the rated load.

Periodically inspect terminal blocks for secure connections.

BOX-AC-PS wiring diagram
Wiring Diagram

FAQ

What power supply does the BOX-AC-PS require?

The BOX-AC-PS is powered by AC 100 to 240 V (50/60 Hz).

What are the operating conditions of the BOX-AC-PS?

Operating temperature: -20 to 45°C (Indoor). Protection level: IP20.
