Quad-Element Sensing | Creatrol PIR Motion Sensor Application Guide

In professional smart sensing layouts, we prioritize efficiency.
While we deploy 24GHz/60GHz radars for "stay-in" areas like bedrooms and boardrooms to capture breathing-level micro-motions, we must also consider the "transient zones"—hallways, foyers, and walk-in closets.

Is there a sensor that reduces project budgets without compromising the aesthetic and performance standards of luxury residences or high-end offices?

The Flaws of Standard PIRs:

• ❌ Aesthetic Intrusion: Large, protruding white hemispheres that disrupt refined interior designs.
• ❌ Detection Lags: Low-cost dual-element probes that miss fast-moving targets or fail during summer temperature spikes.

PIR should not be a synonym for "cheap." Creatrol has applied the same rigorous standards used in our radar development to reshape the limits of infrared sensing.

Evolution of the Core: Quad-Element vs. Dual-Element

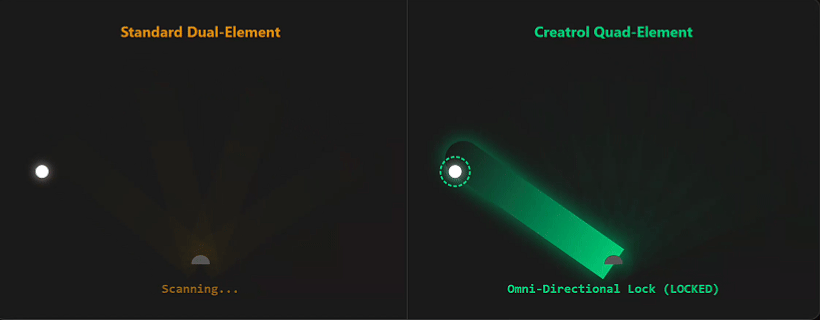

What is "Quad-Element Sensing"?
90% of PIR sensors on the market use "Dual-Element" probes, which are primarily sensitive to movement in a single direction (e.g., side-to-side but blind to front-to-back movement).

Creatrol PIR sensors come standard with Quad-Element (4-unit) Infrared Probes:

• Doubled Sensing Density: Four sensing units integrated into a single probe form a dense detection matrix.
• Omnidirectional Capture: Whether you are crossing the path or walking directly toward the sensor, the quad-element probe captures pyroelectric signal changes far more acutely than dual-element alternatives.
• Enhanced Anti-Interference: Superior common-mode rejection significantly reduces false triggers caused by airflow or sunlight.

Optical Aesthetics: Custom Micro-Arc Fresnel Lens

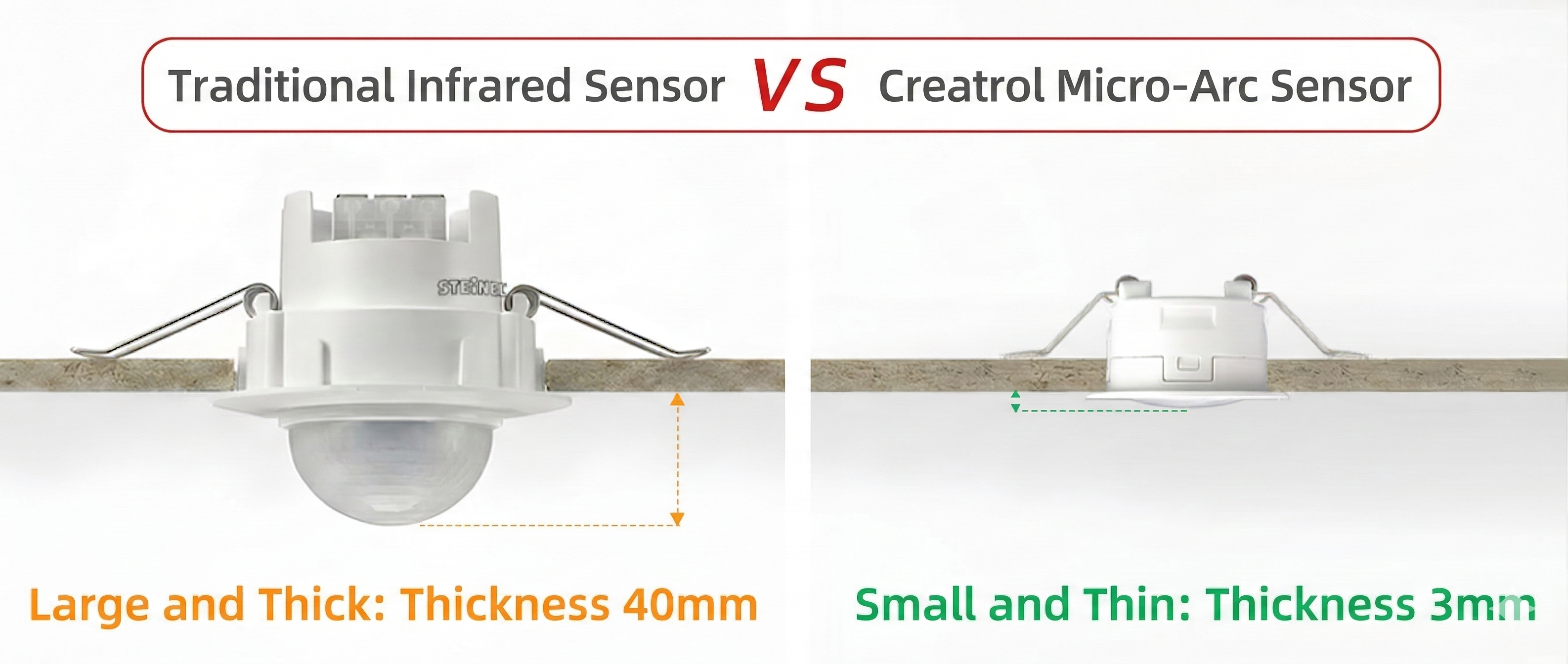

35mm "Invisible" DNA:
Part of the MiNi Series, this sensor features the signature Ø 35mm cutout. It is the size of a standard spotlight, blending seamlessly into the ceiling without drawing attention.

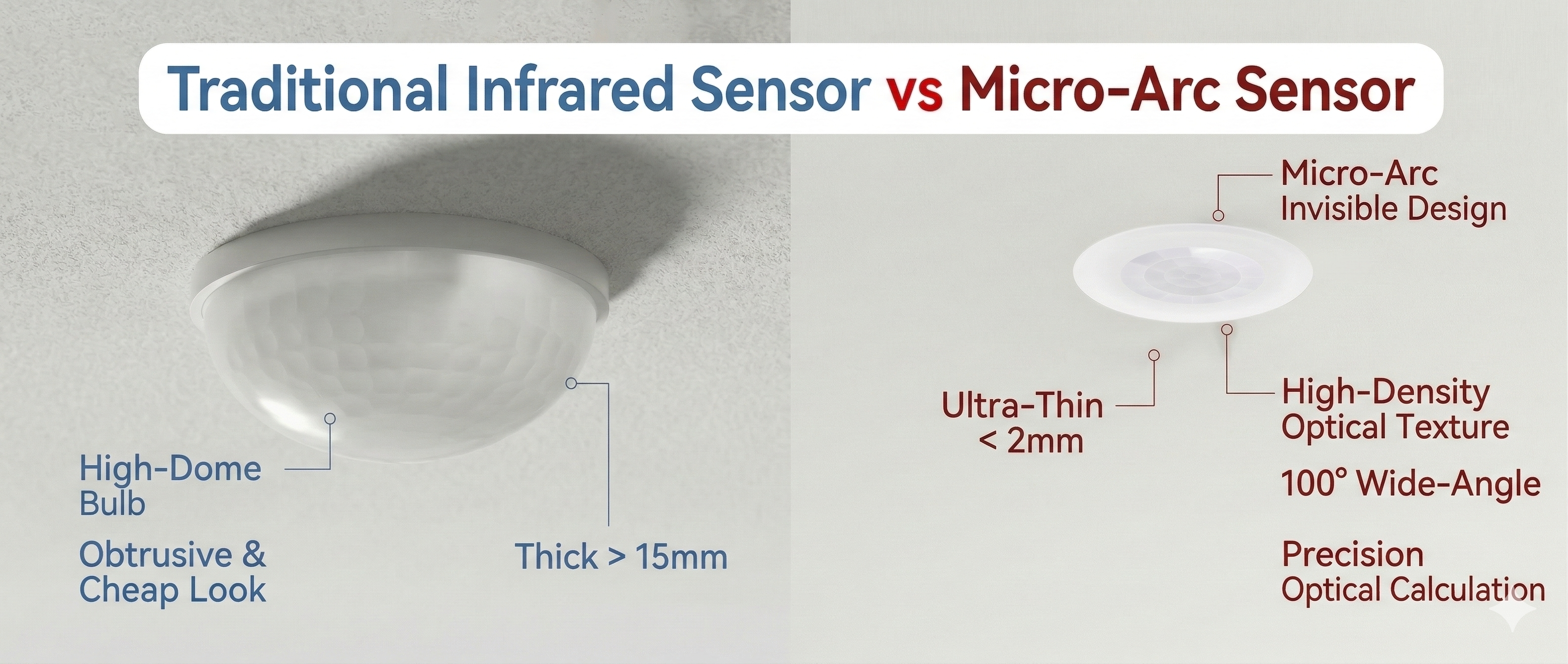

Rejecting the "Bulb" Look:
Traditional PIRs use bulky hemispherical lenses to focus light. Creatrol has re-engineered this via precision optics.
Micro-Arc Design: Once installed, the surface presents only a subtle arc, nearly flush with the ceiling.
Precision Texture: High-density optical textures are carved into an ultra-thin lens, maintaining a 100° wide-angle field of view while compressing the physical volume.

Strategic Positioning: The Golden Partner for Radar

In whole-home or commercial lighting projects, this sensor is the ultimate tool for budget optimization:

• Core Areas (Radar): Use Creatrol 24GHz/60GHz radars in living rooms, bedrooms, and offices to ensure lights stay on during stationary activities.
• Transition Zones (PIR): Use Creatrol Quad-Element PIRs in hallways, stairwells, and closets.
• Cost-Efficiency: Significantly lower hardware costs compared to radars.
• Purpose-Built Performance: Ideal for "Lights on upon entry, off upon exit" scenarios.
• Unified Aesthetic: Maintains the same 35mm cutout and minimalist design across the entire project.

Application Scenarios

• Foyers & Entryways: Captures entry movement instantly. High sensitivity ensures "Instant-on" lighting with zero perceptible delay.

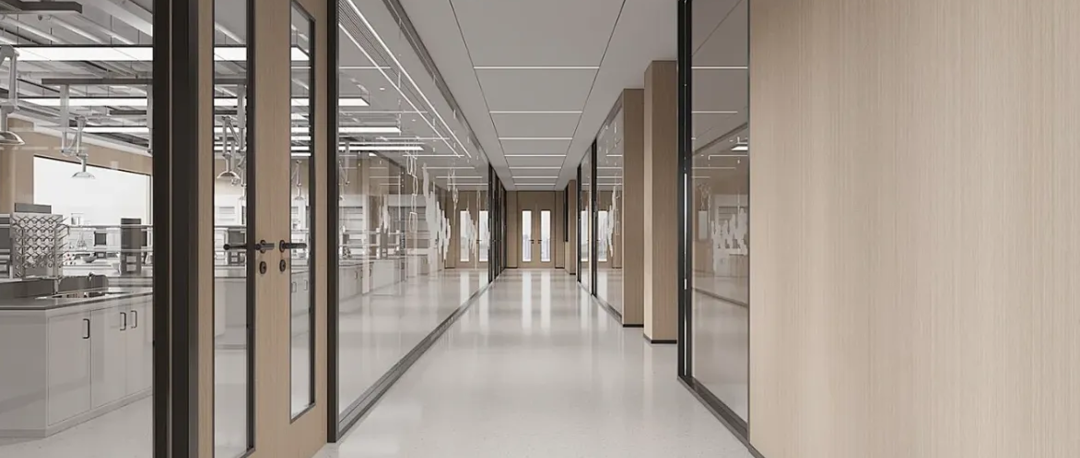

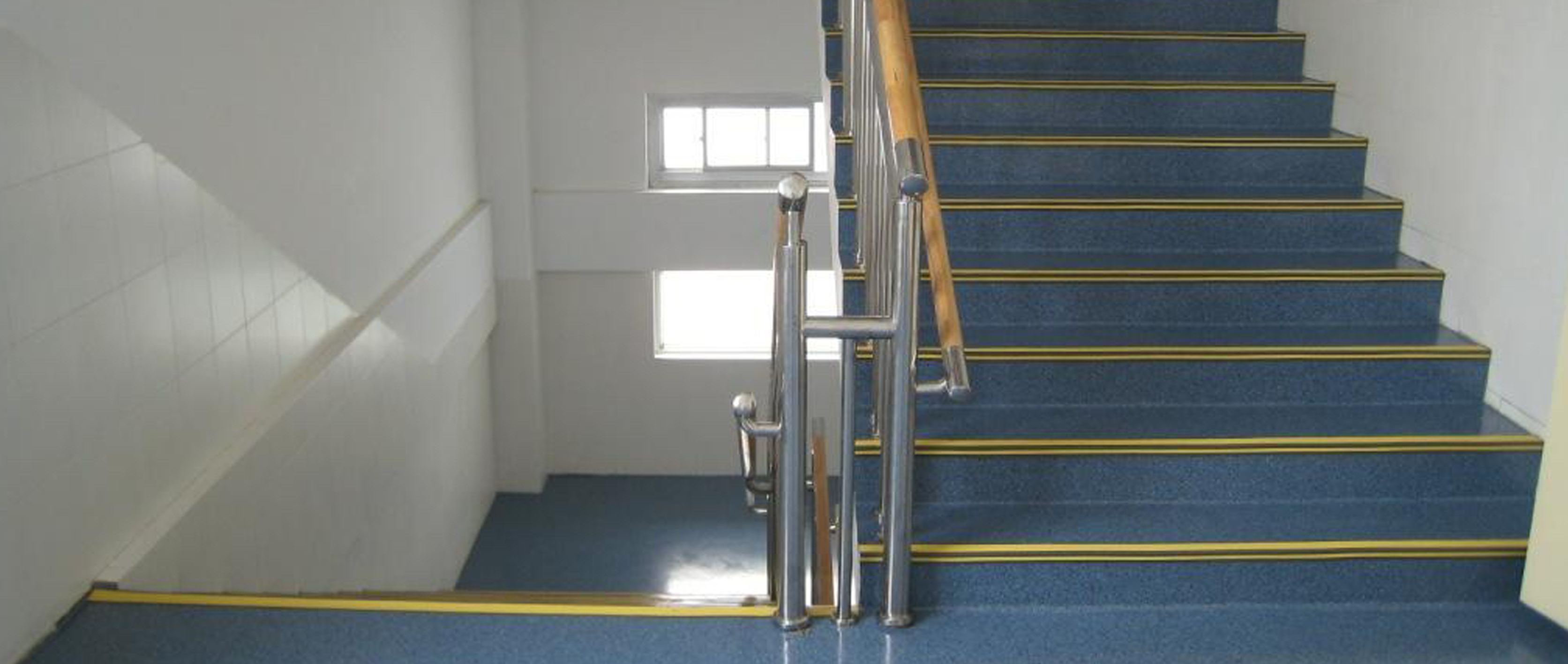

• Hallways & Stairwells: The premier choice for traffic-based lighting. Integrated light sensing ensures lights only activate at night or in low-ambient conditions.

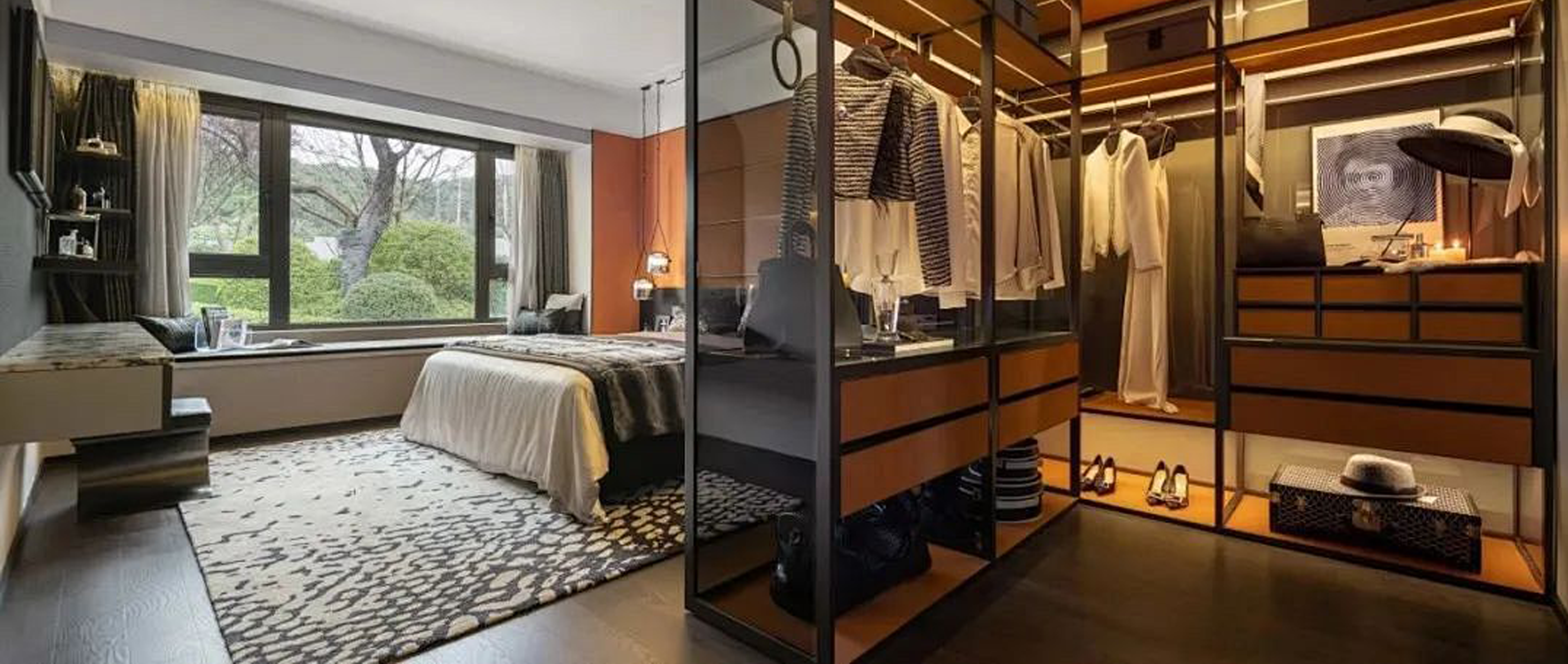

• Walk-in Closets & Storage: Avoid the "darkness while searching" awkwardness. Quad-element probes are far superior at capturing limb movements (like reaching for clothes) than dual-element versions.
• Commercial Warehousing & Fire Escapes: Ideal for large-scale deployment to manage project budgets while providing reliable security and lighting triggers.

Detection Range

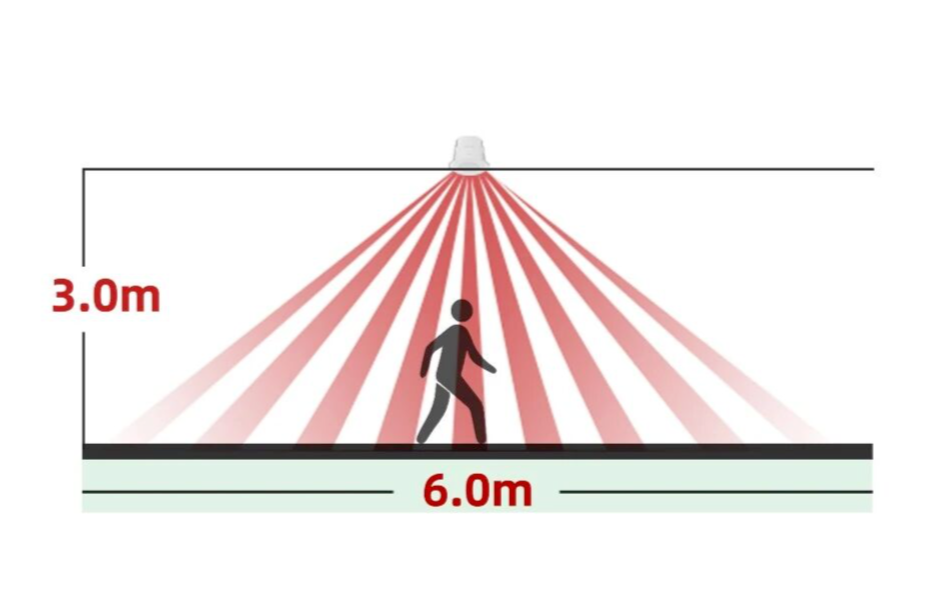

360° Wide-Angle: At a 3.0m mounting height, the max motion detection diameter is ≥ 6.0 meters.

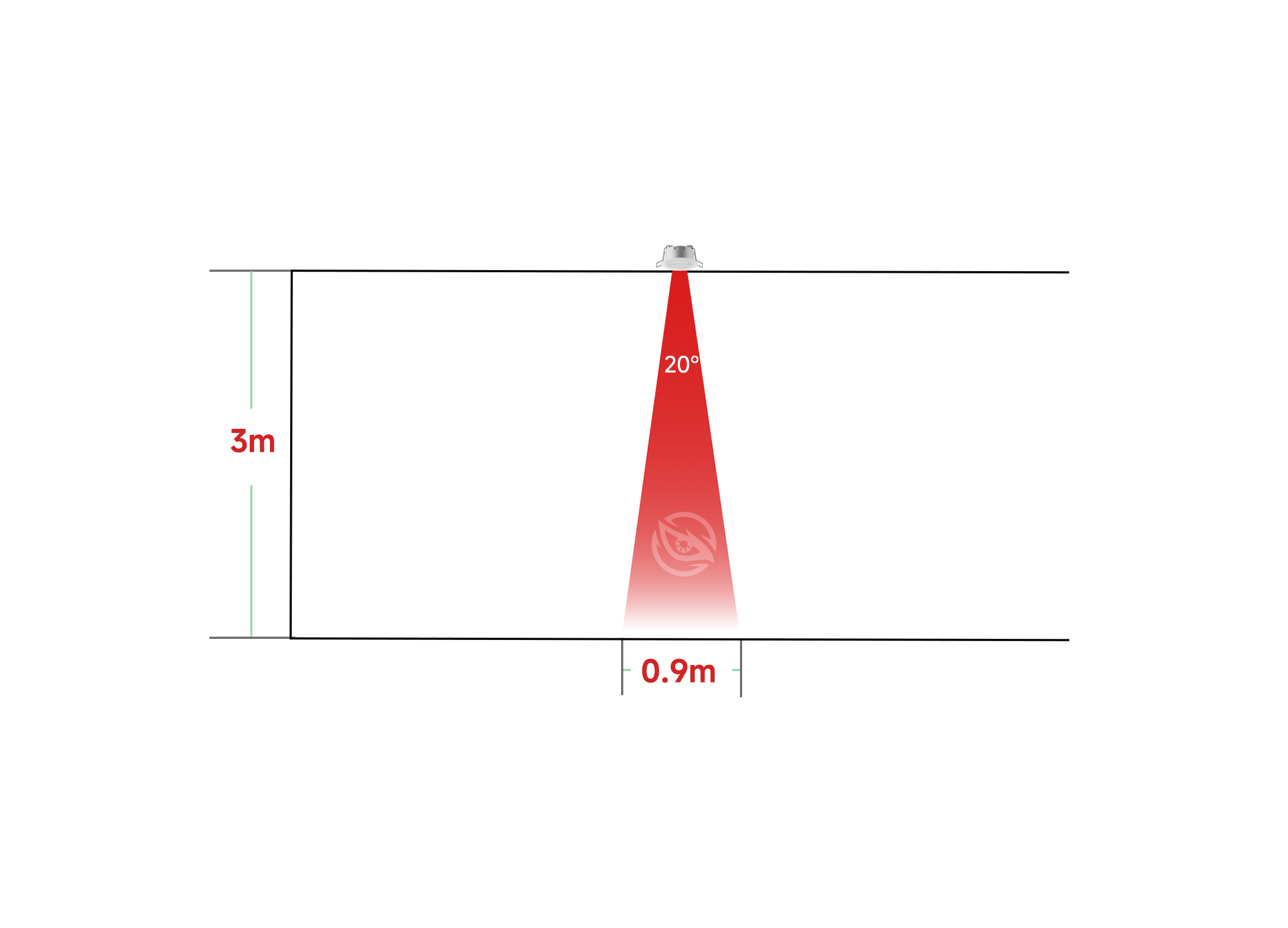

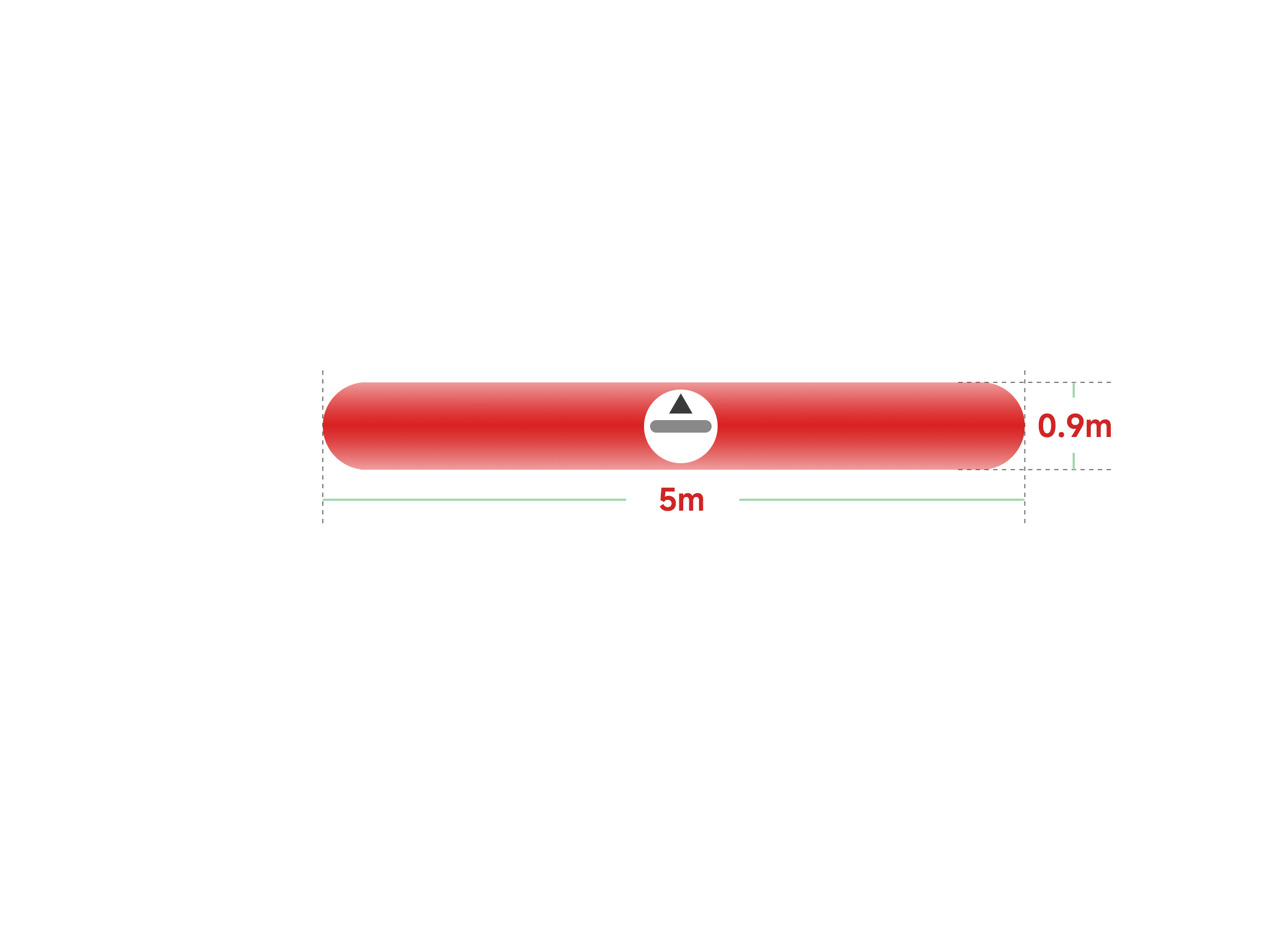

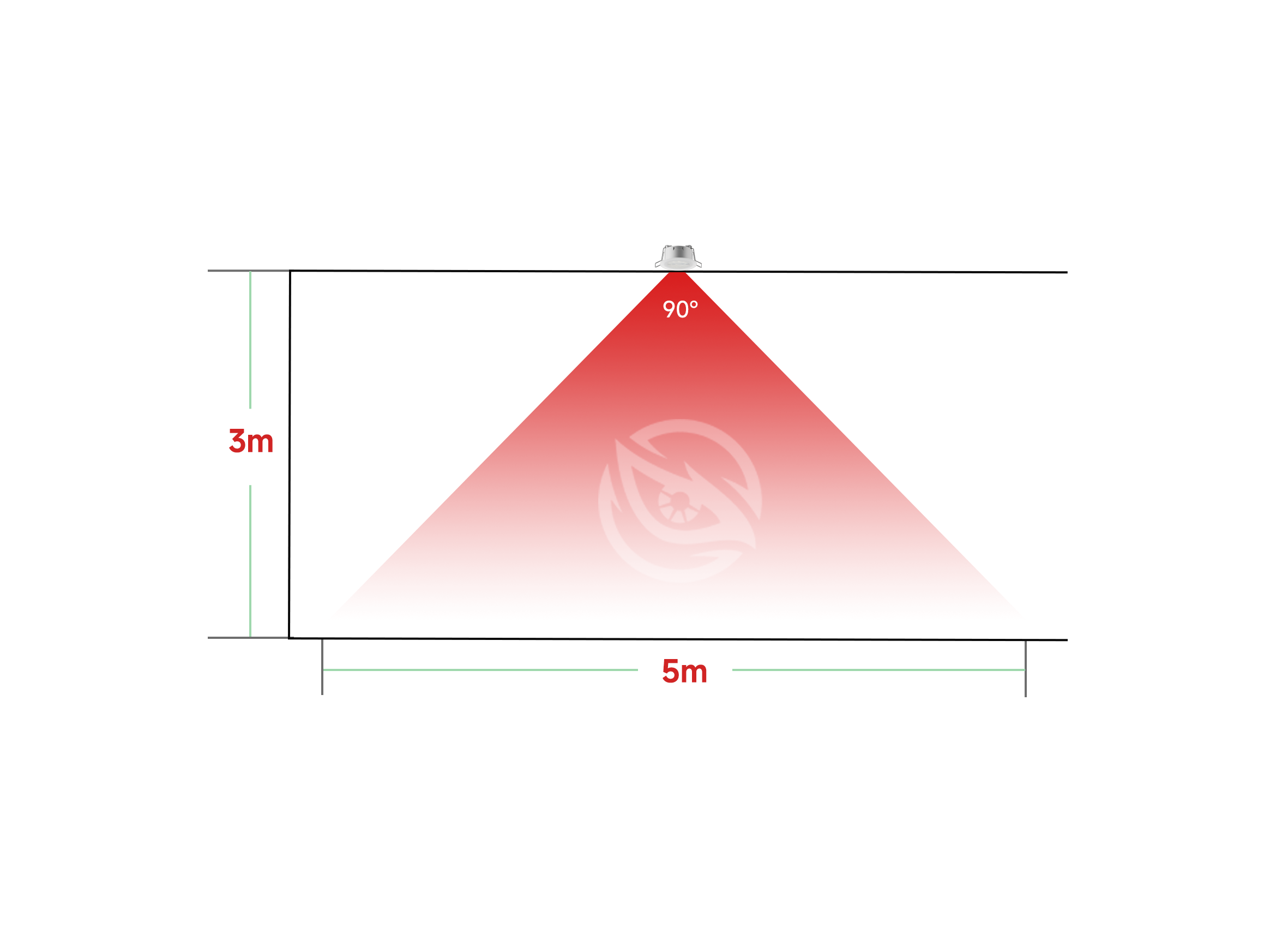

Curtain Version: We also offer a 20° Curtain Motion Sensor for specialized perimeter or corridor sensing.

Specifications

Various Installation Accessories (Universal for Mini Series)

• Frameless Embedded Parts: For pre-installed suspended ceilings, allowing the sensor to sit flush with the ceiling surface.
• Wall Panel Cover: Standard 86-type box panel for wall-mounted installations.
• Surface Mount Sleeve: For exposed external mounting; features a magnetic back for easy attachment.
• Angle-Adjustable Universal Mount: Used with surface mount accessories to provide a wide range of detection angle adjustments.
• Large Aperture Adapter Ring: For use when the ceiling hole is too large or when replacing legacy devices.
• 90° Bracket: For scenarios requiring horizontal detection, such as under desks or bed frames.

Multi-Protocol Versions

Mini Embedded Version
Version / Model / Part Number	Product Image	Order Now
Dry Contact Mini-PIR-REL [60.99.1101]
RS485 Mini-PIR-485 [60.99.1108]
UART Mini-PIR-UART [60.99.1181]
KNX Mini-PIR-KNX V2 [60.99.1113]
AC Light Control 300W Mini-PIR-S1 [60.99.1111.F20]
AC Light Control 1KW Mini-PIR-S1+ [60.99.1111.F21]
Dual-Channel AC Light Control Mini-PIR-S2 [60.99.1111.F22]
Tuya ZigBee Mini-PIR-TYZ/AC [60.99.1116.F10]
Tuya WiFi Mini-PIR-TYW/AC [60.99.1126.F10]
Tuya ZigBee/S1 Mini-PIR-TYZ/S1 [60.99.1116.F20]
Tuya WiFi/S1 Mini-PIR-TYW/S1 [60.99.1126.F20]
Tuya ZigBee/S1+ Mini-PIR-TYZ/S1+ [60.99.1116.F21]
Tuya WiFi/S1+ Mini-PIR-TYW/S1+ [60.99.1126.F21]

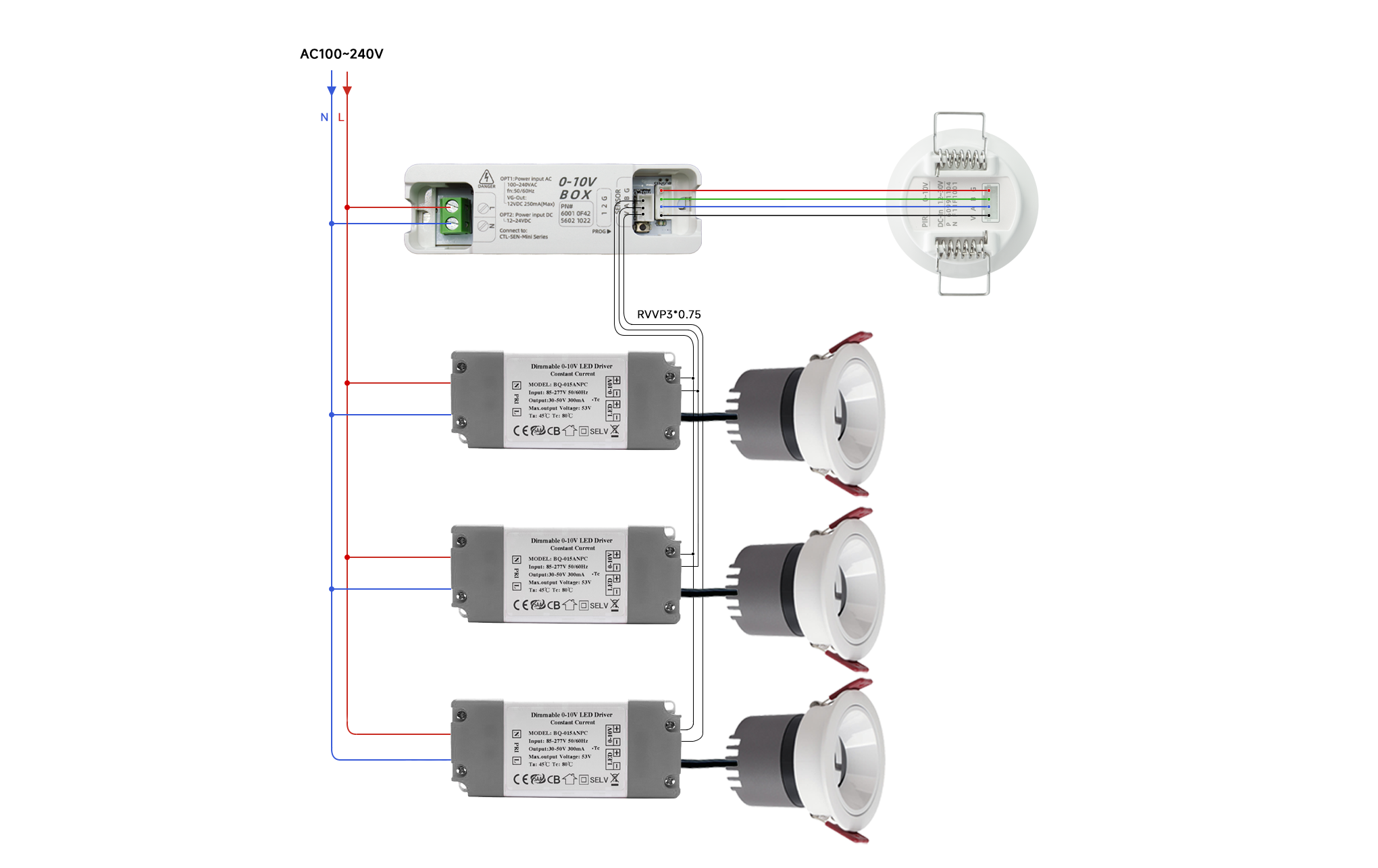

0-10V Mini-PIR-10V [60.99.1104.F42]
DALI Light Control Mini-PIR-DALI/LTC [60.99.1105.F51]
DALI Mini-PIR-DALI/STD [60.99.1115]

Version Descriptions

Tuya Version

The sensor integrates into the global Tuya IoT ecosystem via ZigBee/WiFi. Users can effortlessly add devices, configure scenes, and manage operations remotely via the app, ensuring flexible deployment.

Beyond simple device linkage, the app provides real-time visibility into activity and bed occupancy (in-bed/out-of-bed) status. If a fall or prolonged inactivity is detected, alerts are pushed to the smartphone within milliseconds, breaking spatial limitations.

Seamless automation with a vast array of Tuya-compatible devices (e.g., lights, sockets, curtain motors) makes it ideal for smart homes, hotels, and smart commercial installations.

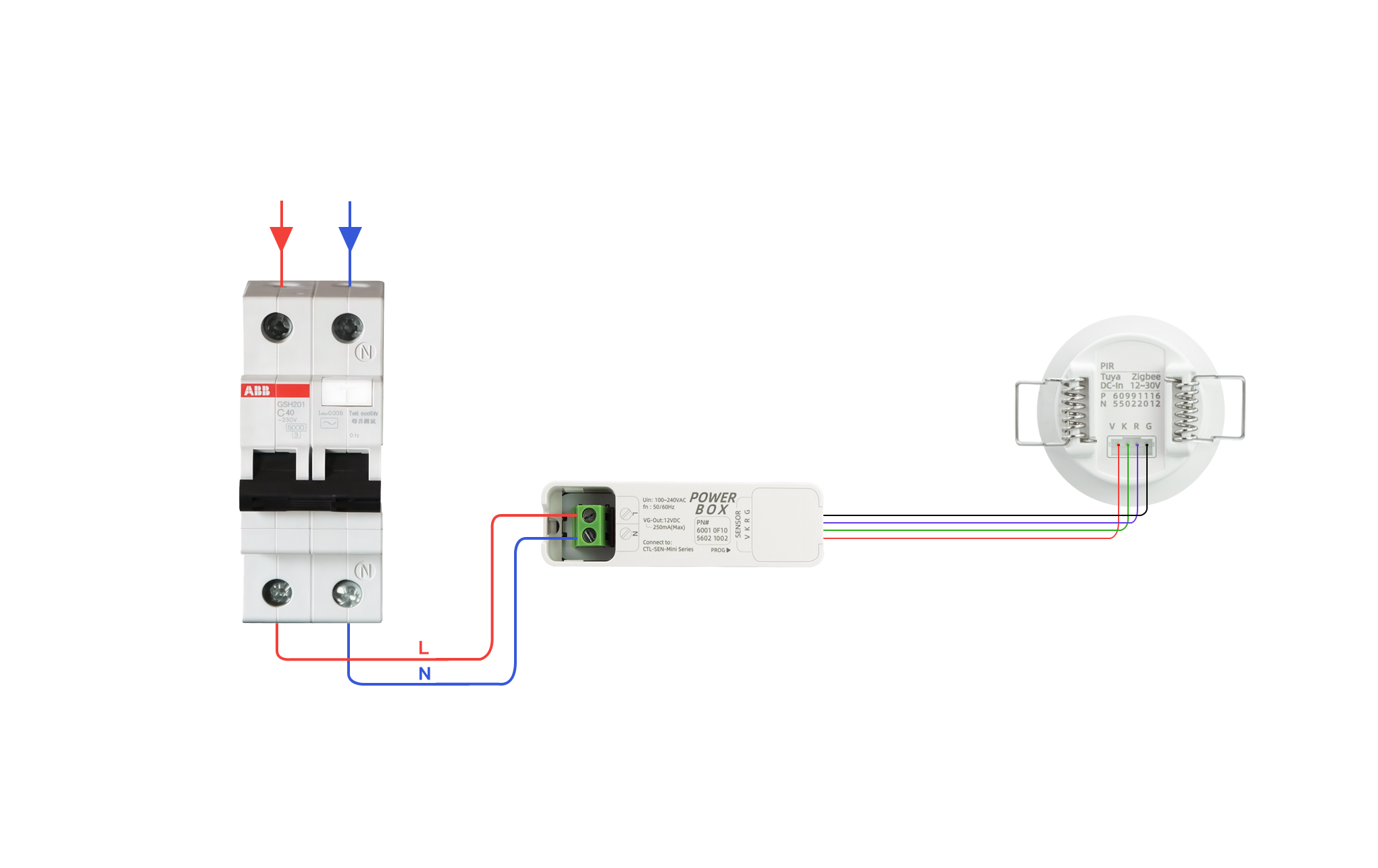

Wiring: 220V Mains -> Power Box -> Sensor

KNX Version

KNX is the global standard for home and building control. It uses a dedicated bus for power and communication, ensuring superior stability and interference resistance. Maps high-dimensional data resolved by the radar—including fall status, presence, left/right bed return/exit, and zone entry/exit triggers—into KNX Group Objects for seamless system programming and integration.

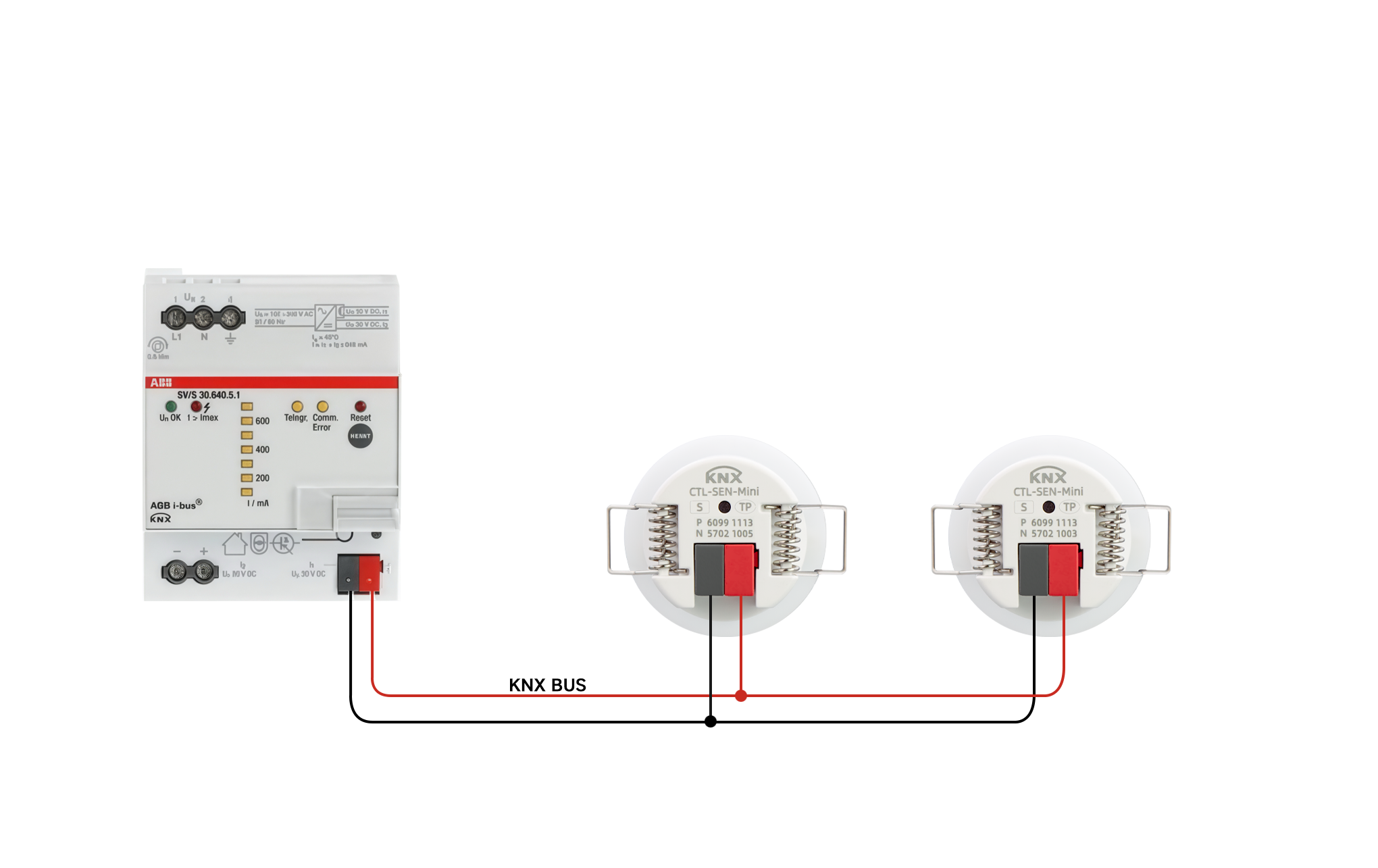

Wiring: KNX Bus Power -> Sensor 1 -> Sensor 2

ETS Programming
Certified database provided. All parameters are configured via ETS. Creatrol offers complete bilingual tutorials covering database setup, Easy/Advanced modes, and scene linkage.

For detailed ETS operations, please scan the QR code below or click the link to access the CTL-KNX series user manuals and video tutorials.

RS485 Version

Outputs rich detection data (distance, presence, lux, triggers) for precise logic and system analytics. Supports universal Modbus-RTU or high-real-time Unified Active Transmit Protocol.

RS485 Modbus

RS485 Unified Active Transmit Protocol

Wiring: DC Power -> RS485 Gateway -> Sensor 1 -> Sensor 2

DALI Version

Native support for the DALI-2 standard. Connects directly to existing DALI lighting systems as a smart input device, requiring no additional gateways or complex configurations.

Wiring Reference: DALI Power -> Sensor -> DALI Driver -> Lamp

Dry Contact Version

Features a silent solid-state relay with no mechanical vibration or arcing, ensuring a much longer lifespan than traditional relays. Ideal for integration with various smart and security systems.

Wiring: Connects to Smart System Input Modules.

AC Power Version

Simplifies lighting control with 220V mains power—direct control for "Lights on when occupied." Connects to 300W or 1kW Light Control BOX.
