The ECO-PIR-485 is a professional-grade Passive Infrared (PIR) motion sensor specifically engineered for energy-efficient automation within smart hotel environments.
The ECO-PIR-485 is a professional-grade Passive Infrared (PIR) motion sensor specifically engineered for energy-efficient automation within smart hotel environments. Featuring enhanced quad-element PIR sensing technology, the device ensures high-precision capture of human motion signals. Serving as a critical trigger component of the hotel's "3+1" energy-saving framework, it leverages an industrial RS485 bus for stable, high-reliability wired communication, delivering essential occupancy data to guestroom power management systems. This facilitates streamlined energy control and operational efficiency while ensuring absolute guest privacy.
Features
Equipped with PIR motion detection.
Quad-element PIR technology enhances radial movement detection and minimizes blind spots.
Supports parameter configuration and status readout via IR remote control.
Indicator LED indicator defaults to OFF; configurable to Breathing or Night Light modes.
Powered by a proprietary module with advanced signal processing algorithms.
Specifications
Communication Type
RS485
Input Voltage
DC 12 to 30 V
Power Consumption
0.5 W (Max)
Indicator Light
LED
Detection Mode
Pyroelectric Infrared Receiver
Installation Method
Recessed Ceiling Mount
Mounting Height
2.0 to 4.0 m
Detection Angle
360°
Detection Range
When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m
Delay Time
1 to 3,600 seconds
Product Size
Φ43 mm × 25 mm
Cutout Size
Φ35 mm
Product Weight
14.5 g
Cable Assembly
UL1007 22AWG Cable Length: 150 mm
Operating Temperature
Indoor -20 to 45°C
Operating Humidity
< 95% RH (Non-condensing)
Storage Temperature
-40 to 85°C
Protection Level
IP20
Housing Material
PC
Range

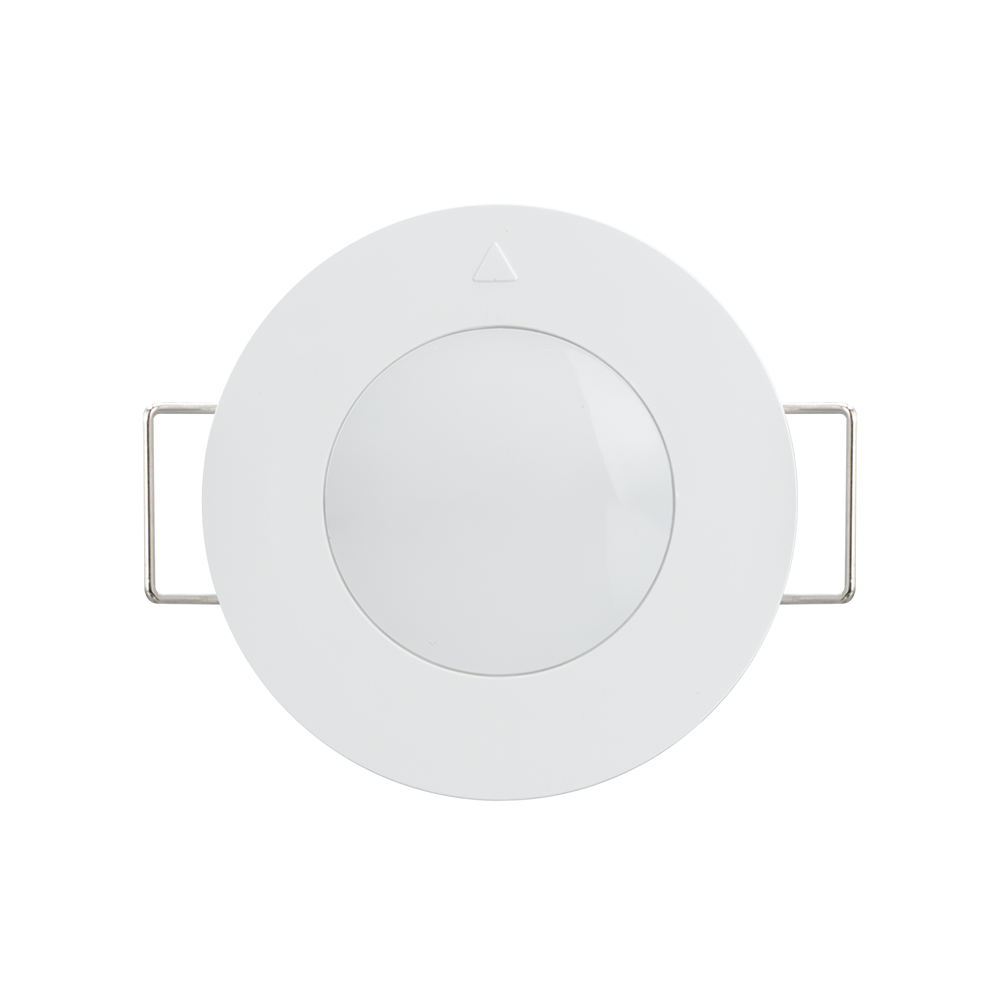

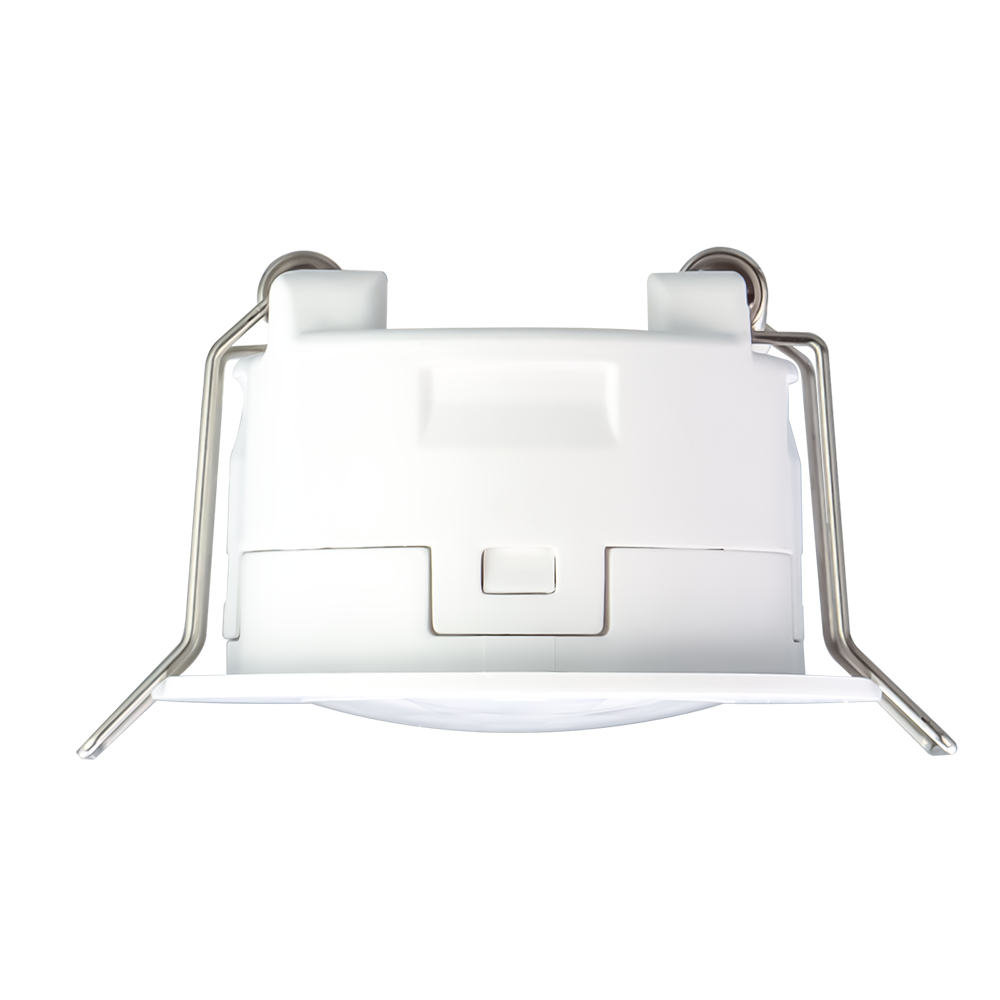

Front View

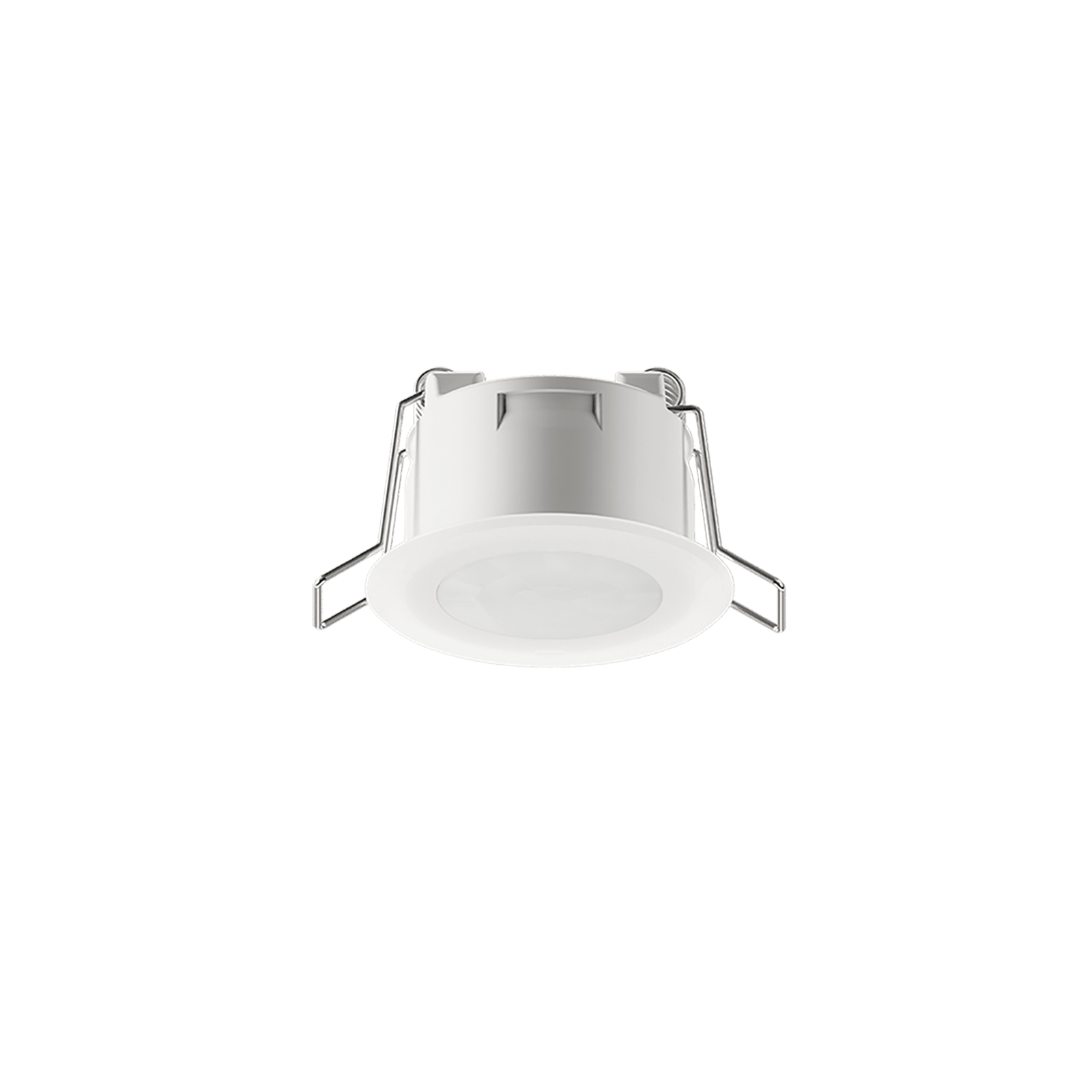

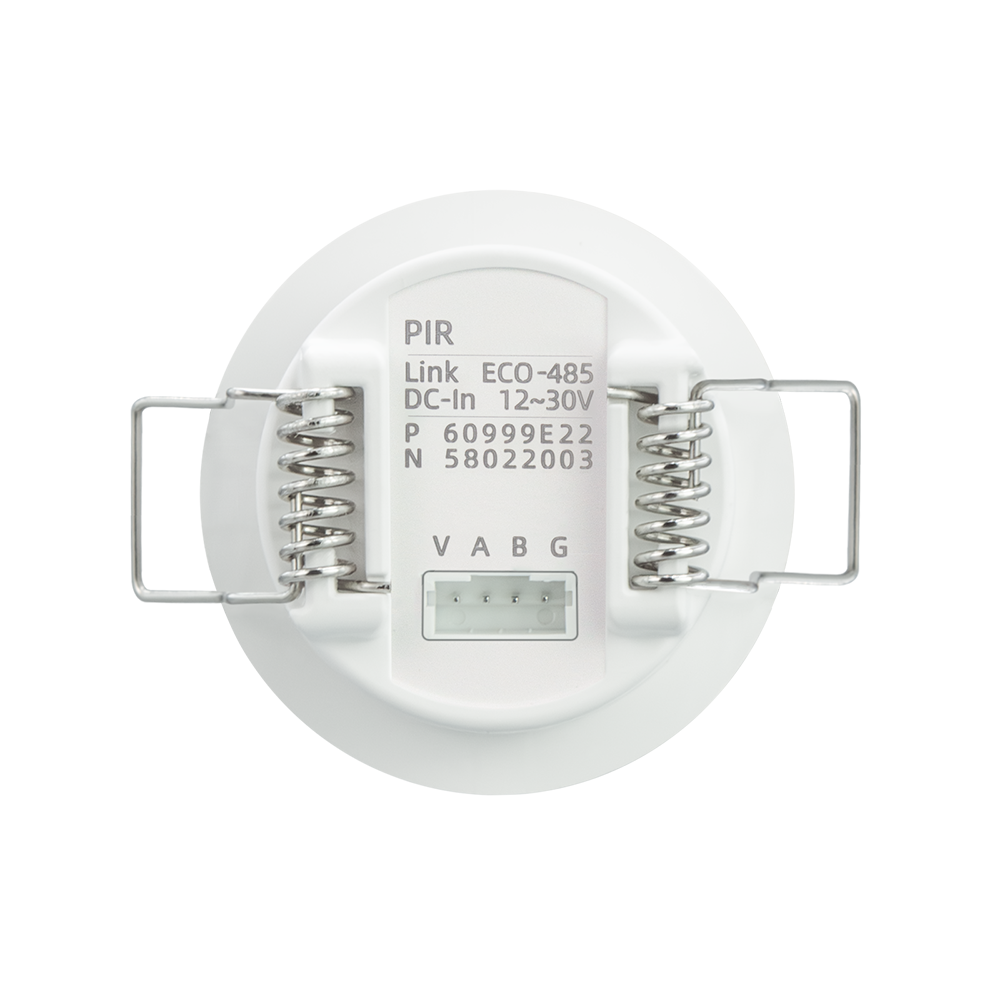

Top View
Dimensions
The product features an outer diameter of 43 mm and a depth of 25 mm, requiring a 35 mm cutout. Designed for recessed installation, it is also compatible with optional kits for surface mounting, wall mounting, or external installation via a universal bracket.
Product Dimensions
Applications
Hotel
Mounting
Interference Avoidance: Avoid installing near moving objects (e.g., pets, swinging curtains) or areas with rapid temperature changes (e.g., AC vents, heat sources) to ensure accuracy and prevent false alarms.
Mounting & Handling: Ensure the installation surface is firm and stable to avoid vibration. Handle the device with care during unpacking and installation to prevent physical damage to the shell or circuit board.
Wiring Safety: Disconnect power before wiring. Use certified cables and strictly follow the diagram to ensure proper circuit protection.
Packaging Disposal: Dispose of packaging materials safely and immediately according to local regulations.
Disclaimer: Product specifications are subject to change without prior notice. Please strictly follow these guidelines; the manufacturer is not liable for performance issues or interference caused by improper installation.
Wiring Diagram
Debugging
IR Remote Control
Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.
Control4 - Composer Pro
Control4 Composer Pro is a professional-grade integration software for luxury whole-home audio/video and automation systems, exclusively available to certified dealers to seamlessly integrate entertainment hubs, complex subsystems, and custom smart scenes.
FAQ
What communication protocol does the ECO-PIR-485 use?
The ECO-PIR-485 communicates via RS485.
What power supply does the ECO-PIR-485 require?
The ECO-PIR-485 is powered by DC 12 to 30 V. Power Consumption: 0.5 W (Max).
How is the ECO-PIR-485 installed?
Installation method: Recessed Ceiling Mount. Mounting height: 2.0 to 4.0 m.
What is the detection coverage of the ECO-PIR-485?
Detection range: When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m. Detection angle: 360°.
How is the ECO-PIR-485 configured on site?
The ECO-PIR-485 supports quick on-site configuration and parameter reading with an infrared (IR) remote control, so commissioning and maintenance do not depend on a smart home platform. Supported platform: Control4 - Composer Pro.
