The CTL-SEN-Mini/1215 is a professional-grade precision motion sensor utilizing advanced Passive Infrared (PIR) technology. This model features a narrow 20° beam detection range, enabling targeted occupancy monitoring in specific zones—such as doorways, windows, or narrow corridors—while completely ignoring activity in adjacent areas. Supporting the IEC 62386-103 protocol, it offers seamless integration into DALI lighting ecosystems. Designed for discreet architectural installation with a compact Φ35mm cutout, it includes a built-in 0–32,000 Lux sensor for precise daylight harvesting. Configurable via DALI-Config software or IR remote, it provides a high-performance, energy-efficient solution for premium lighting automation.
Features
Equipped with PIR motion detection.
Integrated high-precision sensor for accurate indoor illuminance monitoring.
Native support for the IEC 62386-103 protocol for professional lighting control systems.
Adjustable lighting threshold.
Supports parameter configuration and status readout via IR remote control.
Indicator LED brightness automatically adjusts to ambient light levels.
Specifications
Protocol
DALI (IEC 62386-103)
Input Voltage
DC 9 to 22 V (via DALI Bus)
Power Consumption
0.5 W (Max)
Address Range
00 to 63 (Decimal)
Indicator Light
LED
Detection Mode
Pyroelectric Infrared Receiver
Installation Method
Recessed Ceiling Mount
Mounting Height
2.0 to 3.2 m
Detection Angle
20°
Detection Range
When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m
Illuminance Monitoring
0 to 32,000 Lux (Accuracy ±4%)
Delay Time
1 to 3,600 seconds
Product Size
Φ43 mm × 25 mm
Cutout Size
Φ35 mm
Product Weight
14.5 g
Cable Assembly
UL1007 22AWG Cable Length: 150 mm
Operating Temperature
Indoor -20 to 45°C
Operating Humidity
< 95% RH (Non-condensing)
Storage Temperature
-40 to 85°C
Protection Level
IP20
Housing Material
PC
Range
Engineered with directional narrow-beam detection characteristics, this PIR curtain motion sensor features a long-axis detection angle of 90° and a short-axis (thickness) detection angle of 20°. At a standard mounting height of 3.0 meters, it delivers a bottom detection width of approximately 0.9 meters along the short axis and a maximum coverage span of up to 6.0 meters along the long axis.

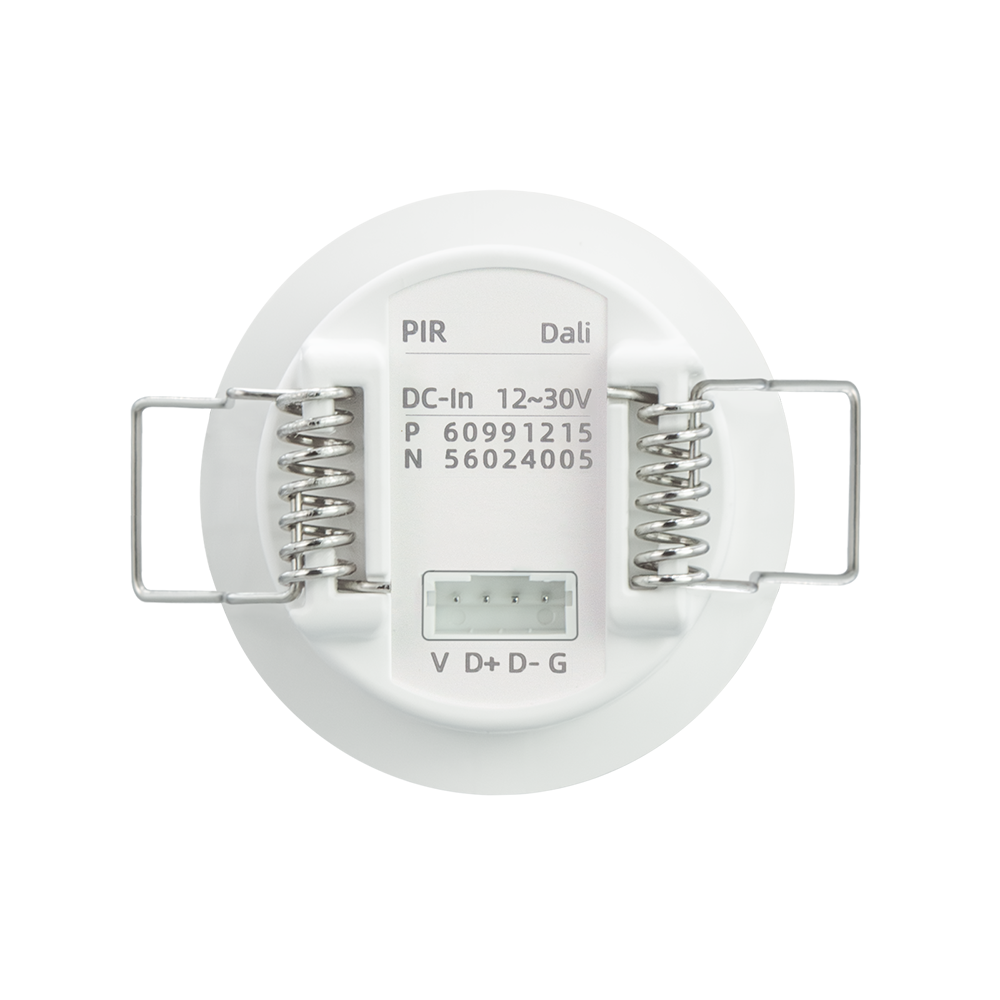

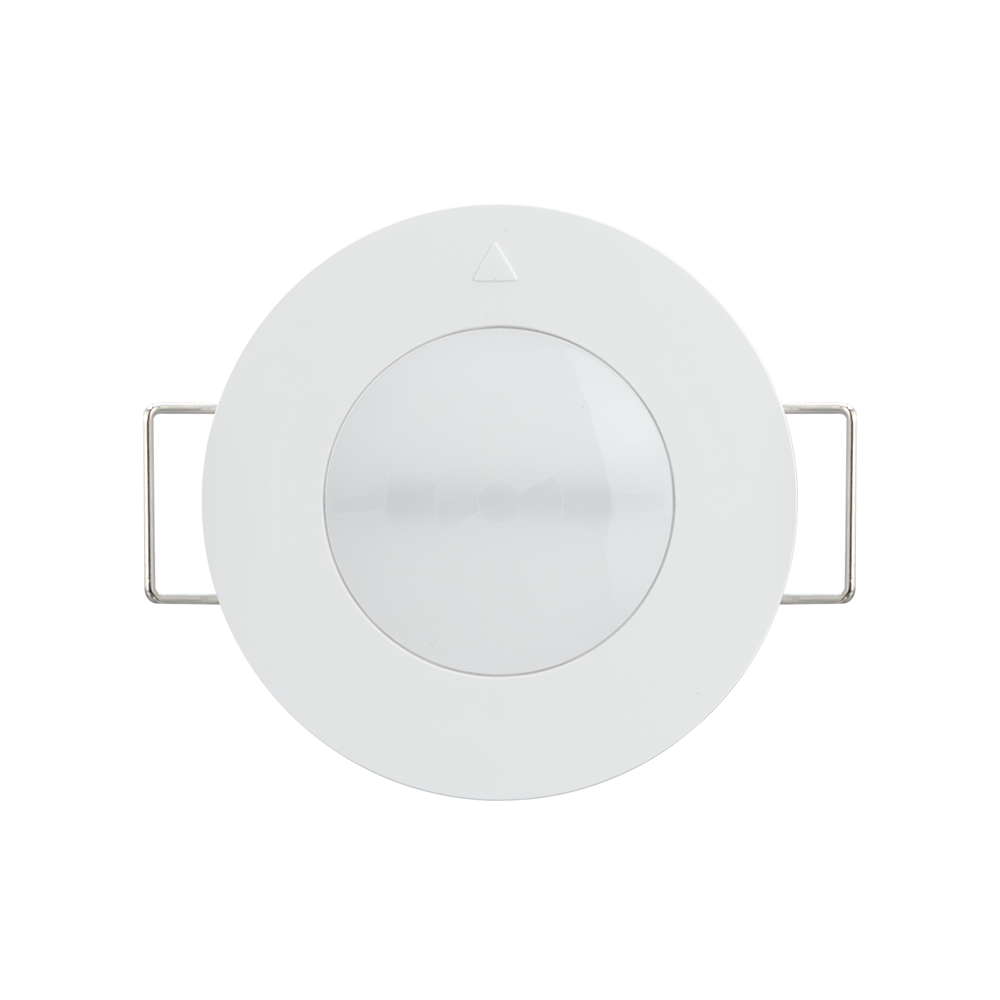

Front View

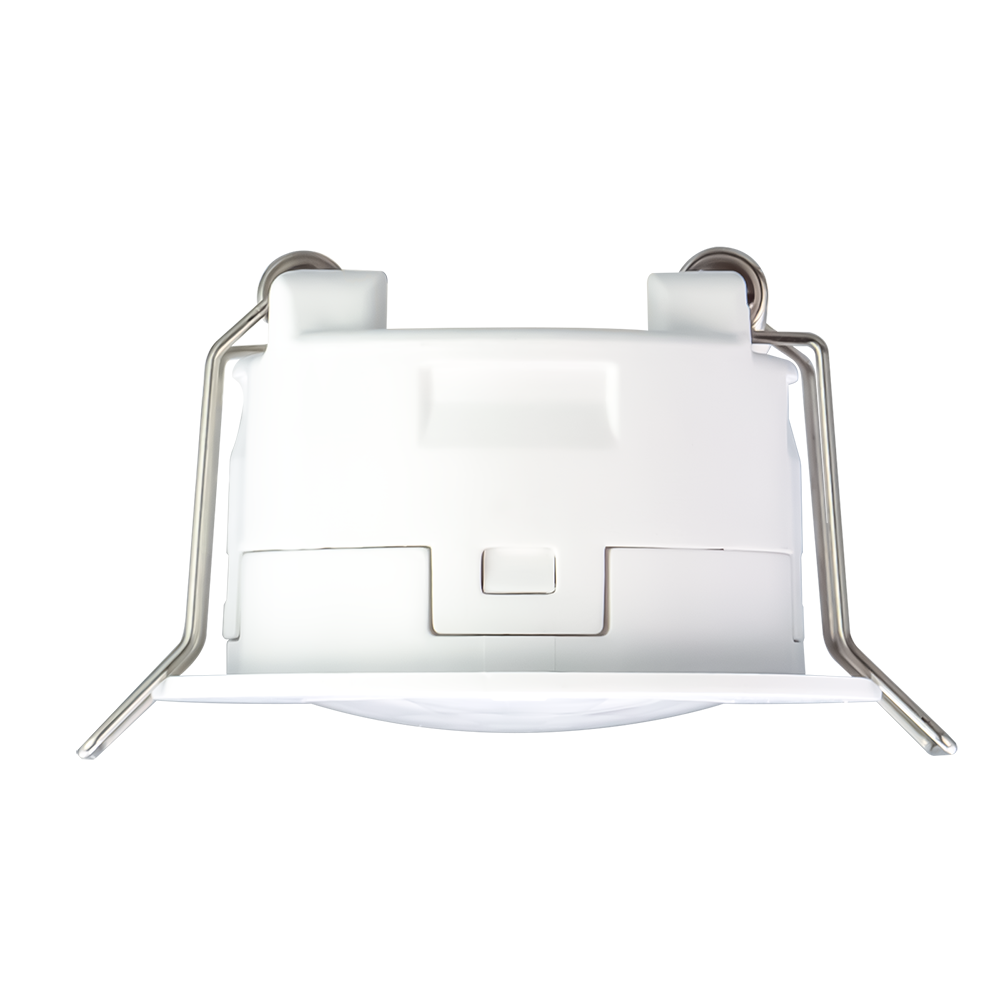

Side View
Dimensions
The product features an outer diameter of 43 mm and a depth of 25 mm, requiring a 35 mm cutout. Designed for recessed installation, it is also compatible with optional kits for surface mounting, wall mounting, or external installation via a universal bracket.

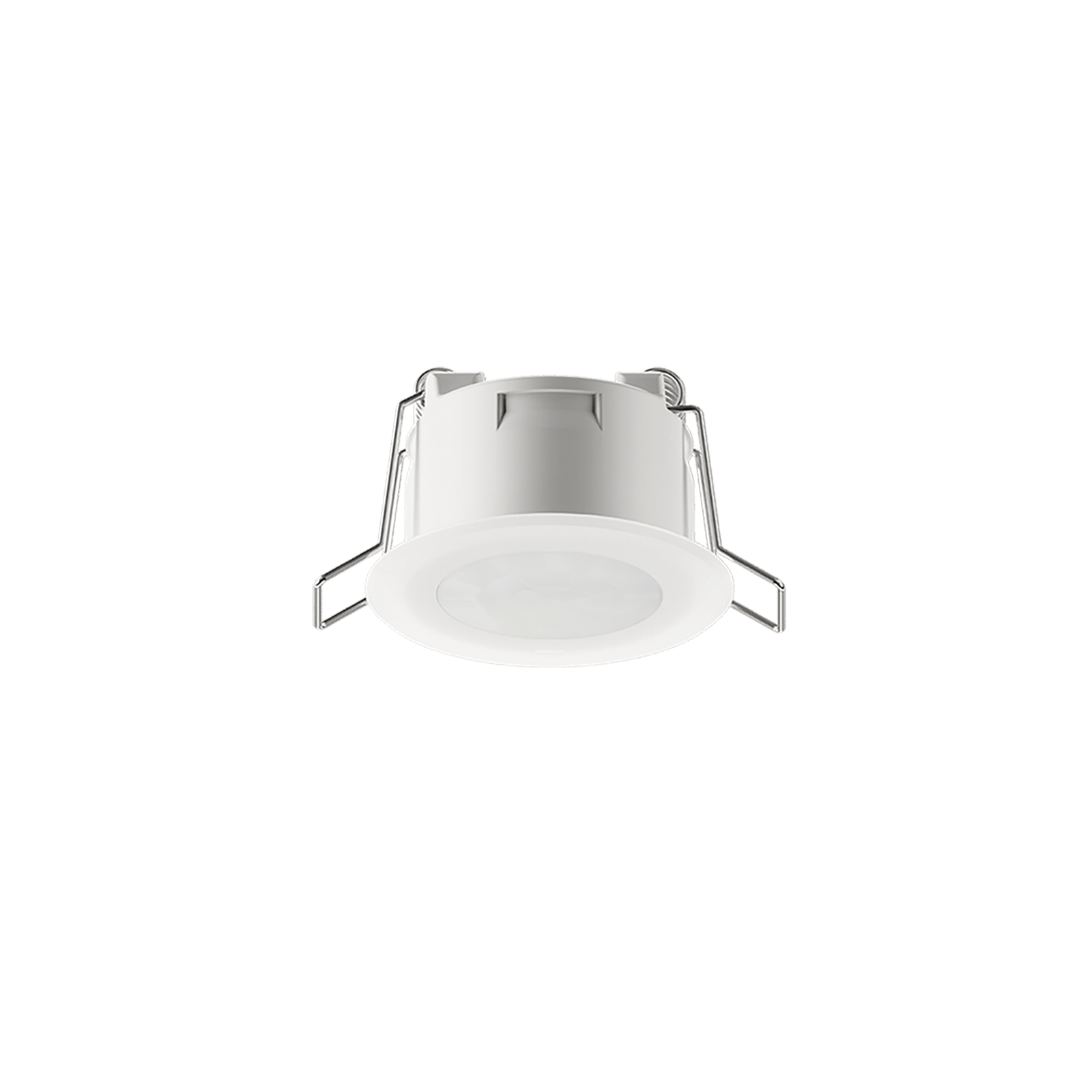

Product Dimensions
Applications
HomeHotelLightingOfficeSecurity
Mounting
Interference Avoidance: Avoid installing near moving objects (e.g., pets, swinging curtains) or areas with rapid temperature changes (e.g., AC vents, heat sources) to ensure accuracy and prevent false alarms.
Mounting & Handling: Ensure the installation surface is firm and stable to avoid vibration. Handle the device with care during unpacking and installation to prevent physical damage to the shell or circuit board.
Wiring Safety: Disconnect power before wiring. Use certified cables and strictly follow the diagram to ensure proper circuit protection.
Packaging Disposal: Dispose of packaging materials safely and immediately according to local regulations.
Disclaimer: Product specifications are subject to change without prior notice. Please strictly follow these guidelines; the manufacturer is not liable for performance issues or interference caused by improper installation.
Wiring Diagram
Debugging
IR Remote Control
Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.
FAQ
What communication protocol does the Mini-PIR-DALI/STD/20 use?
The Mini-PIR-DALI/STD/20 communicates via DALI (IEC 62386-103).
What power supply does the Mini-PIR-DALI/STD/20 require?
The Mini-PIR-DALI/STD/20 is powered by DC 9 to 22 V (via DALI Bus). Power Consumption: 0.5 W (Max).
How is the Mini-PIR-DALI/STD/20 installed?
Installation method: Recessed Ceiling Mount. Mounting height: 2.0 to 3.2 m.
What is the detection coverage of the Mini-PIR-DALI/STD/20?
Detection range: When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m. Detection angle: 20°.
How is the Mini-PIR-DALI/STD/20 configured on site?
The Mini-PIR-DALI/STD/20 supports quick on-site configuration and parameter reading with an infrared (IR) remote control, so commissioning and maintenance do not depend on a smart home platform.
