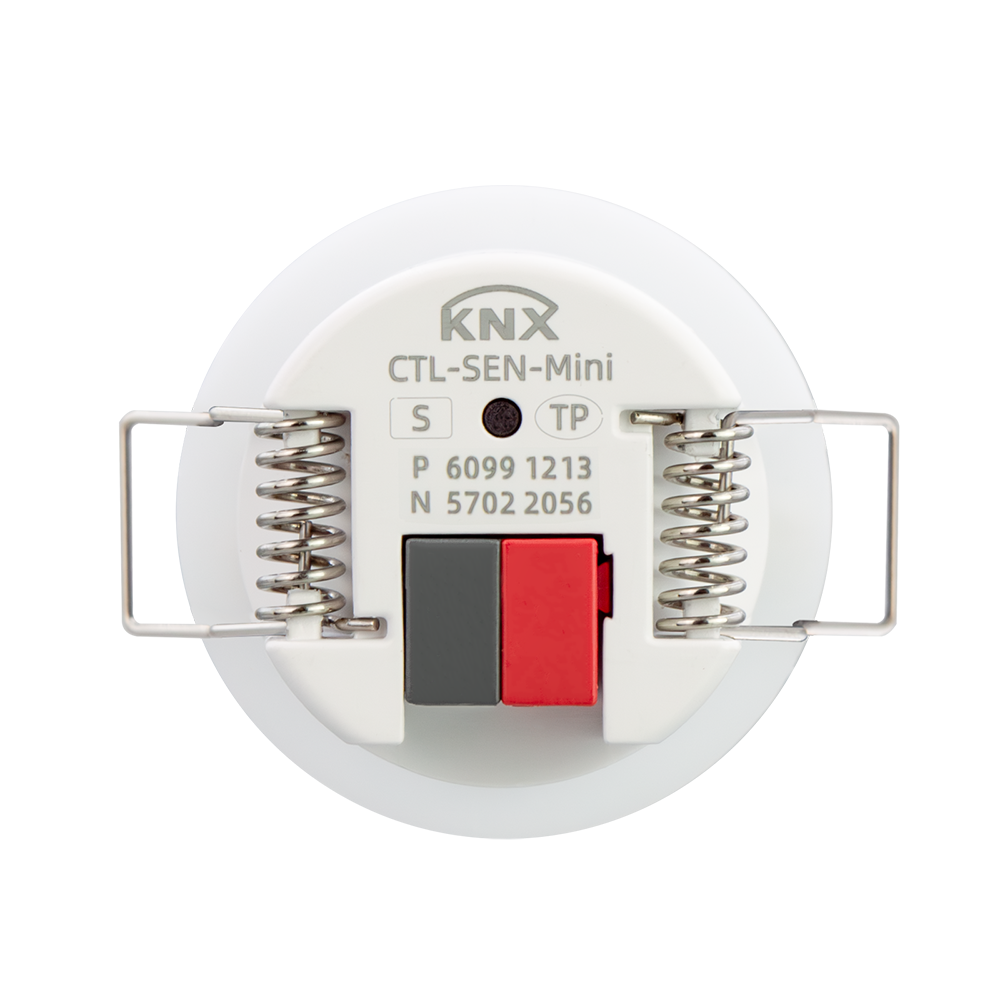

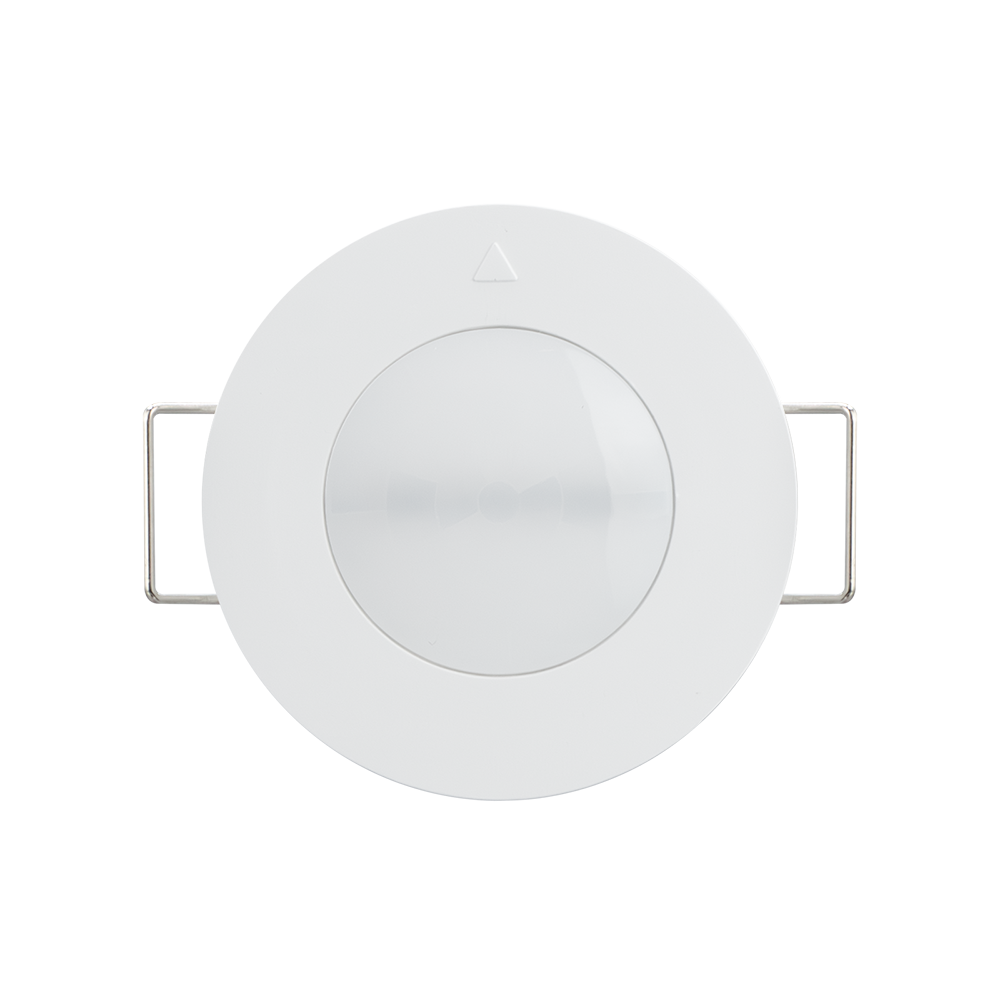

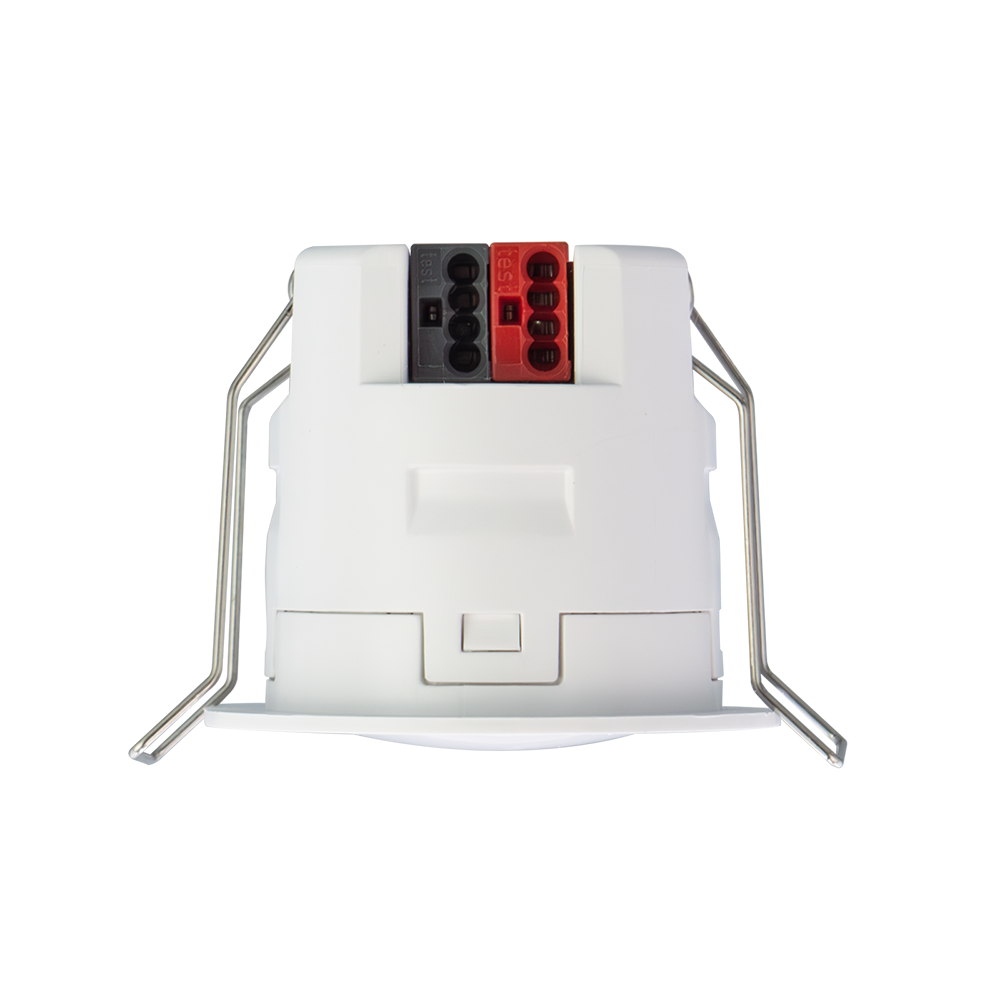

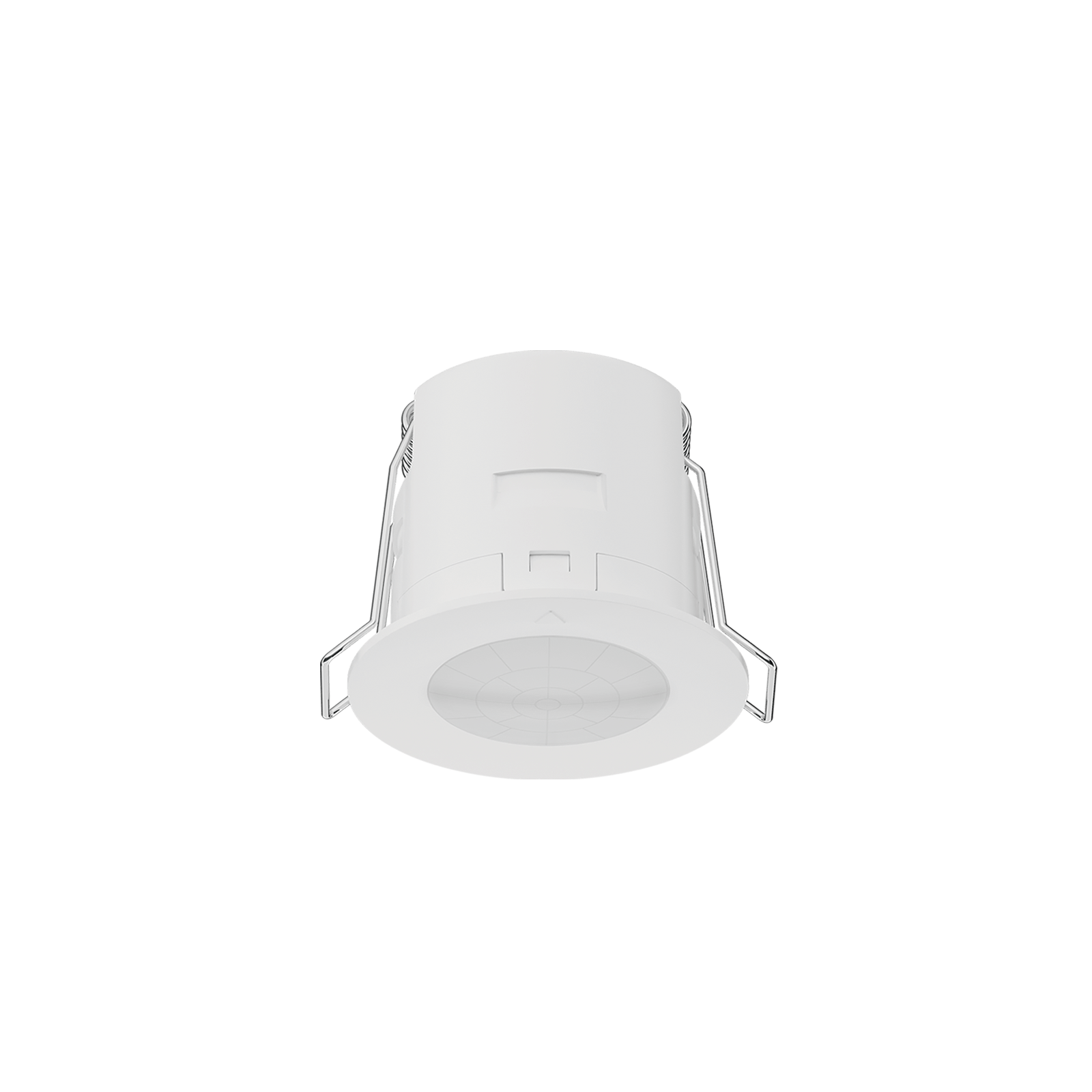

Mini PIR Curtain Motion Sensor (KNX)

No.Mini-PIR-KNX/20
P/N:
The CTL-SEN-Mini/1213 Series is a compact, high-sensitivity motion sensor powered by precise Passive Infrared (PIR) technology.
$157.00 $39.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    White
    Black
    Please select the information you wantX
Quantity:
-
+
  • Mini PIR Curtain Motion Sensor (KNX)
  • Mini PIR Curtain Motion Sensor (KNX)
  • Mini PIR Curtain Motion Sensor (KNX)
  • Mini PIR Curtain Motion Sensor (KNX)
  • Mini PIR Curtain Motion Sensor (KNX)
  • Mini PIR Curtain Motion Sensor (KNX)
  • Mini PIR Curtain Motion Sensor (KNX)
  • Mini PIR Curtain Motion Sensor (KNX)
1/1
  • Mini PIR Curtain Motion Sensor (KNX)
  • Mini PIR Curtain Motion Sensor (KNX)
  • Mini PIR Curtain Motion Sensor (KNX)
  • Mini PIR Curtain Motion Sensor (KNX)
  • Description
  • Resources

Overview

The CTL-SEN-Mini/1213 Series is a compact, high-sensitivity motion sensor powered by precise Passive Infrared (PIR) technology. Designed for discreet, premium applications, it features a miniature form factor (Φ35 mm cutout) while offering a 360° detection diameter of up to 6.0 m. It integrates a high-precision lux sensor (0–32,000 Lux) for energy-efficient lighting automation.

Features

  • Equipped with PIR motion detection.
  • Quad-element PIR technology enhances radial movement detection and minimizes blind spots.
  • Integrated high-precision sensor for accurate indoor illuminance monitoring.
  • Supports 4 independent channels for lighting control.
  • Supports multiple operating modes, including Fully Automatic, Semi-Automatic, Master/Slave, and Day/Night.
  • Supports parameter configuration and status readout via IR remote control.
  • Built-in logic functions with support for manual mode and independent event outputs.
  • Supports external inputs to dynamically modify parameter characteristics.
  • Offers selectable Easy (quick start) and Advanced (multi-channel output) modes.

Specifications

Communication Type KNX TP
Input Voltage DC 21 to 30 V
Operating Current ≤ 10 mA
Indicator Light LED
Detection Mode Pyroelectric Infrared Receiver
Installation Method Recessed Ceiling Mount
Mounting Height 2.0 to 3.2 m
Detection Angle 20°
Detection Range When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m
Illuminance Monitoring 0 to 32,000 Lux (Accuracy ±4%)
Delay Time 1 to 3,600 seconds
Product Size Φ43 mm × 35 mm
Cutout Size Φ35 mm
Product Weight 24.5 g
Bus Terminal Red / Black
Programming button Physical Address Assignment
Bus Connection Φ0.6 to 0.8 mm
Operating Environment Indoor -20 to 45°C
Humidity < 95% RH (Non-condensing)
Storage Temperature -40 to 85°C
Protection Level IP20
Housing Material PC

Range

Engineered with directional narrow-beam detection characteristics, this PIR curtain motion sensor features a long-axis detection angle of 90° and a short-axis (thickness) detection angle of 20°. At a standard mounting height of 3.0 meters, it delivers a bottom detection width of approximately 0.9 meters along the short axis and a maximum coverage span of up to 6.0 meters along the long axis.

Mini-PIR-KNX/20 detection range, Front View
Front View
Mini-PIR-KNX/20 detection range, Side View
Side View

Dimensions

The product features an outer diameter of 43 mm and a depth of 35 mm, requiring a 35 mm cutout. Designed for recessed installation, it is also compatible with optional kits for surface mounting, wall mounting, or external installation via a universal bracket.

Product Dimensions
Product Dimensions

Applications

Mini-PIR-KNX/20 application: Home
Home
Mini-PIR-KNX/20 application: Hotel
Hotel
Mini-PIR-KNX/20 application: Lighting
Lighting
Mini-PIR-KNX/20 application: Office
Office
Mini-PIR-KNX/20 application: Security
Security

Mounting

Interference Avoidance: Avoid installing near moving objects (e.g., pets, swinging curtains) or areas with rapid temperature changes (e.g., AC vents, heat sources) to ensure accuracy and prevent false alarms.

Mounting & Handling: Ensure the installation surface is firm and stable to avoid vibration. Handle the device with care during unpacking and installation to prevent physical damage to the shell or circuit board.

Wiring Safety: Disconnect power before wiring. Use certified cables and strictly follow the diagram to ensure proper circuit protection.

Packaging Disposal: Dispose of packaging materials safely and immediately according to local regulations.

Disclaimer: Product specifications are subject to change without prior notice. Please strictly follow these guidelines; the manufacturer is not liable for performance issues or interference caused by improper installation.

Mini-PIR-KNX/20 wiring diagram
Wiring Diagram

Debugging

IR Remote Control
IR Remote Control

Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.

ETS (Engineering Tool Software)
ETS (Engineering Tool Software)

ETS is the only official commissioning and programming software for the KNX wired smart home standard, used by professional engineers to configure wired systems in luxury homes and commercial buildings without relying on the cloud, ensuring ultimate stability and security.

FAQ

What communication protocol does the Mini-PIR-KNX/20 use?

The Mini-PIR-KNX/20 communicates via KNX TP.

What power supply does the Mini-PIR-KNX/20 require?

The Mini-PIR-KNX/20 is powered by DC 21 to 30 V. Operating Current: ≤ 10 mA.

How is the Mini-PIR-KNX/20 installed?

Installation method: Recessed Ceiling Mount. Mounting height: 2.0 to 3.2 m.

What is the detection coverage of the Mini-PIR-KNX/20?

Detection range: When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m. Detection angle: 20°.

How is the Mini-PIR-KNX/20 configured on site?

The Mini-PIR-KNX/20 supports quick on-site configuration and parameter reading with an infrared (IR) remote control, so commissioning and maintenance do not depend on a smart home platform. Supported platform: ETS (Engineering Tool Software).

Resources

Available Accessories

Remote Controller
Remote Controller P/N: 60.99.00C1

Model: Accessory (RC1)

Mini Accessory Cover Ring
Mini Accessory Cover Ring P/N: 60.99.0A55

Model: A55 (Mini-ASSY-55)

Mini Accessory In-wall Mounting 86 Panel Frame
Mini Accessory In-wall Mounting 86 Panel Frame P/N: 60.99.0A86

Model: A86 (Mini-ASSY-86)

Mini Accessory Borderless Embeded Parts
Mini Accessory Borderless Embeded Parts P/N: 60.99.0A40

Model: A40 (Mini-ASSY-BL)

Mini Accessory Surface Mounting Socket
Mini Accessory Surface Mounting Socket P/N: 60.99.0A50

Model: A50 (Mini-ASSY-CYL)

Mini Accessory Surface Mounting Universal Bracket
Mini Accessory Surface Mounting Universal Bracket P/N: 60.99.A360

Model: A360 (Mini-ASSY-360)
