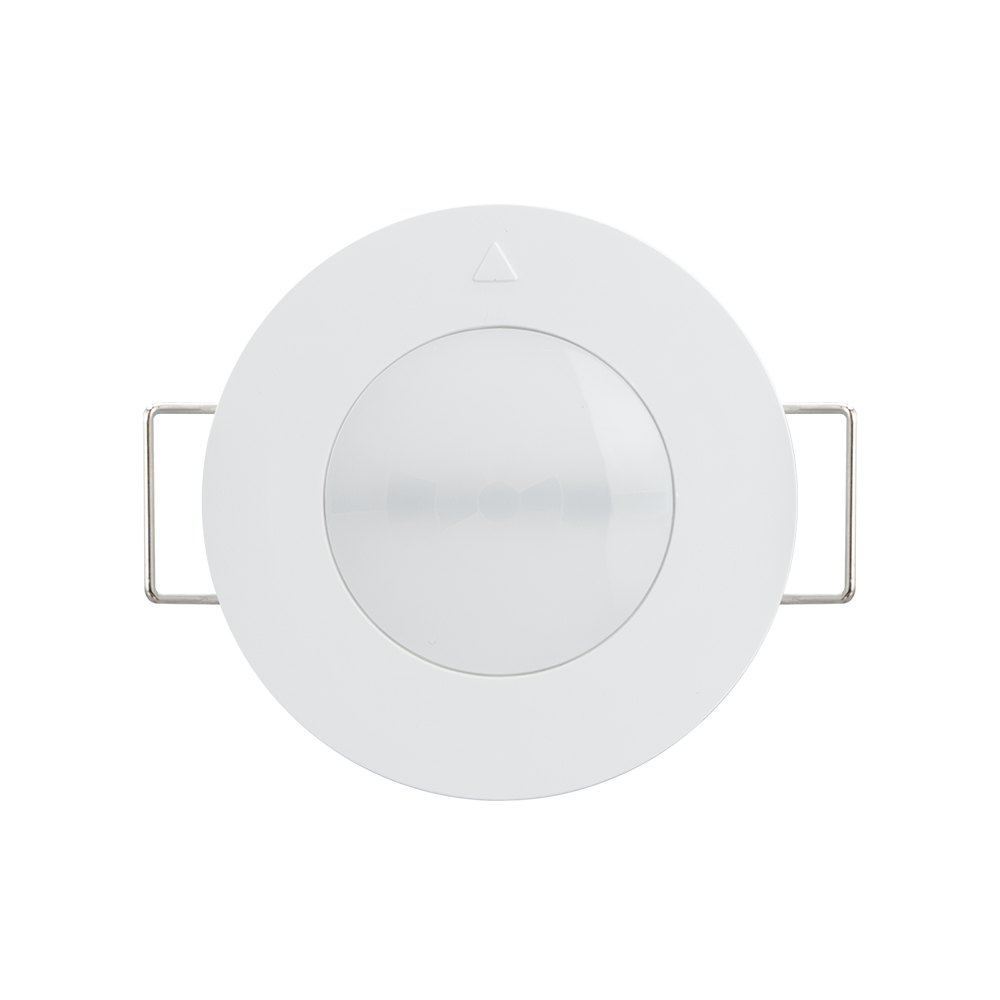

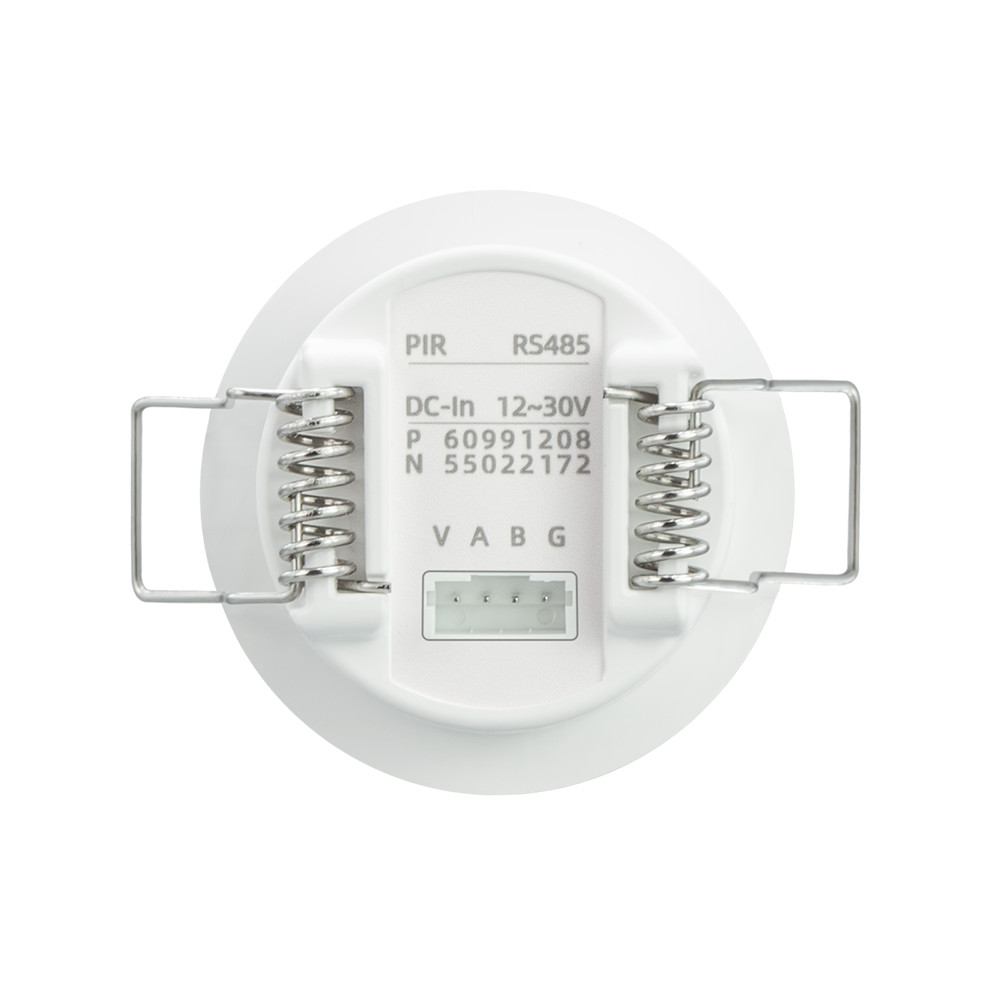

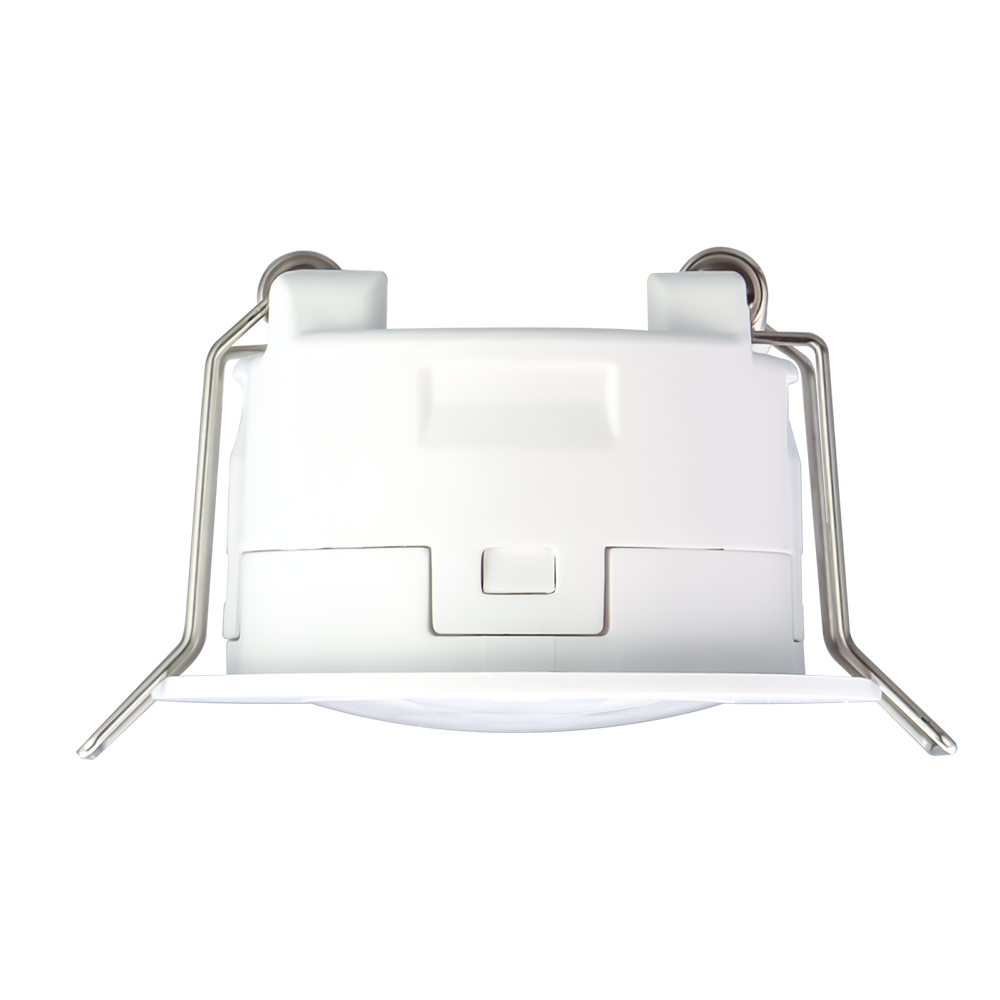

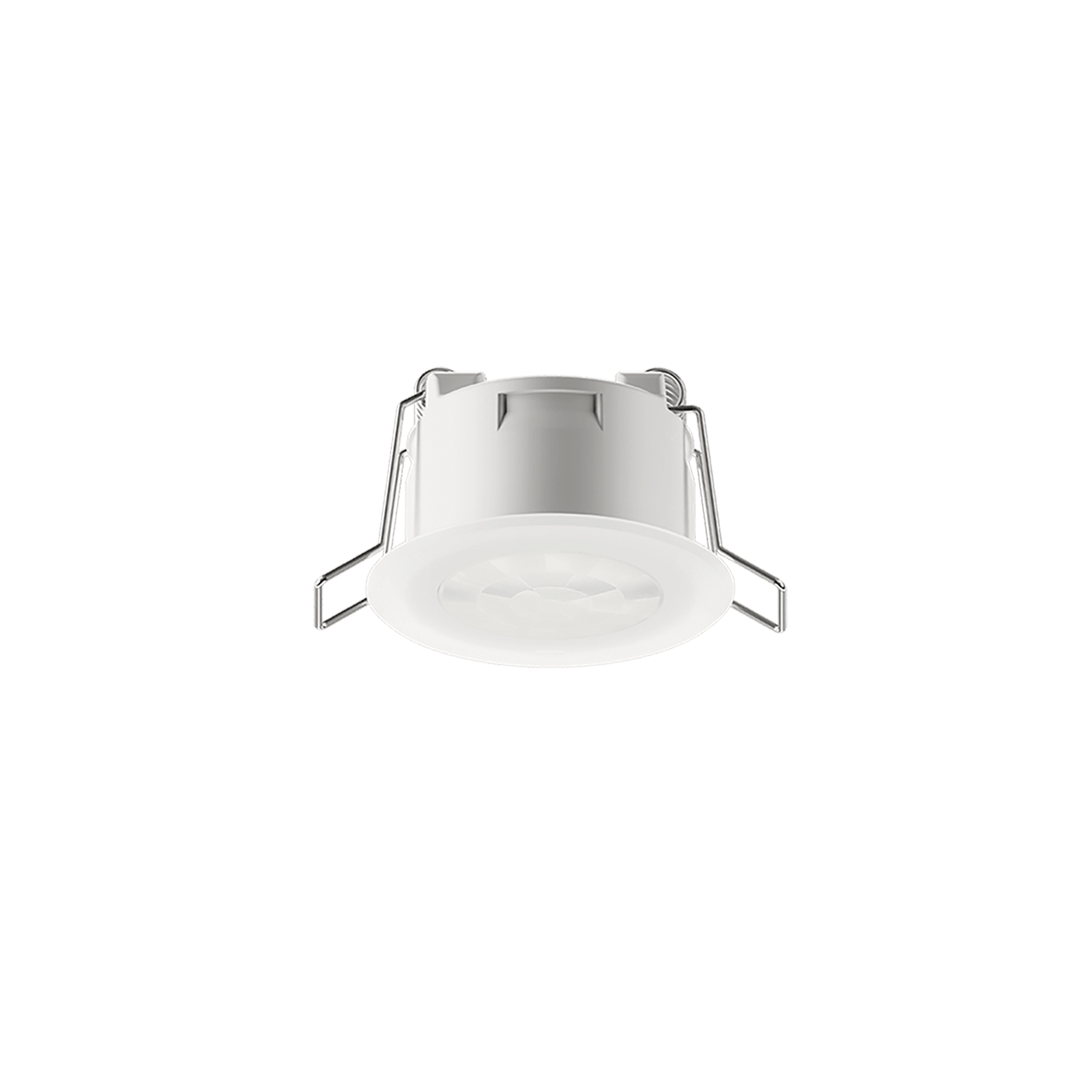

Mini PIR Curtain Motion Sensor (RS485)

No.Mini-PIR-485/20
P/N:
The CTL-SEN-Mini Curtain Series is a specialized precision motion sensor designed for focused area monitoring.
$62.70 $15.70
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    White
    Black
    Please select the information you wantX
Quantity:
-
+
  • Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (RS485)
1/1
  • Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (RS485)
  • Mini PIR Curtain Motion Sensor (RS485),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (RS485)
  • Description
  • Resources

Overview

The CTL-SEN-Mini Curtain Series is a specialized precision motion sensor designed for focused area monitoring. Building on advanced Passive Infrared (PIR) technology, it incorporates a precision optical shield that limits the detection field to a narrow 20° beam. This creates an invisible "electronic curtain," enabling the sensor to detect movement only within a specific slice of space—such as a doorway, window, or narrow corridor—while completely ignoring activity in adjacent areas. It retains the series' signature compact design and integrates a high-precision lux sensor (0–32,000 Lux) for intelligent, energy-efficient control.

Features

  • Equipped with PIR motion detection.
  • Integrated high-precision sensor for accurate indoor illuminance monitoring.
  • 2 illuminance outputs
  • Supports multiple protocols via RS485, including Modbus-RTU and Active Reporting.
  • Adjustable lighting threshold.
  • Supports parameter configuration and status readout via IR remote control.
  • Indicator LED brightness automatically adjusts to ambient light levels.

Specifications

Communication Type RS485
Input Voltage DC 12 to 30 V
Power Consumption 0.5 W (Max)
Serial Port Settings Baud Rate: 1200 to 115200
Data Bits: 8
Parity: None, Even, Odd
Stop Bits: 1, 2
Default: 9600, 8, None, 1
Address Range 01 to 99 (Decimal)
Indicator Light LED
Detection Mode Pyroelectric Infrared Receiver
Installation Method Recessed Ceiling Mount
Mounting Height 2.0 to 3.2 m
Detection Angle 20°
Detection Range When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m
Illuminance Monitoring 0 to 32,000 Lux (Accuracy ±4%)
Delay Time 1 to 3,600 seconds
Product Size Φ43 mm × 25 mm
Cutout Size Φ35 mm
Product Weight 14.5 g
Cable Assembly UL1007 22AWG
Cable Length: 150 mm
Operating Environment Indoor -20 to 45°C
Humidity < 95% RH (Non-condensing)
Storage Temperature -40 to 85°C
Protection Level IP20
Housing Material PC

Range

Engineered with directional narrow-beam detection characteristics, this PIR curtain motion sensor features a long-axis detection angle of 90° and a short-axis (thickness) detection angle of 20°. At a standard mounting height of 3.0 meters, it delivers a bottom detection width of approximately 0.9 meters along the short axis and a maximum coverage span of up to 6.0 meters along the long axis.

Mini-PIR-485/20 detection range, Front View
Front View
Mini-PIR-485/20 detection range, Side View
Side View

Dimensions

The product features an outer diameter of 43 mm and a depth of 25 mm, requiring a 35 mm cutout. Designed for recessed installation, it is also compatible with optional kits for surface mounting, wall mounting, or external installation via a universal bracket.

Product Dimensions
Product Dimensions

Applications

Mini-PIR-485/20 application: Home
Home
Mini-PIR-485/20 application: Hotel
Hotel
Mini-PIR-485/20 application: Lighting
Lighting
Mini-PIR-485/20 application: Office
Office
Mini-PIR-485/20 application: Security
Security

Mounting

Interference Avoidance: Avoid installing near moving objects (e.g., pets, swinging curtains) or areas with rapid temperature changes (e.g., AC vents, heat sources) to ensure accuracy and prevent false alarms.

Mounting & Handling: Ensure the installation surface is firm and stable to avoid vibration. Handle the device with care during unpacking and installation to prevent physical damage to the shell or circuit board.

Wiring Safety: Disconnect power before wiring. Use certified cables and strictly follow the diagram to ensure proper circuit protection.

Packaging Disposal: Dispose of packaging materials safely and immediately according to local regulations.

Disclaimer: Product specifications are subject to change without prior notice. Please strictly follow these guidelines; the manufacturer is not liable for performance issues or interference caused by improper installation.

Mini-PIR-485/20 wiring diagram
Wiring Diagram

Debugging

IR Remote Control
IR Remote Control

Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.

Control4 - Composer Pro
Control4 - Composer Pro

Control4 Composer Pro is a professional-grade integration software for luxury whole-home audio/video and automation systems, exclusively available to certified dealers to seamlessly integrate entertainment hubs, complex subsystems, and custom smart scenes.

FAQ

What communication protocol does the Mini-PIR-485/20 use?

The Mini-PIR-485/20 communicates via RS485.

What power supply does the Mini-PIR-485/20 require?

The Mini-PIR-485/20 is powered by DC 12 to 30 V. Power Consumption: 0.5 W (Max).

How is the Mini-PIR-485/20 installed?

Installation method: Recessed Ceiling Mount. Mounting height: 2.0 to 3.2 m.

What is the detection coverage of the Mini-PIR-485/20?

Detection range: When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m. Detection angle: 20°.

How is the Mini-PIR-485/20 configured on site?

The Mini-PIR-485/20 supports quick on-site configuration and parameter reading with an infrared (IR) remote control, so commissioning and maintenance do not depend on a smart home platform. Supported platform: Control4 - Composer Pro.

Resources

Available Accessories

Remote Controller
Remote Controller P/N: 60.99.00C1

Model: Accessory (RC1)

Mini Accessory Cover Ring
Mini Accessory Cover Ring P/N: 60.99.0A55

Model: A55 (Mini-ASSY-55)

Mini Accessory In-wall Mounting 86 Panel Frame
Mini Accessory In-wall Mounting 86 Panel Frame P/N: 60.99.0A86

Model: A86 (Mini-ASSY-86)

Mini Accessory Borderless Embeded Parts
Mini Accessory Borderless Embeded Parts P/N: 60.99.0A40

Model: A40 (Mini-ASSY-BL)

Mini Accessory Surface Mounting Socket
Mini Accessory Surface Mounting Socket P/N: 60.99.0A50

Model: A50 (Mini-ASSY-CYL)

Mini Accessory Surface Mounting Universal Bracket
Mini Accessory Surface Mounting Universal Bracket P/N: 60.99.A360

Model: A360 (Mini-ASSY-360)
