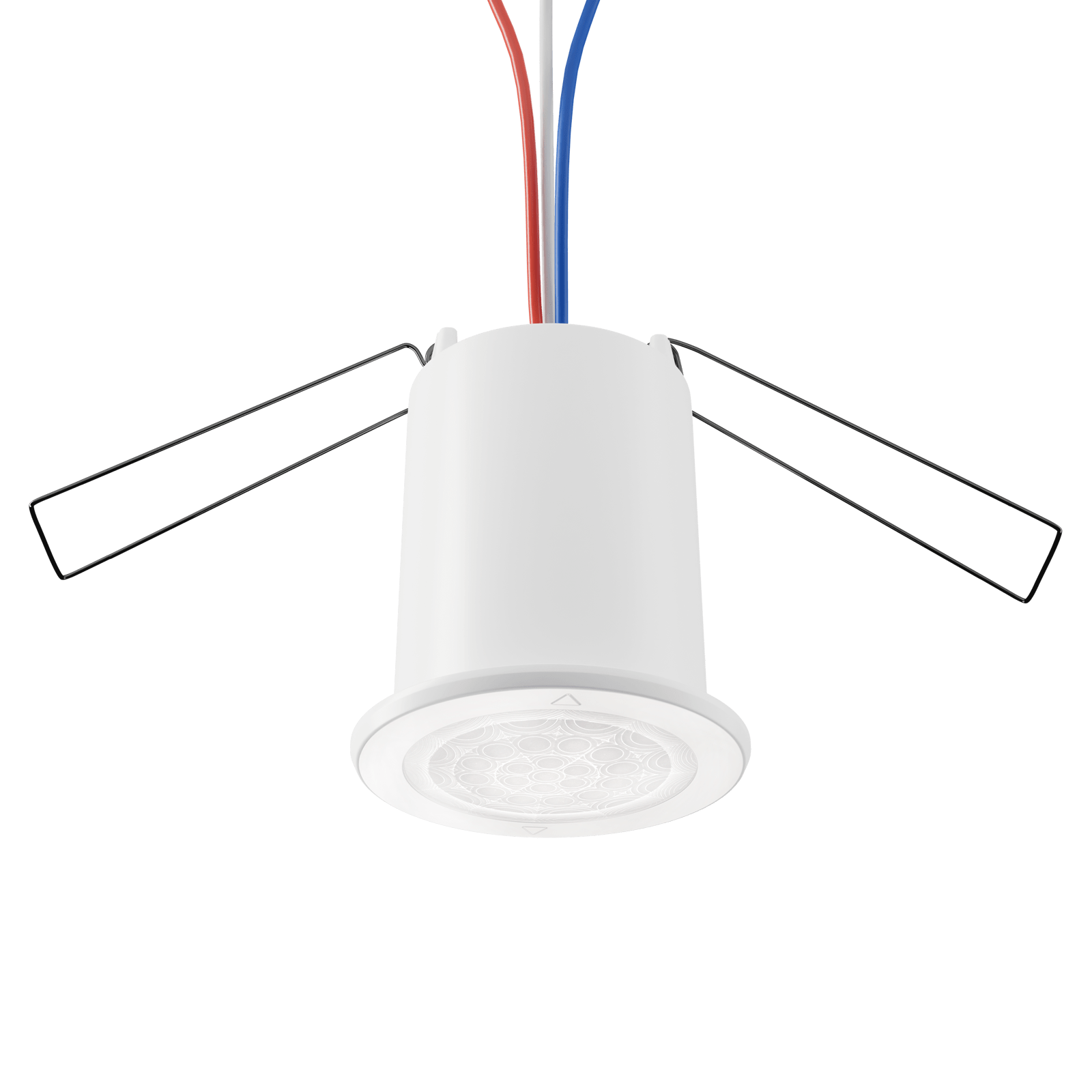

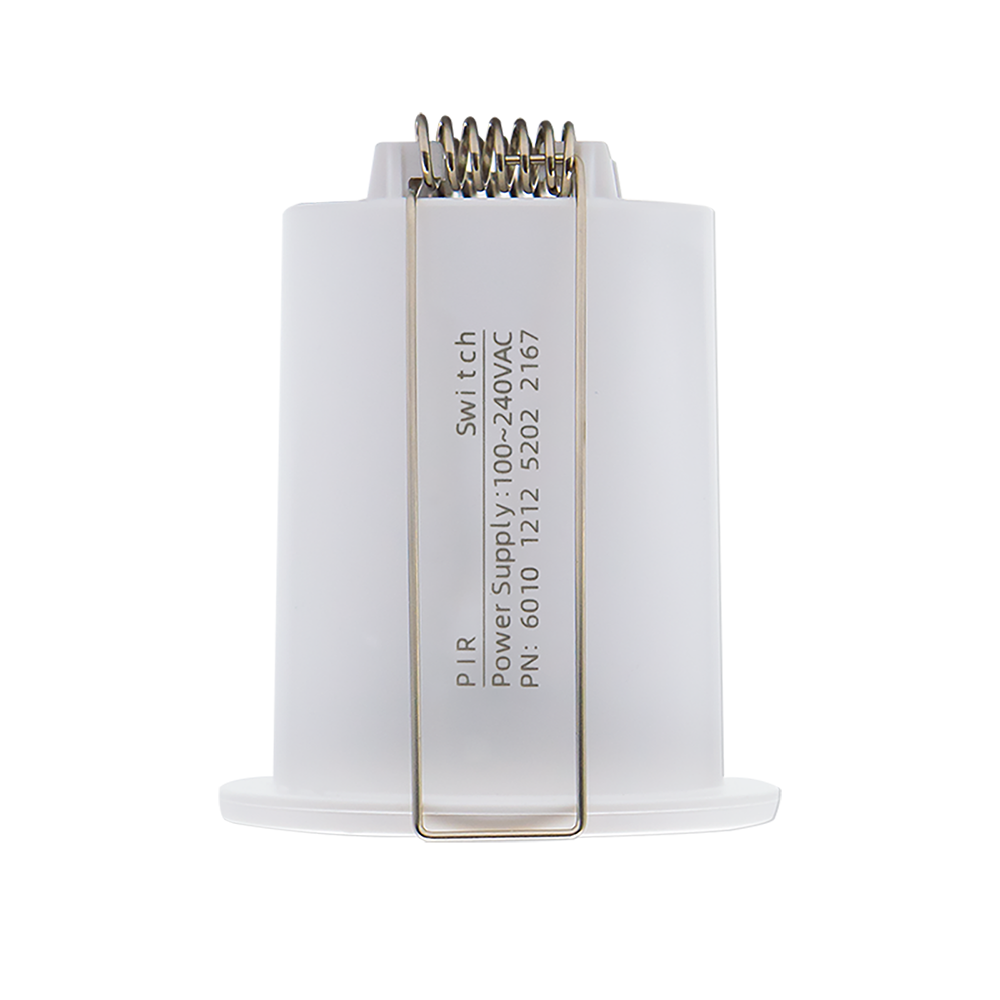

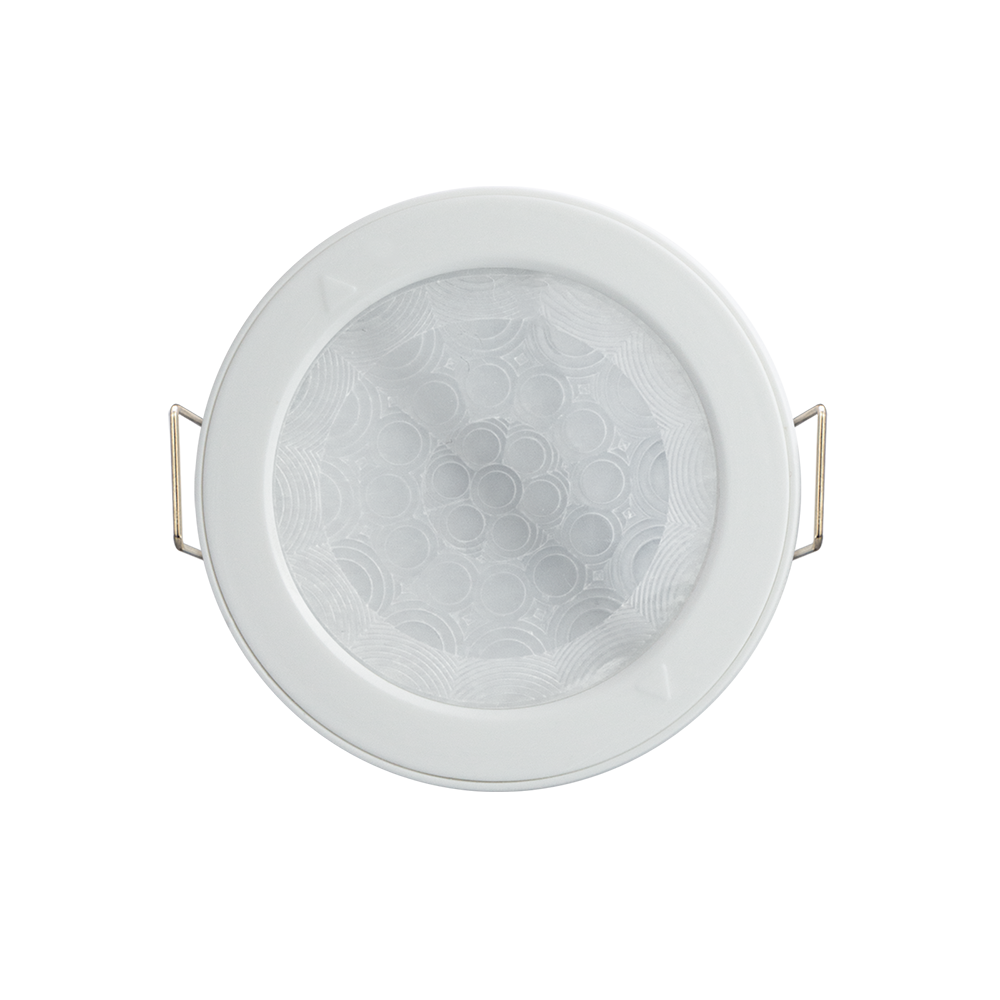

PIR Curtain Motion Sensor (Switch 300W)

No.R1-PIR-S1/20
P/N: 60.10.1212
The CTL-SEN-R1/1212 is a professional Passive Infrared (PIR) Curtain Motion Sensor powered by advanced pyroelectric sensing technology.
$20.70 $10.40
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
  • PIR Curtain Motion Sensor (Switch 300W)
  • PIR Curtain Motion Sensor (Switch 300W)
  • PIR Curtain Motion Sensor (Switch 300W)
  • PIR Curtain Motion Sensor (Switch 300W)
  • PIR Curtain Motion Sensor (Switch 300W)
  • PIR Curtain Motion Sensor (Switch 300W)
  • PIR Curtain Motion Sensor (Switch 300W)
  • PIR Curtain Motion Sensor (Switch 300W)
1/1
  • PIR Curtain Motion Sensor (Switch 300W)
  • PIR Curtain Motion Sensor (Switch 300W)
  • PIR Curtain Motion Sensor (Switch 300W)
  • PIR Curtain Motion Sensor (Switch 300W)
  • Description
  • Resources

Overview

The CTL-SEN-R1/1212 is a professional Passive Infrared (PIR) Curtain Motion Sensor powered by advanced pyroelectric sensing technology. Featuring a precision spherical lens design, it provides high-density coverage to accurately capture human movement within a focused 20° field of view. With a detection range of up to 6.0 meters and an integrated high-sensitivity illuminance sensor (0 to 32,000 Lux) , it is engineered to deliver intelligent, energy-efficient control for diverse smart building applications.

Features

  • Equipped with PIR motion detection.
  • Quad-element PIR technology enhances radial movement detection and minimizes blind spots.
  • Integrated high-precision sensor for accurate indoor illuminance monitoring.
  • Features 1 relay output
  • Adjustable lighting threshold.
  • Supports parameter configuration and status readout via IR remote control.
  • Indicator LED brightness automatically adjusts to ambient light levels.

Specifications

Output Type Mains Output
Input Voltage AC 100 to 240 V
Power Consumption 0.5 W (Max)
Relay Output Normally Open Mode
Normally Closed Mode
Relay Load AC 100 to 240 V, ≤ 2 A
Indicator Light LED
Detection Mode Pyroelectric Infrared Receiver
Installation Method Recessed Ceiling Mount
Mounting Height 2.0 to 3.2 m
Detection Angle 20°
Detection Range When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m
Illuminance Monitoring 0 to 32,000 Lux (Accuracy ±4%)
Delay Time 1 to 3,600 seconds
Product Size Φ50 mm × 60 mm
Cutout Size Φ42 mm
Product Weight 58.5 g
Cable Assembly UL1015 18AWG
Operating Environment Indoor -20 to 45°C
Humidity < 95% RH (Non-condensing)
Storage Temperature -40 to 85°C
Protection Level IP20
Housing Material PC

Range

Engineered with directional narrow-beam detection characteristics, this PIR curtain motion sensor features a long-axis detection angle of 90° and a short-axis (thickness) detection angle of 20°. At a standard mounting height of 3.0 meters, it delivers a bottom detection width of approximately 0.9 meters along the short axis and a maximum coverage span of up to 6.0 meters along the long axis.

R1-PIR-S1/20 detection range, Front View
Front View
R1-PIR-S1/20 detection range, Side View
Side View

Dimensions

Recessed mount, product outer diameter 50 mm, product depth 60 mm, cutout diameter 42 mm.

Product Dimensions
Product Dimensions

Applications

R1-PIR-S1/20 application: Home
Home
R1-PIR-S1/20 application: Hotel
Hotel
R1-PIR-S1/20 application: Lighting
Lighting
R1-PIR-S1/20 application: Office
Office
R1-PIR-S1/20 application: Security
Security

Mounting

Interference Avoidance: Avoid installing near moving objects (e.g., pets, swinging curtains) or areas with rapid temperature changes (e.g., AC vents, heat sources) to ensure accuracy and prevent false alarms.

Mounting & Handling: Ensure the installation surface is firm and stable to avoid vibration. Handle the device with care during unpacking and installation to prevent physical damage to the shell or circuit board.

Wiring Safety: Disconnect power before wiring. Use certified cables and strictly follow the diagram to ensure proper circuit protection.

Packaging Disposal: Dispose of packaging materials safely and immediately according to local regulations.

Disclaimer: Product specifications are subject to change without prior notice. Please strictly follow these guidelines; the manufacturer is not liable for performance issues or interference caused by improper installation.

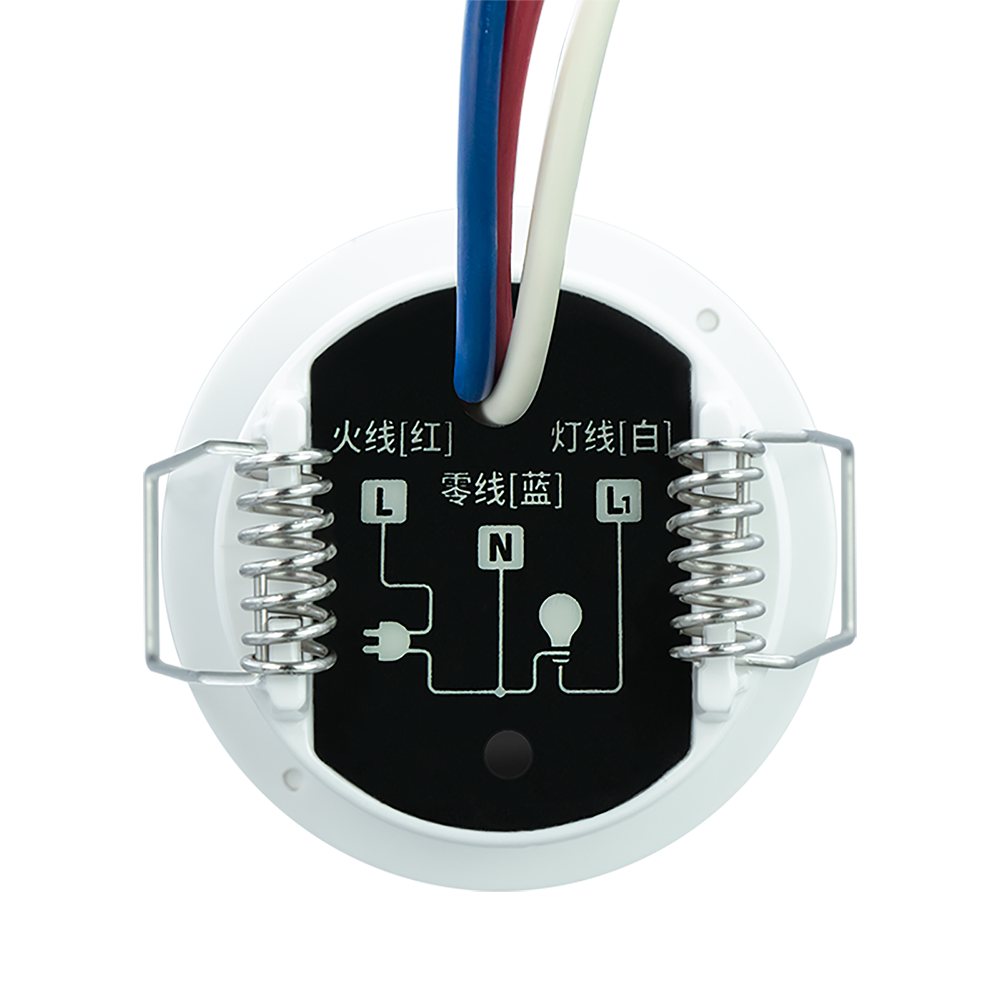

R1-PIR-S1/20 wiring diagram
Wiring Diagram

Debugging

IR Remote Control
IR Remote Control

Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.

FAQ

What power supply does the R1-PIR-S1/20 require?

The R1-PIR-S1/20 is powered by AC 100 to 240 V. Power Consumption: 0.5 W (Max).

How is the R1-PIR-S1/20 installed?

Installation method: Recessed Ceiling Mount. Mounting height: 2.0 to 3.2 m.

What is the detection coverage of the R1-PIR-S1/20?

Detection range: When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m. Detection angle: 20°.

How is the R1-PIR-S1/20 configured on site?

The R1-PIR-S1/20 supports quick on-site configuration and parameter reading with an infrared (IR) remote control, so commissioning and maintenance do not depend on a smart home platform.

What are the operating conditions of the R1-PIR-S1/20?

Operating environment: Indoor -20 to 45°C; Humidity < 95% RH (Non-condensing). Protection level: IP20.

Resources

Available Accessories

Remote Controller
Remote Controller P/N: 60.99.00C1

Model: Accessory (RC1)

Related Links

Frequently Bought Together
more
Frequently Bought Together

Download
