The CTL-SEN-R1/1112 is a professional Passive Infrared (PIR) motion sensor powered by advanced pyroelectric sensing technology. Featuring a precision spherical lens design , it provides high-density coverage to accurately capture human movement within a 360° field of view. With a comprehensive detection diameter of up to 6.0 meters and an integrated high-sensitivity illuminance sensor (0 to 32,000 Lux) , it is engineered to deliver intelligent, energy-efficient control for diverse smart building applications.
Features
Equipped with PIR motion detection.
Quad-element PIR technology enhances radial movement detection and minimizes blind spots.
Integrated high-precision sensor for accurate indoor illuminance monitoring.
Features 1 relay output
Adjustable lighting threshold.
Supports parameter configuration and status readout via IR remote control.
Indicator LED brightness automatically adjusts to ambient light levels.
Specifications
Output Type
Mains Output
Input Voltage
AC 100 to 240 V
Power Consumption
0.5 W (Max)
Relay Output
Normally Open Mode Normally Closed Mode
Relay Load
AC 100 to 240 V, ≤ 2 A
Indicator Light
LED
Detection Mode
Pyroelectric Infrared Receiver
Installation Method
Recessed Ceiling Mount
Mounting Height
2.0 to 3.2 m
Detection Angle
360°
Detection Range
When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m
Illuminance Monitoring
0 to 32,000 Lux (Accuracy ±4%)
Delay Time
1 to 3,600 seconds
Product Size
Φ50 mm × 60 mm
Cutout Size
Φ42 mm
Product Weight
57 g
Cable Assembly
UL1015 18AWG
Operating Environment
Indoor -20 to 45°C Humidity < 95% RH (Non-condensing)
Storage Temperature
-40 to 85°C
Protection Level
IP20
Housing Material
PC
Range

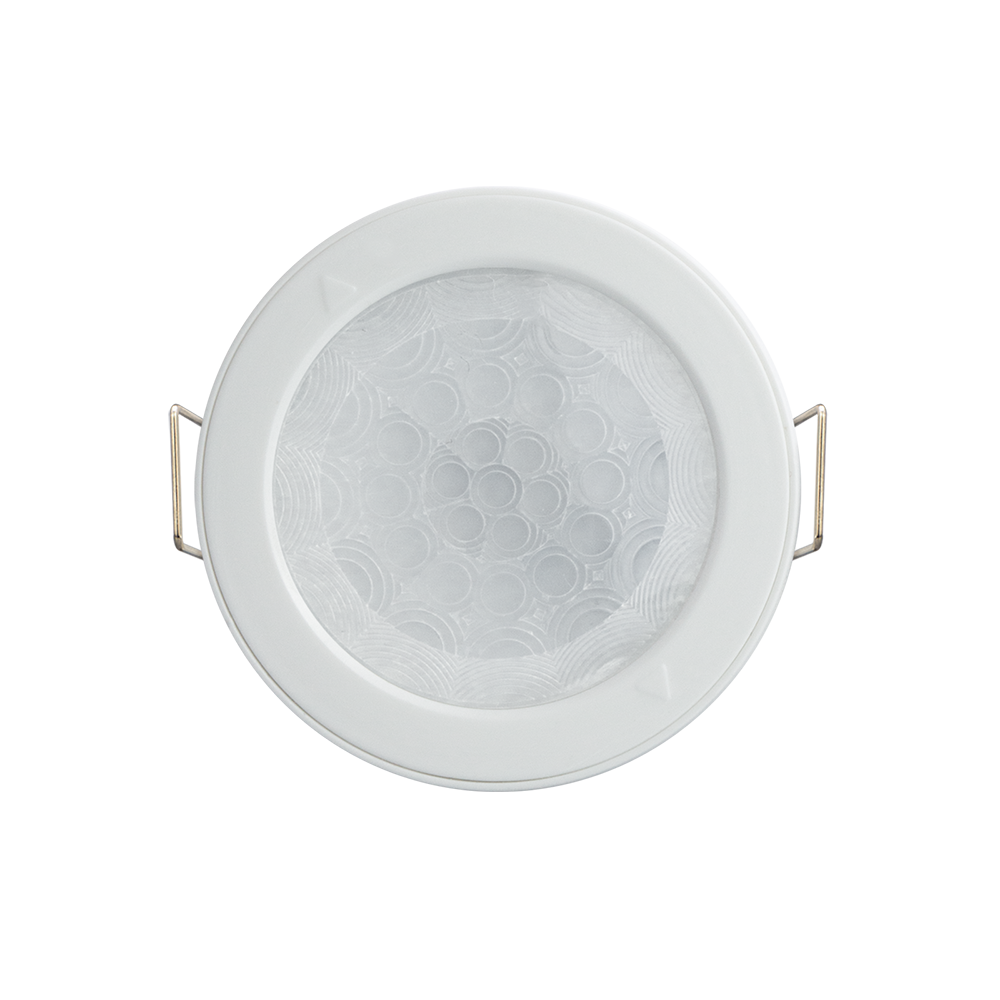

Designed with a multi-zone Fresnel lens, this PIR 360 motion sensor provides large-area, dead-zone-free movement detection with a maximum detection diameter of up to 6.0 meters at a standard mounting height of 3.0 meters.

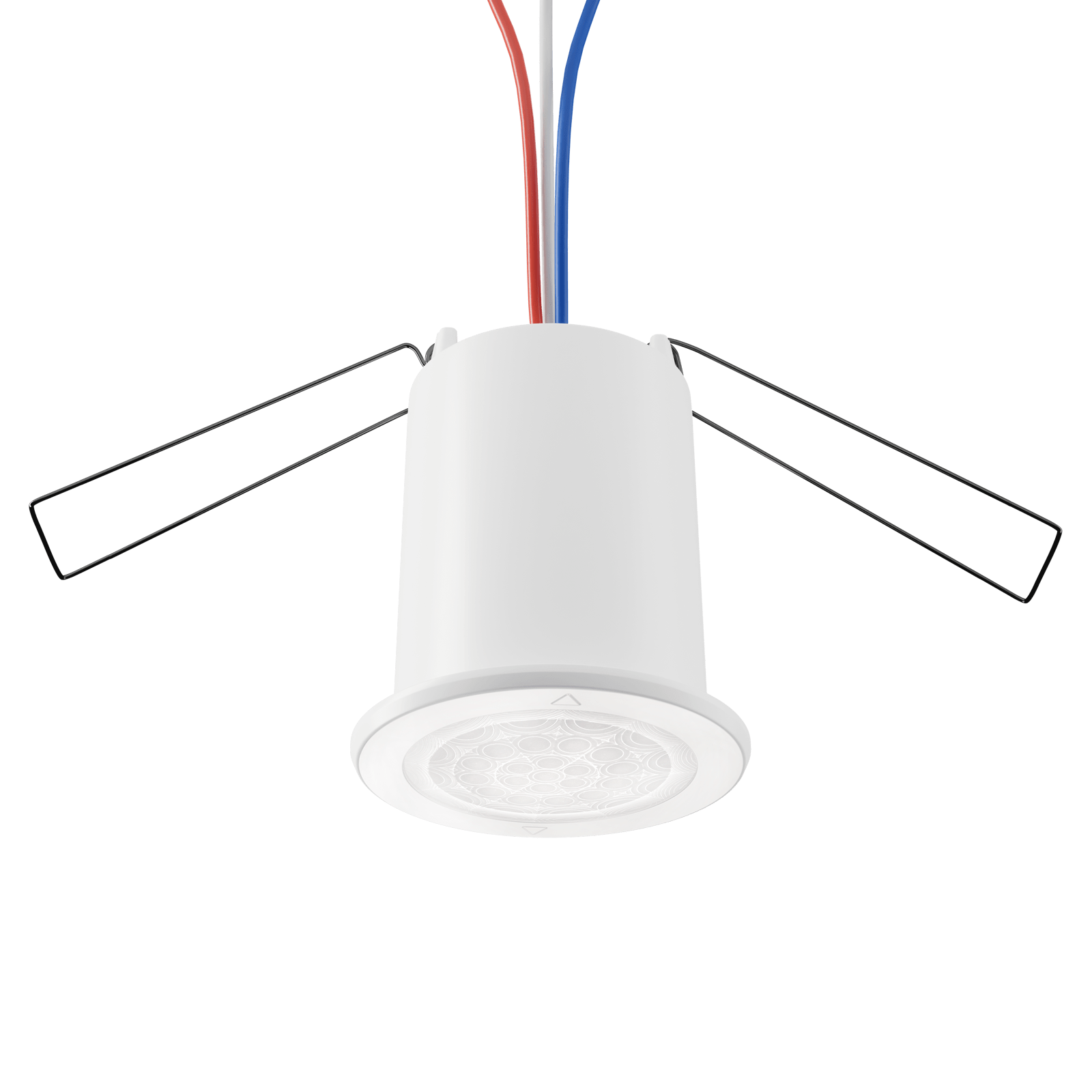

Front View
Top View

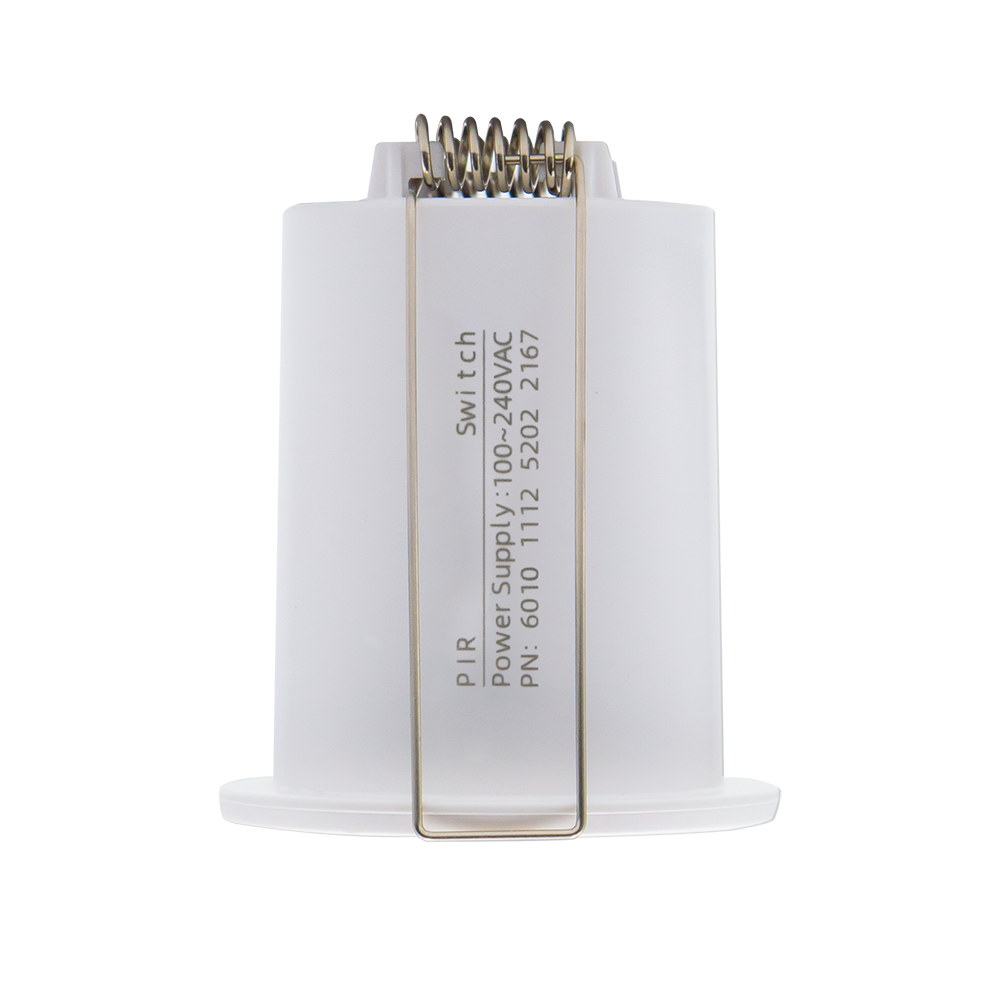

Dimensions
Recessed mount, product outer diameter 50 mm, product depth 60 mm, cutout diameter 42 mm.
Product Dimensions
Applications
HomeHotelLightingOfficeSecurity
Mounting
Interference Avoidance: Avoid installing near moving objects (e.g., pets, swinging curtains) or areas with rapid temperature changes (e.g., AC vents, heat sources) to ensure accuracy and prevent false alarms.
Mounting & Handling: Ensure the installation surface is firm and stable to avoid vibration. Handle the device with care during unpacking and installation to prevent physical damage to the shell or circuit board.
Wiring Safety: Disconnect power before wiring. Use certified cables and strictly follow the diagram to ensure proper circuit protection.
Packaging Disposal: Dispose of packaging materials safely and immediately according to local regulations.
Disclaimer: Product specifications are subject to change without prior notice. Please strictly follow these guidelines; the manufacturer is not liable for performance issues or interference caused by improper installation.

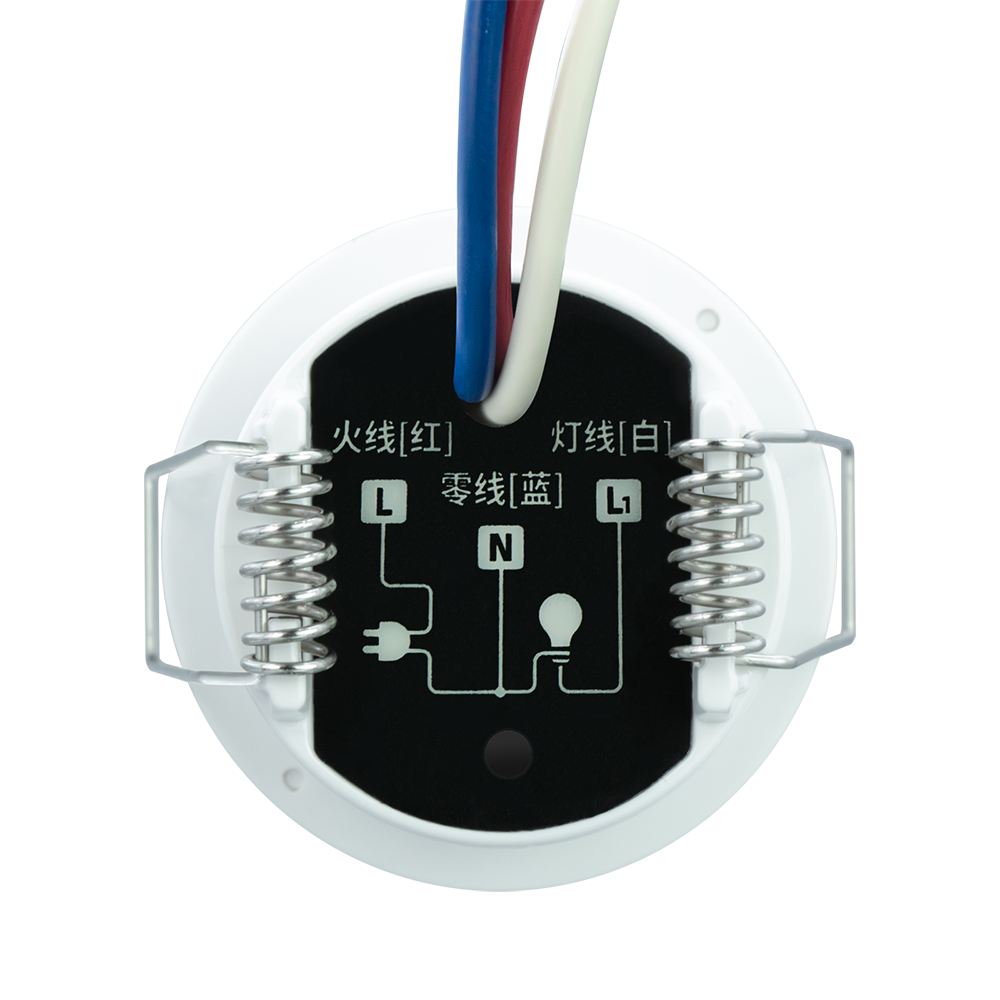

Wiring Diagram
Debugging
IR Remote Control
Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.
FAQ
What power supply does the R1-PIR-S1 require?
The R1-PIR-S1 is powered by AC 100 to 240 V. Power Consumption: 0.5 W (Max).
How is the R1-PIR-S1 installed?
Installation method: Recessed Ceiling Mount. Mounting height: 2.0 to 3.2 m.
What is the detection coverage of the R1-PIR-S1?
Detection range: When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m. Detection angle: 360°.
How is the R1-PIR-S1 configured on site?
The R1-PIR-S1 supports quick on-site configuration and parameter reading with an infrared (IR) remote control, so commissioning and maintenance do not depend on a smart home platform.
What are the operating conditions of the R1-PIR-S1?
