24GHz Millimeter Wave Radar Module
No.CTL-SEN-M/260
SKU: 60.09.0260
Product Model: M260
24G mmWave Radar Detection Module Dynamic Sensing/Area Presence/Environmental Adaptability/Plug and Play in one.
Using a mature industrial-grade radar chip and an optimized 1T1R antenna array, dynamic sensing is performed through pre-integrated core detection algorithms, enabling stable area presence detection, exceptional environmental adaptability against interference, and rapid Plug and Play integration.
Operating Frequency: 24.00~24.25 GHz
Detection Angle: 360°
Installation Height: 2.0 - 4.0 meters
Detection Range: When the installation height is at 3. 0 meters, Motion Detection Diameter φ 14 .0 m, Static detection diameter φ10.0m

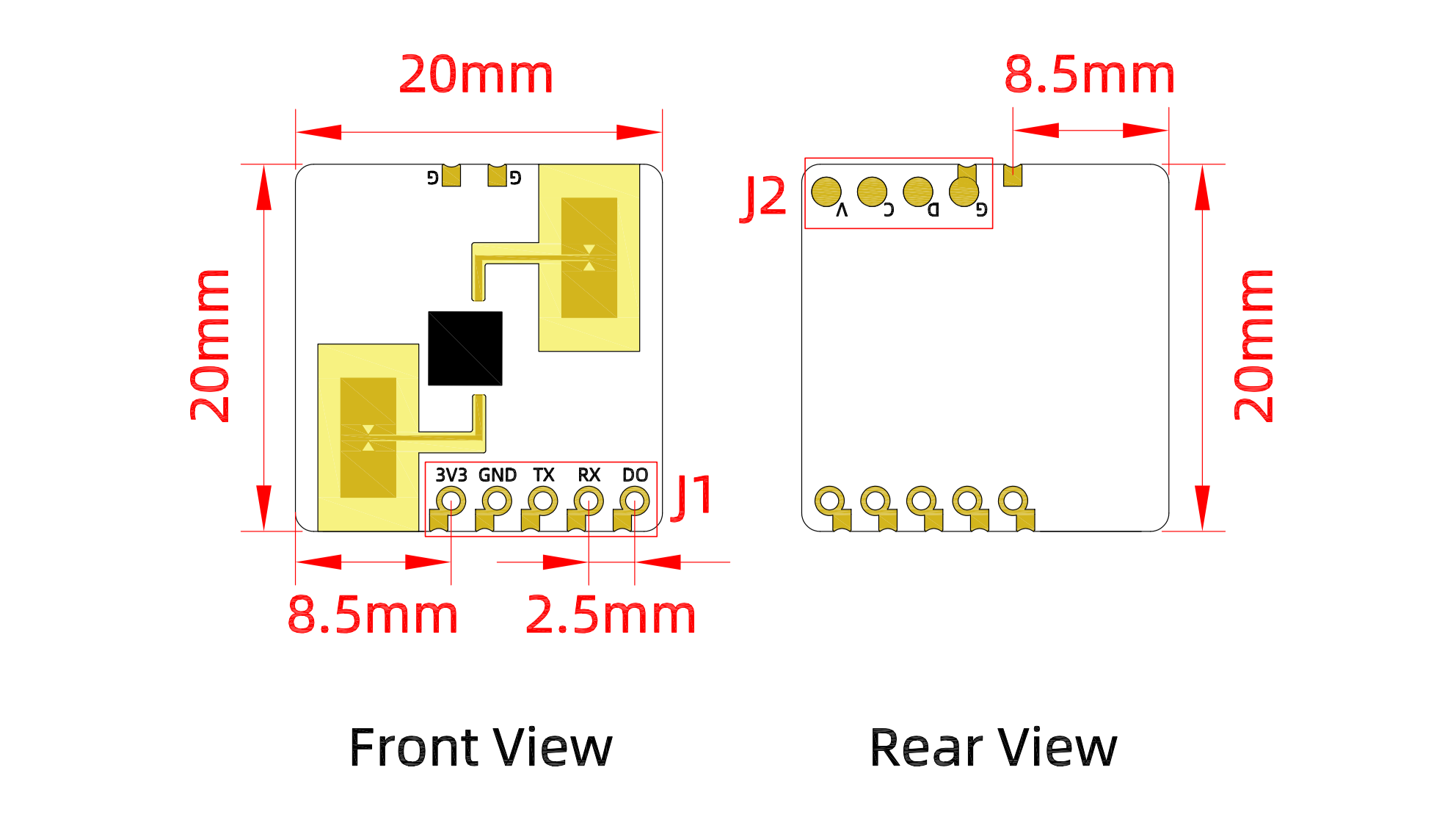

Module Dimensions: 20mm*20mm*3mm
Communication Mode: UART
Power Input: DC 3.0V~3.6V
Working Environment: Temperature -10~50℃
