Hotel ECO Presence Sensor (Wireless)

No.ECO-24G-WL
P/N:
The ECO-24G-WL is a professional-grade 24GHz mmWave presence sensor specifically engineered for high-precision occupancy management in smart hotel environments.
$81.60 $32.20
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    White
    Black
    Please select the information you wantX
Quantity:
-
+
  • Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless),CREATROL SENSOR,Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless),CREATROL SENSOR,Hotel ECO Presence Sensor (Wireless)
1/1
  • Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless)
  • Hotel ECO Presence Sensor (Wireless),CREATROL SENSOR,Hotel ECO Presence Sensor (Wireless)
  • Description

Overview

The ECO-24G-WL is a professional-grade 24GHz mmWave presence sensor specifically engineered for high-precision occupancy management in smart hotel environments. Utilizing advanced FMCW (Frequency Modulated Continuous Wave) radar technology, the device detects subtle human presence—including micro-motions and breathing—eliminating the limitations of traditional PIR sensors. As a core component of the hotel "3+1" energy-saving solution, it facilitates stable, long-range communication via LoRa technology to provide real-time occupancy data, optimizing both guest comfort and operational efficiency.

Features

  • Accurately identifies motion, micro-motion, and Presence.
  • Sensitivity and detection distance can be adjusted independently.
  • Utilizes license-free ISM LoRa bands (470–928MHz) to ensure robust, long-range wireless connectivity and superior wall penetration in dense hotel infrastructures.
  • Enables remote monitoring and adjustment of sensor parameters (sensitivity, range, delays) via the gateway interface.
  • Supports parameter configuration and status readout via IR remote control.

Specifications

Communication Type Wireless (LoRa Technology)
Cloud Ecosystem Tuya-WiFi (Supports remote parameter configuration via Gateway)

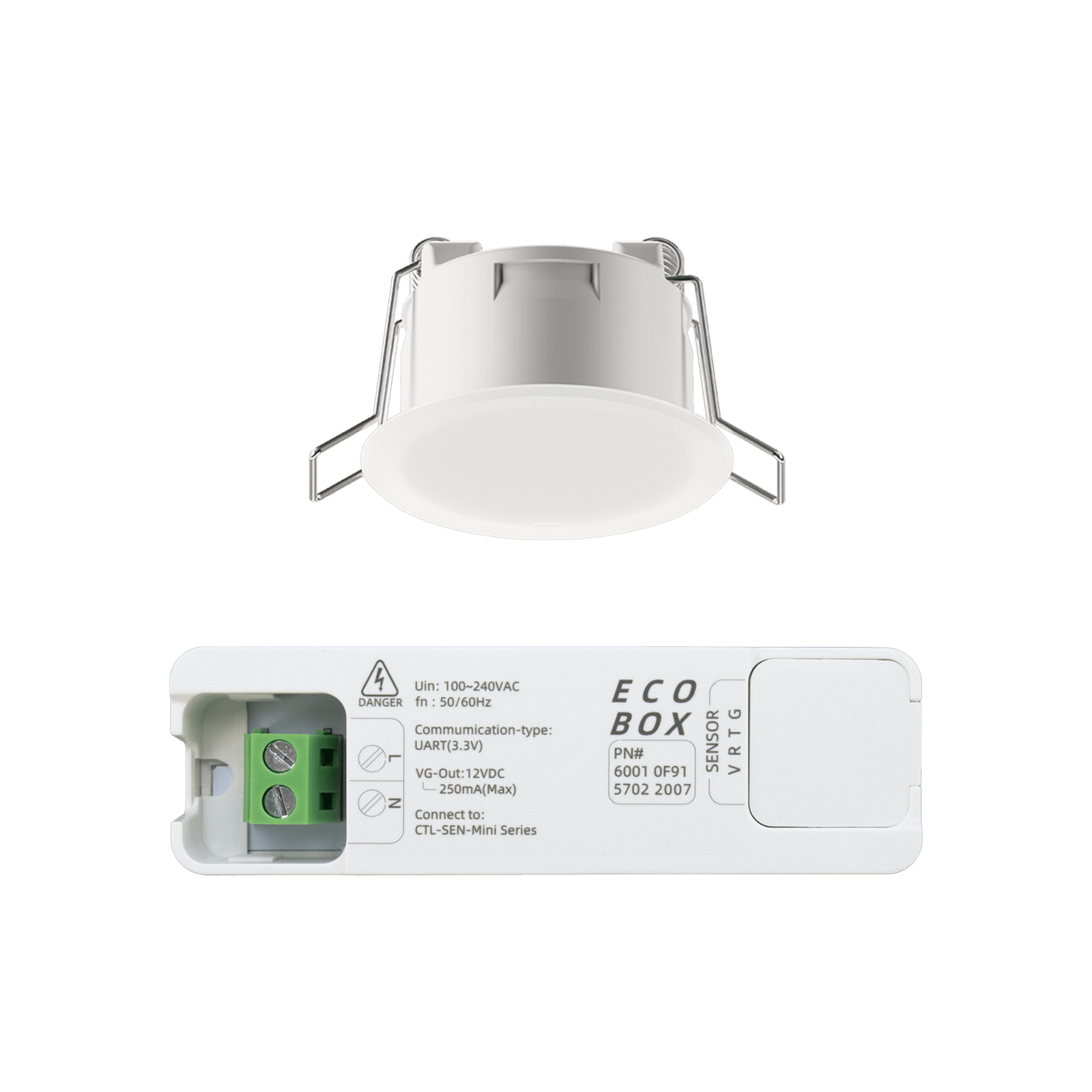

BOX Input Voltage AC 100 to 240 V
BOX Output Voltage DC 12 V (< 500 mA)
Sensor Input Voltage DC 12 V
Power Consumption 0.5 W (Max)
Indicator Light LED
Detection Mode 24GHz FMCW Radar
Operating Frequency 24.00 to 24.25 GHz
Transmit Power ≤ 10 dBm
Installation Method Recessed Ceiling Mount
Mounting Height 2.0 to 4.0 m
Detection Angle 360°
Detection Coverage Installation at 3.0 m Height:
① Motion & Micro-motion: Detection diameter at least 8.0m
② Stationary Presence: Detection diameter at least 6.0m
Detection Range 1.5 to 8.0 m (sensor to target)
Sensitivity 0 to 100%
Delay Time 1 to 3,600 seconds
Product Size Φ43 mm × 25 mm
Cutout Size Φ35 mm
Product Weight 18 g
BOX Size 75 mm × 20 mm × 22 mm
BOX Weight 29 g
Cable Assembly UL2468 22AWG
Cable Length: 200 mm
Operating Environment Indoor -20 to 45°C
Humidity < 95% RH (Non-condensing)
Storage Temperature -40 to 85°C
Protection Level IP20
Housing Material PC

Dimensions

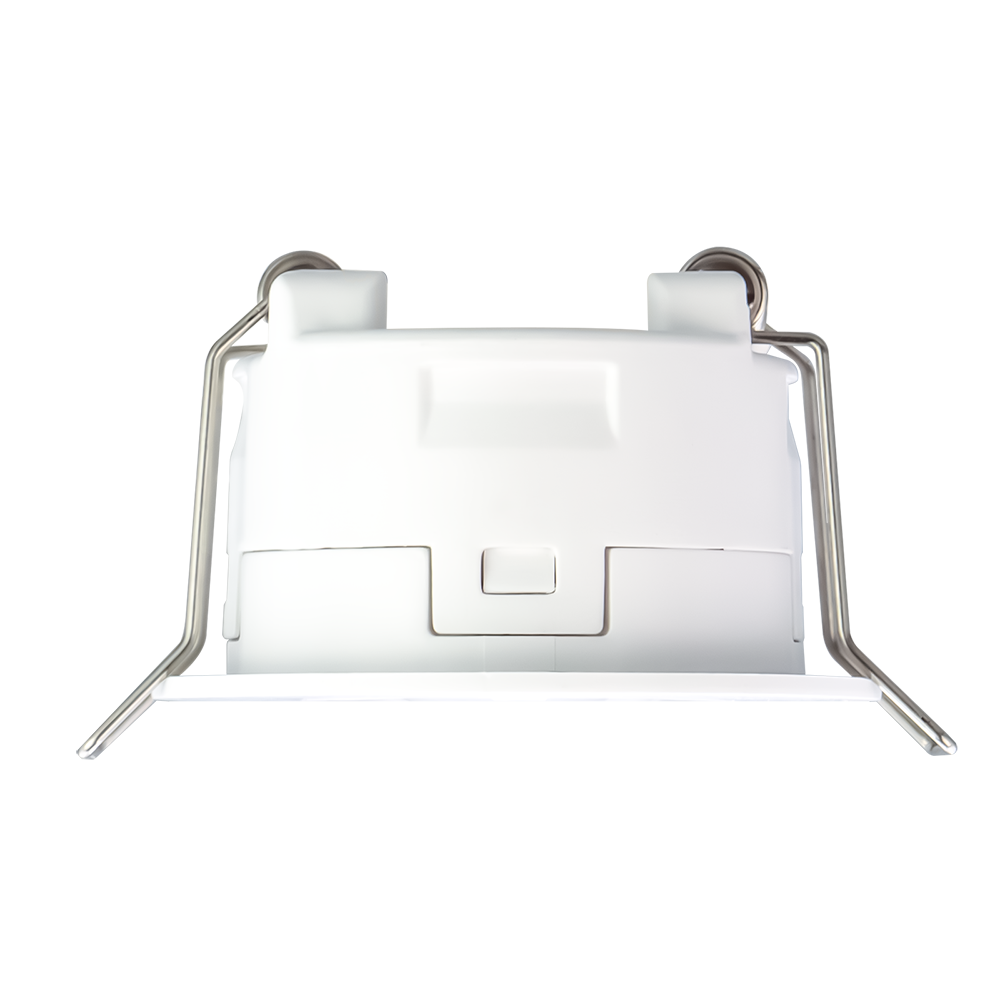

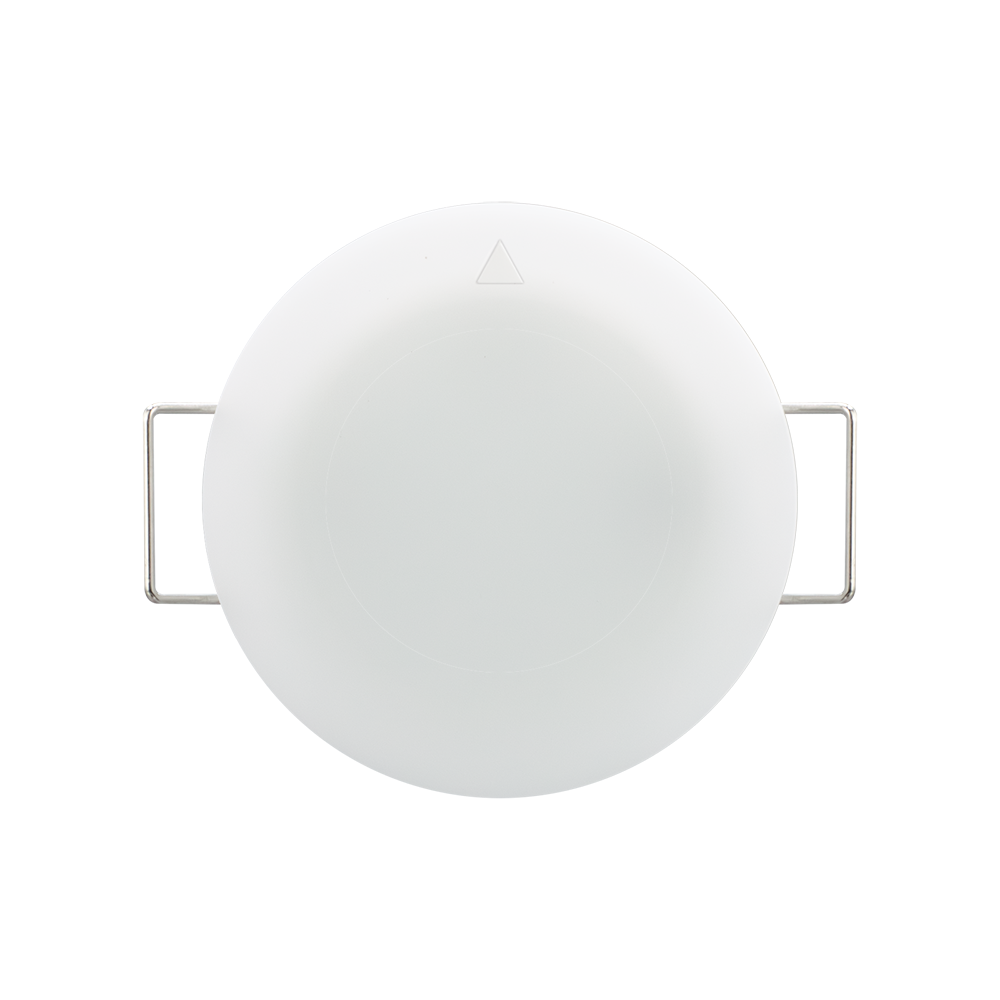

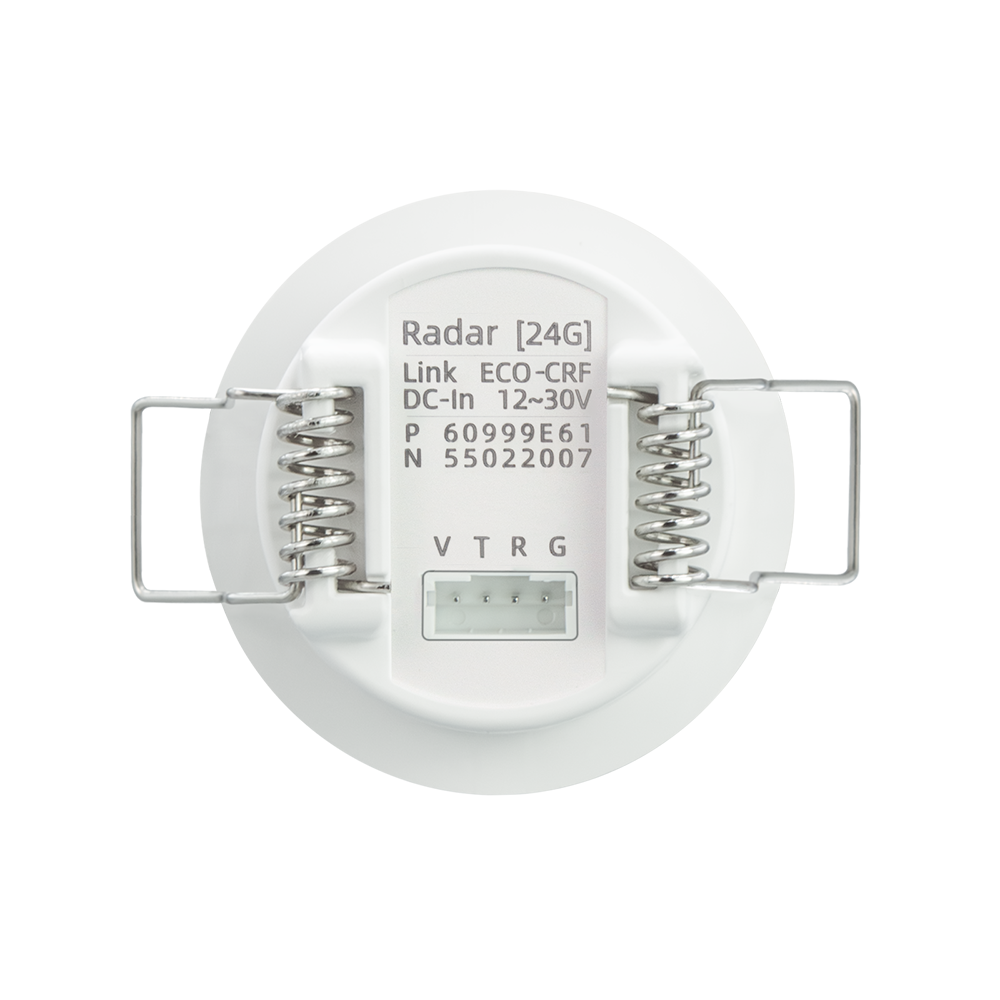

The product features an outer diameter of 43 mm and a depth of 25 mm, requiring a 35 mm cutout. Designed for recessed installation, it requires a minimum ceiling depth of 10 cm.

Mounting

Interference Avoidance: Keep away from moving objects (e.g., curtains, plants) and large metal/reflective surfaces.

Device Spacing: Maintain a minimum distance of 4 m between multiple sensors to prevent mutual interference.

Mounting: Install on a stable, vibration-free surface. Ensure no moving objects are behind the wall (signals penetrate non-metals).

Wiring Safety: Disconnect power before wiring. Use certified cables and ensure the circuit includes appropriate short-circuit and overload protection.

Disclaimer: Product specifications are subject to change without prior notice for improvement purposes. Please follow all wiring diagrams strictly. The manufacturer is not liable for issues caused by improper installation.

Debugging

IR Remote Control
IR Remote Control

Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.

FAQ

What communication protocol does the ECO-24G-WL use?

The ECO-24G-WL communicates via Wireless (LoRa Technology).

How is the ECO-24G-WL installed?

Installation method: Recessed Ceiling Mount. Mounting height: 2.0 to 4.0 m.

What is the detection coverage of the ECO-24G-WL?

Detection coverage: Installation at 3.0 m Height:; ① Motion & Micro-motion: Detection diameter at least 8.0m; ② Stationary Presence: Detection diameter at least 6.0m. Detection range: 1.5 to 8.0 m (sensor to target). Detection angle: 360°.

How is the ECO-24G-WL configured on site?

The ECO-24G-WL supports quick on-site configuration and parameter reading with an infrared (IR) remote control, so commissioning and maintenance do not depend on a smart home platform.

What are the operating conditions of the ECO-24G-WL?

Operating environment: Indoor -20 to 45°C; Humidity < 95% RH (Non-condensing). Protection level: IP20.
