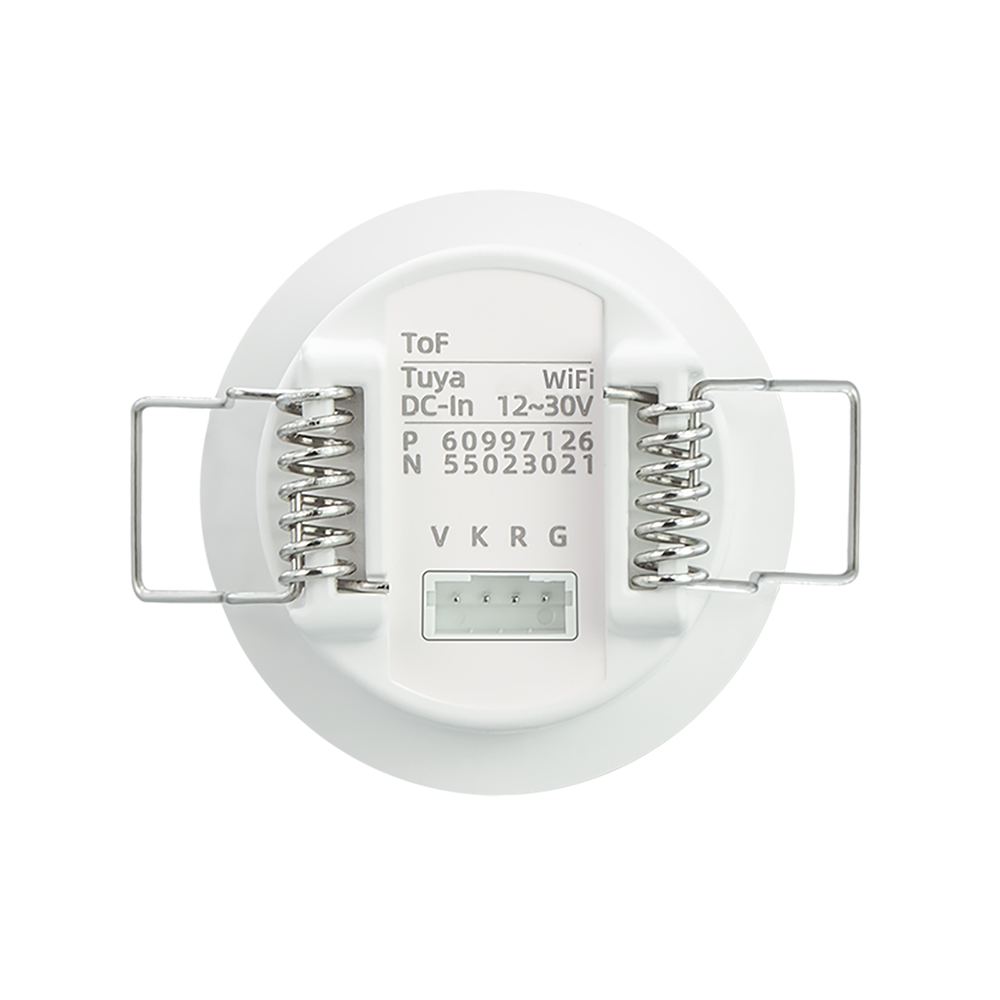

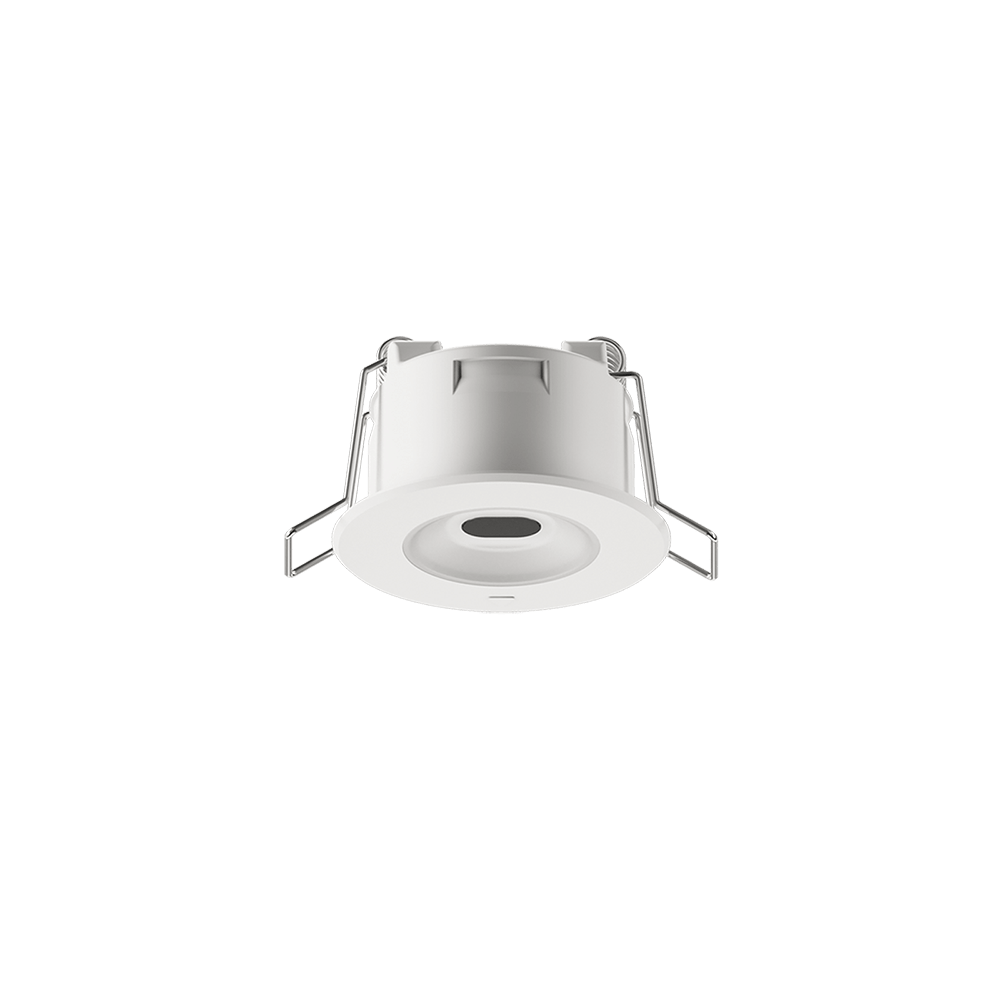

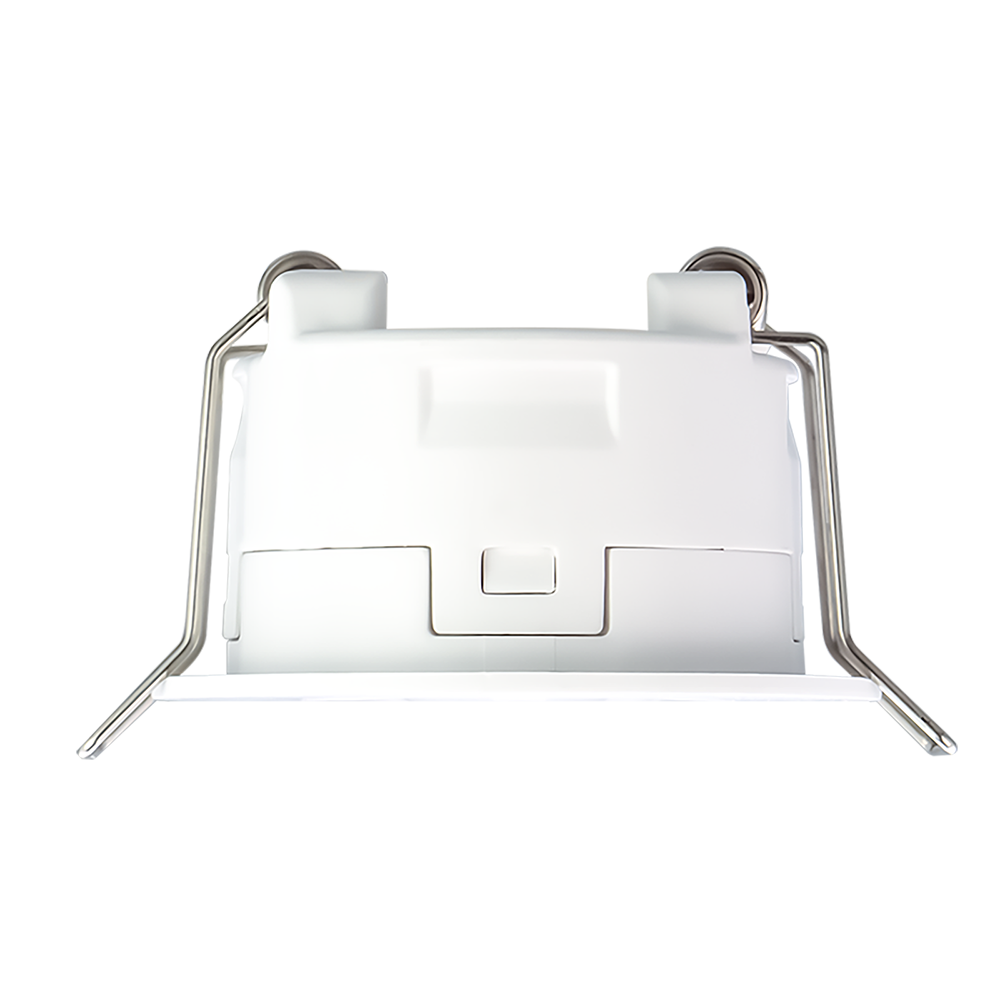

The CTL-SEN-Mini/7126 is an ultra-compact, high-precision occupancy sensor leveraging advanced Time-of-Flight (ToF) ranging technology. Unlike traditional motion sensors, it measures the precise distance to a target with millimeter-level accuracy, enabling the detection of static presence and precise location within a defined zone. Designed with a miniature form factor (Φ35 mm cutout), this sensor is engineered for sophisticated smart automation requiring granular control.
Features
Accurately detects presence, occupancy, approach, and departure.
Integrated high-precision sensor for accurate indoor illuminance monitoring.
Adjustable lighting threshold.
Supports parameter configuration and status readout via IR remote control.
Indicator LED brightness automatically adjusts to ambient light levels.
Powered by a proprietary module with advanced signal processing algorithms.
Specifications
Communication Type
TY-WiFi
Input Voltage
DC 12 to 30 V
Power Consumption
0.5 W (Max)
Indicator Light
LED
Detection Mode
ToF Time of Flight Sensor
Light Source
940 nm
Laser Safety
Class 1 (IEC 60825-1:2014)
Update Rate
15 Hz / 30 Hz
Installation Method
Recessed Ceiling Mount
Mounting Height
2.0 to 4.0 m
Detection Angle
11°
Detection Coverage
≤ 0.4 m
Detection Range
0.1 to 3.2 m (sensor to target)
Illuminance Monitoring
0 to 32,000 Lux (Accuracy ±4%)
Delay Time
1 to 3,600 seconds
Product Size
Φ43 mm × 25 mm
Cutout Size
Φ35 mm
Product Weight
17 g
Cable Assembly
UL1007 22AWG Cable Length: 150 mm
Operating Environment
Indoor -20 to 45°C Humidity < 95% RH (Non-condensing)
Storage Temperature
-40 to 85°C
Protection Level
IP20
Housing Material
PC
Range
Utilizing an 11° narrow-beam directional design, this ToF ranging occupancy sensor provides targeted occupancy detection and precise distance measurement directly below. At a standard mounting height of 3.0 meters, it features an effective bottom detection diameter of approximately 0.4 meters and supports a flexible adjustable detection range of 0.1 to 3.2 meters.

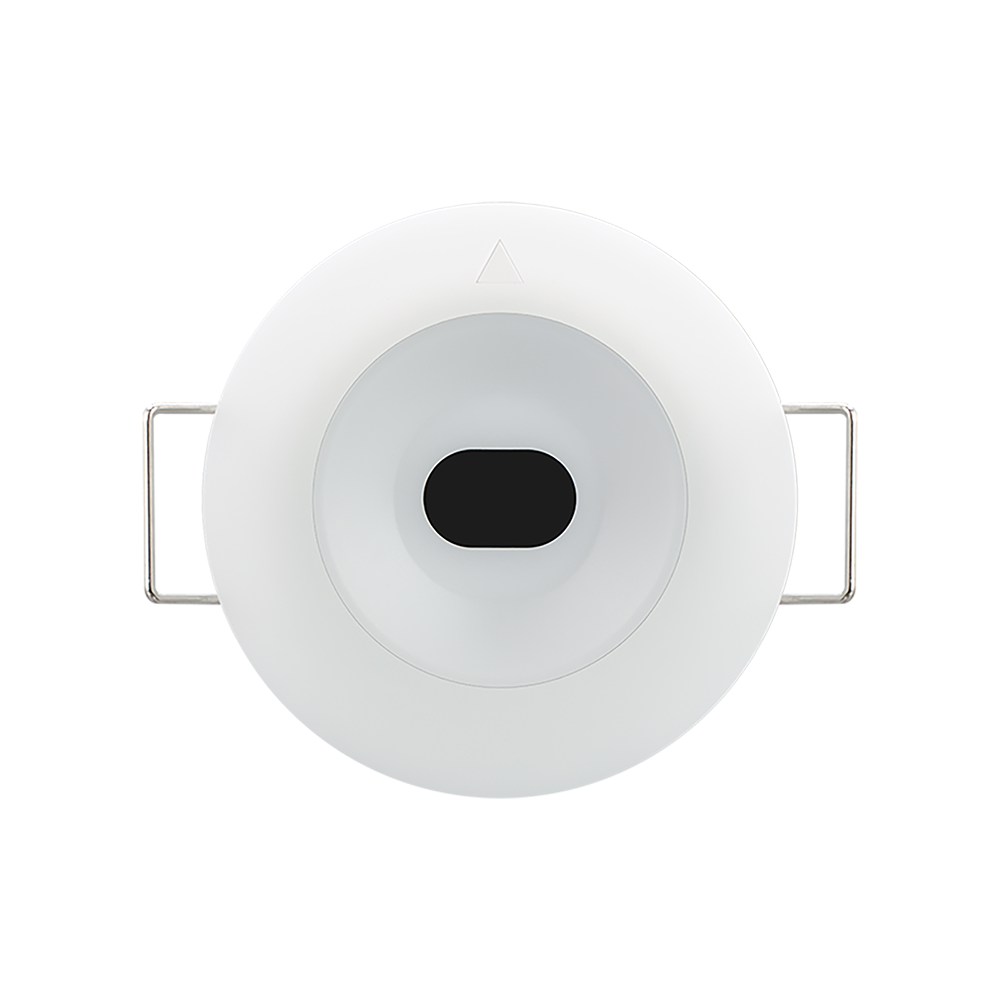

Front View
Top View
Dimensions
The product features an outer diameter of 43 mm and a depth of 25 mm, requiring a 35 mm cutout. Designed for recessed installation, it is also compatible with optional kits for surface mounting, wall mounting, or external installation via a universal bracket.
Product Dimensions
Applications
HomeHotelLightingOfficeSecurity
Mounting
Environmental Requirements: Avoid moving objects, direct light, or reflections to prevent false triggers. Dark materials may reduce sensitivity.Ensure the lens remains free of heavy soiling or scratches, as this may compromise detection accuracy.
Unpacking: Unpack carefully and inspect contents immediately. Dispose of packaging per local regulations.
Electrical Safety: Disconnect power before wiring. Follow the wiring diagram using certified cables and ensure the system has short-circuit and overload protection. Avoid direct contact with circuit components.
Wiring Safety: Mount at least 30 cm above the floor with 1 meter clearance from walls or obstacles. Ensure an unobstructed view of the detection zone.
Disclaimer: Specifications subject to change without notice. Follow wiring diagrams strictly. The manufacturer assumes no liability for improper installation.
Wiring Diagram
Debugging
IR Remote Control
Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.
Tuya Smart
Tuya is a global IoT cloud platform and one-stop AIoT solution that provides standardized modules and software support, enabling hardware manufacturers to quickly make traditional products smart and connect them to a rich cloud ecosystem and custom apps.
