Home > Mini Series > 60997111F21-Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
1/1
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)

Mini ToF Ranging Occupancy Sensor (Switch 1KW)

No.Mini-ToF-S1+
SKU: 60.99.7111.F21
Product Model: CTL-SEN-Mini/7111.F21

Precise small range, occupancy detection, precise distance detection

A high-precision, miniaturized distance measurement sensor features accurate measurement from 0.1 to 3.2m, high anti-interference capability, and fast response characteristics.

Installation Height: 2~4m (Ceiling)
Detection Angle: 11 °
Detection Range: φ0.4m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Power Input: AC100~240V
Output: 1 Channel Switch (1KW)
4.9 (97 Reviews)
17985 Sold
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (195)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
1/1
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)
  • Mini ToF Ranging Occupancy Sensor (Switch 1KW)

ToF Ranging

ToF Ranging
Occupancy Detection

Occupancy Detection

0.1-3.2m Distance

0.1-3.2m Distance
15° Ultra-Narrow Angle

15° Ultra-Narrow Angle
Lux Sensing

Lux Sensing
  • Description
  • Features
  • Resources
  • Accessories

      Precise Narrow-Angle Ranging Capability

Using Time of Flight (ToF) technology, it achieves narrow-angle detection at 11°, allowing for accurate positioning detection within a small range. It also provides high-precision ranging functions, accurately detecting the distance between the target object and the sensor, offering high-precision depth information.

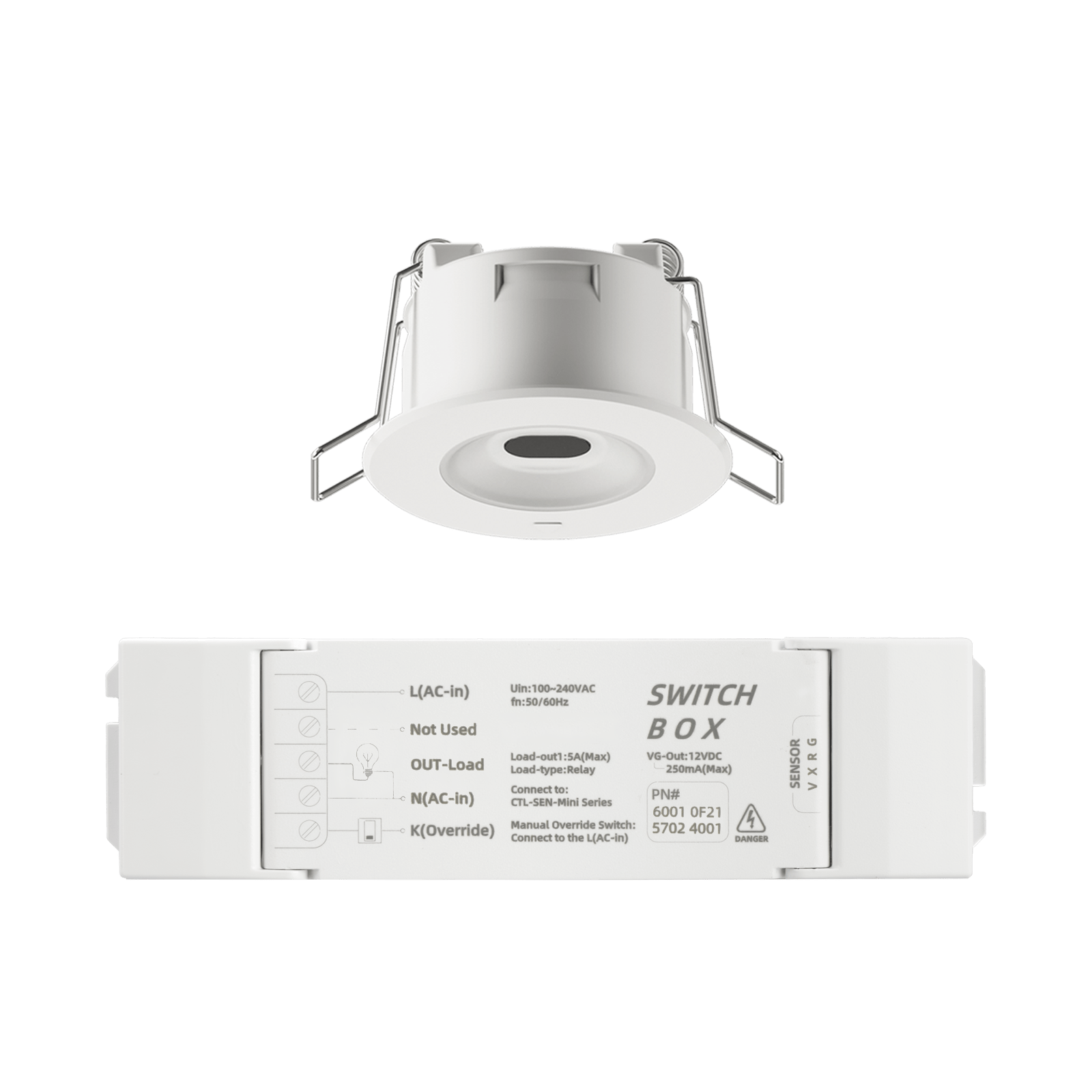

      Directly Switch a Lighting Circuit

This sensor can directly switch a lighting circuit with a maximum load of 1000W. This means that regardless of the smart scenario it is used in, the sensor can switch the lighting based on detected human presence and motion status, achieving energy savings and automated management.

      Built-in Digital Illuminance Measurement Chip

This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human  presence and occupancy but also monitor the surrounding light intensity, providing data support for intelligent lighting control.

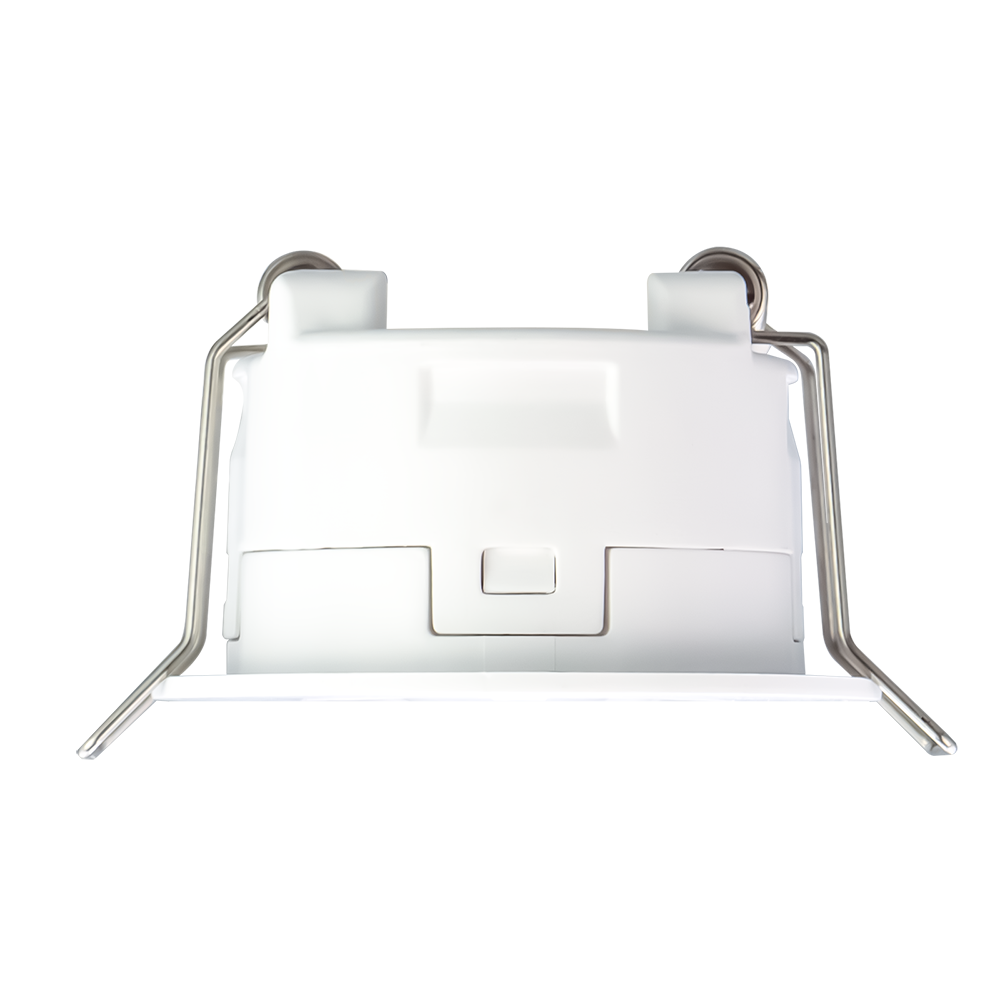

       Ultra Small Size

This sensor features a super small 35mm opening and a 25mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment.

      Multiple Installation Methods

It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods.

Designation Value
Detection Mode

ToF
Time - of - flight sensor
Install Height

2.0 ~ 4.0 meters
Detection Angle

11°

Detection Range
When the detection distance is set between 0.1 and 3.2 meters,
When set to 2.0 meters, the range diameter is φ0.4 meters
(Note that pure white and black colors will reduce detection accuracy)

Detection Distance

0.1 ~ 3.2 meters
Illuminance Sensing 0 ~ 32000 Lux (Accuracy ± 4%)

Product Dimensions

 φ43mm * 35mm * 25mm

Cutout Dimensions

 φ35mm Depth ≥ 100mm
Sensor Weight 18g
Box Weight 88g

Working environment

Temperature -20~45℃    Humidity <95%

BOX power input

AC 100 ~ 240V
Relay Load

≤ 5A

BOX power output

DC 12V (Power consumption < 0.5W)
LED Indicator ① Receive the configuration command and flash for 3 seconds
② It is always on when someone is detected, and the brightness of the indicator light automatically adjusts with the ambient illumination
③ Can be set to off mode (does not light up when detecting someone)

Guides & Manuals
Spec Sheet: Mini-ToF-S1-Plus                      PDF PDF下载
Accessories for Installation
Mini-65 Mini-Embedded Parts
Max 65mm Opening
Remedial Ring

For Oversize Holes:
Secure Installation
 Embedded Parts
Frameless Installation

For Wall/Ceiling Pre-Install:
Flush & Invisible
