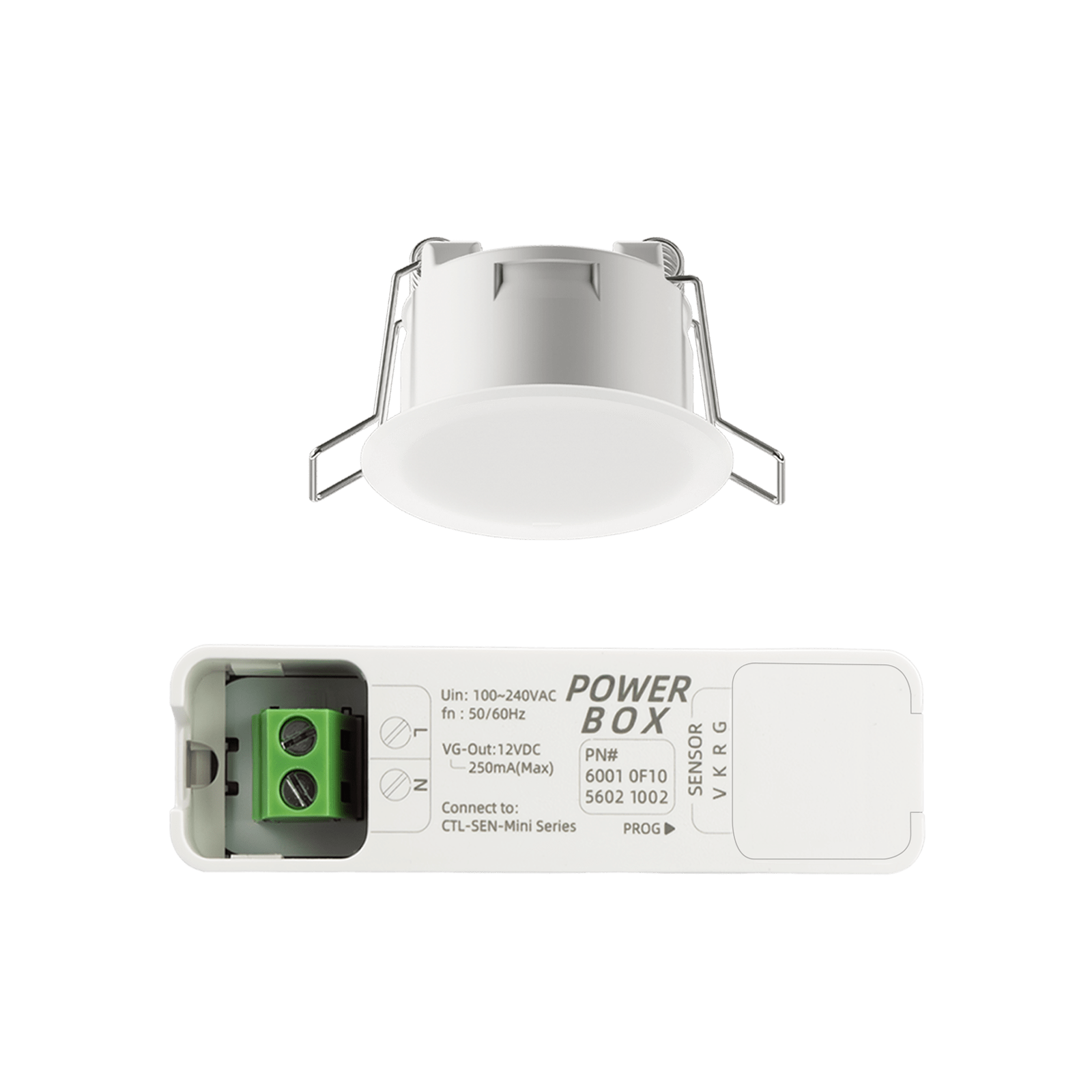

Mini High Bay Radar Motion Sensor (Tuya WiFi AC)

No.Mini-HCS-TYW/AC
P/N:
The CTL-SEN-Mini/5126.F10 is a compact, high-precision motion sensor powered by advanced 5.8G High-Bay radar technology.
$38.70 $19.30
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    White
    Black
    Please select the information you wantX
Quantity:
-
+
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC)
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC)
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC)
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC)
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC)
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC)
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
1/1
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC)
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC)
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC)
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Mini High Bay Radar Motion Sensor (Tuya WiFi AC),CREATROL SENSOR,Mini High Bay Radar Motion Sensor (Tuya WiFi AC)-CREATROL SENSOR
  • Description
  • Resources

Overview

The CTL-SEN-Mini/5126.F10 is a compact, high-precision motion sensor powered by advanced 5.8G High-Bay radar technology. Designed for discreet, premium applications, it features a miniature form factor (Φ35 mm cutout) while supporting mounting heights of up to 12.0 m with a robust detection diameter of 15.0 m. It integrates a high-precision lux sensor (0–32,000 Lux) for advanced lighting automation.

Features

  • Capable of installation at heights up to 12m, providing reliable coverage for warehouses, lobbies, and gyms.
  • Accurately identifies major motion and minor motion.
  • Sensitivity and detection range can be adjusted independently.
  • Integrated high-precision sensor for accurate indoor illuminance monitoring.
  • Adjustable lighting threshold.
  • Supports parameter configuration and status readout via IR remote control.
  • IndicatorLED brightness automatically adjusts to ambient light levels.
  • Powered by a proprietary module with advanced signal processing algorithms.

Specifications

Communication Type

TY-WiFi

BOX Input Voltage

AC 100 to 240 V

BOX Output Voltage

DC 12 V (< 500 mA)

Sensor Input Voltage

DC 12 V

Power Consumption

0.5 W (Max)

Indicator Light

LED

Detection Mode

5.8G High-Bay Radar

Operating Frequency

5.725 to 5.875 GHz

Transmit Power

≤ 10 dBm

Installation Method

Recessed Ceiling Mount

Mounting Height

2.0 to 12.0 m

Detection Angle

360°

Detection Coverage

Achieves a micro-motion detection diameter of at least 15.0 m at 12.0 m height

Detection Range

1.5 to 25.0 m (sensor to target)

Sensitivity

0 to 100%

Illuminance Monitoring

0 to 32,000 Lux (Accuracy ±4%)

Delay Time

1 to 3,600 seconds

Product Size

Φ43 mm × 25 mm

Cutout Size

Φ35 mm

Product Weight

16.5 g

BOX Size

75 mm × 20 mm × 22 mm

BOX Weight

29 g

Cable Assembly

UL2468 22AWG
Cable Length: 200 mm

Operating Environment

Indoor -20 to 45°C
Humidity < 95% RH (Non-condensing)

Storage Temperature

-40 to 85°C

Protection Level

IP20

Housing Material

PC

Protection Level IP20
Housing Material PC

Range

Specially engineered for large spaces with flexible high-altitude mounting support, this high-bay radar motion sensor offers varying horizontal detection diameters depending on the installation height: approximately 10.0 meters at 3.0 meters, 12.0 meters at 8.0 meters, and up to 15.0 meters at a maximum installation height of 12.0 meters.

Mini-HCS-TYZ/S1 detection range, Front View
Front View
Mini-HCS-TYZ/S1 detection range, Top View
Top View

Dimensions

Measuring 43 mm wide and 25 mm deep, this recessed unit fits a 35 mm cutout and requires a minimum ceiling depth of 10 cm.

Product Dimensions
Product Dimensions

Applications

Mini-HCS-TYZ/S1 application: Home
Home
Mini-HCS-TYZ/S1 application: Hotel
Hotel
Mini-HCS-TYZ/S1 application: Lighting
Lighting
Mini-HCS-TYZ/S1 application: Office
Office
Mini-HCS-TYZ/S1 application: Security
Security
Mini-HCS-TYZ/S1 application: Scenario
Application

Mounting

Interference Avoidance: Keep away from moving objects (e.g., curtains, plants) and large metal/reflective surfaces.

Device Spacing: Maintain at least 4m between sensors.

Mounting: Install on a stable, vibration-free surface. Ensure no moving objects are behind the wall (signals penetrate non-metals).

Wiring Safety: Turn off power before wiring. Use certified cables and proper circuit protection.

Disclaimer: Follow wiring diagrams strictly. Manufacturer is not liable for improper installation. Specifications subject to change.

Mini-HCS-TYZ/S1 wiring diagram
Wiring Diagram

Debugging

IR Remote Control
IR Remote Control

Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.

Tuya Smart
Tuya Smart
Tuya Smart
Tuya Smart

Tuya is a global IoT cloud platform and one-stop AIoT solution that provides standardized modules and software support, enabling hardware manufacturers to quickly make traditional products smart and connect them to a rich cloud ecosystem and custom apps.

Resources

Available Accessories

Remote Controller
Remote Controller P/N: 60.99.00C1

Model: Accessory (RC1)

Mini Accessory Cover Ring
Mini Accessory Cover Ring P/N: 60.99.0A55

Model: A55 (Mini-ASSY-55)

Mini Accessory In-wall Mounting 86 Panel Frame
Mini Accessory In-wall Mounting 86 Panel Frame P/N: 60.99.0A86

Model: A86 (Mini-ASSY-86)

Mini Accessory Borderless Embeded Parts
Mini Accessory Borderless Embeded Parts P/N: 60.99.0A40

Model: A40 (Mini-ASSY-BL)
