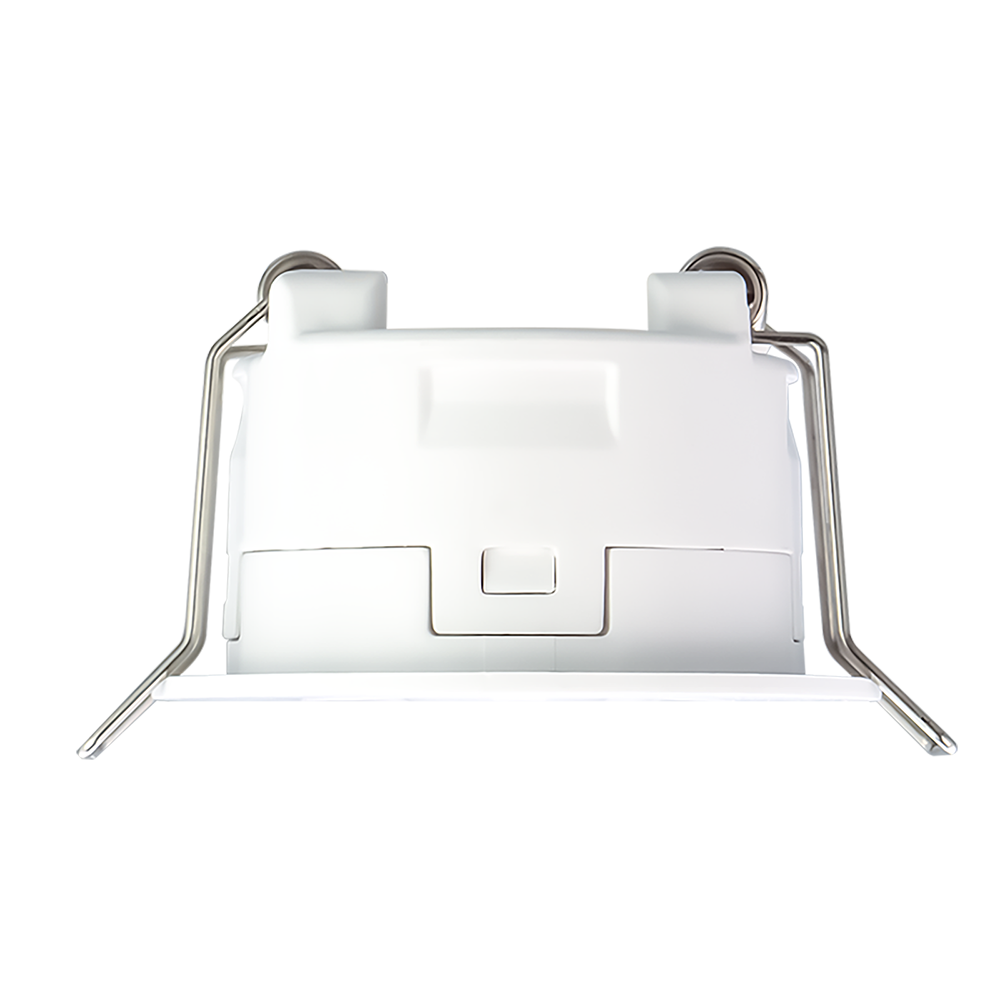

The CTL-SEN-Mini/5116.F10 is a compact, high-precision motion sensor powered by advanced 5.8G High-Bay radar technology. Designed for discreet, premium applications, it features a miniature form factor (Φ35 mm cutout) while supporting mounting heights of up to 12.0 m with a robust detection diameter of 15.0 m. It integrates a high-precision lux sensor (0–32,000 Lux) for advanced lighting automation.
Features
Capable of installation at heights up to 12m, providing reliable coverage for warehouses, lobbies, and gyms.
Accurately identifies major motion and minor motion.
Sensitivity and detection range can be adjusted independently.
Integrated high-precision sensor for accurate indoor illuminance monitoring.
Adjustable lighting threshold.
Supports parameter configuration and status readout via IR remote control.
Indicator LED brightness automatically adjusts to ambient light levels.
Powered by a proprietary module with advanced signal processing algorithms.
Specifications
Communication Type
TY-ZigBee

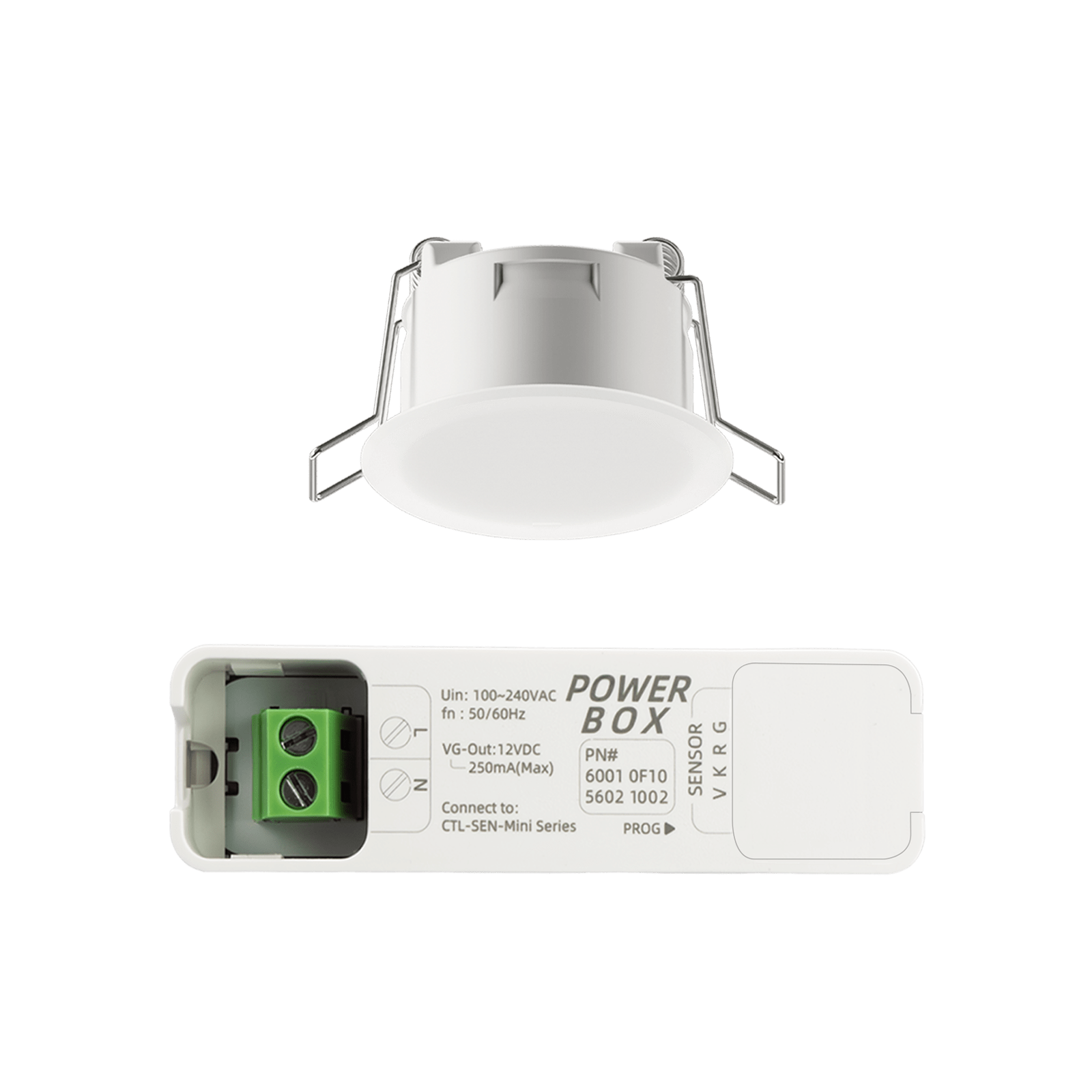

BOX Input Voltage
AC 100 to 240 V
BOX Output Voltage
DC 12 V (< 500 mA)
Sensor Input Voltage
DC 12 V
Power Consumption
0.5 W (Max)
Indicator Light
LED
Detection Mode
5.8G High-Bay Radar
Operating Frequency
5.725 to 5.875 GHz
Transmit Power
≤ 10 dBm
Installation Method
Recessed Ceiling Mount
Mounting Height
2.0 to 12.0 m
Detection Angle
360°
Detection Coverage
Achieves a micro-motion detection diameter of at least 15.0 m at 12.0 m height
Detection Range
1.5 to 25.0 m (sensor to target)
Sensitivity
0 to 100%
Illuminance Monitoring
0 to 32,000 Lux (Accuracy ±4%)
Delay Time
1 to 3,600 seconds
Product Size
Φ43 mm × 25 mm
Cutout Size
Φ35 mm
Product Weight
16.5 g
BOX Size
75 mm × 20 mm × 22 mm
BOX Weight
29 g
Cable Assembly
UL2468 22AWG Cable Length: 200 mm
Operating Environment
Indoor -20 to 45°C Humidity < 95% RH (Non-condensing)
Storage Temperature
-40 to 85°C
Protection Level
IP20
Housing Material
PC
Range
Specially engineered for large spaces with flexible high-altitude mounting support, this high-bay radar motion sensor offers varying horizontal detection diameters depending on the installation height: approximately 10.0 meters at 3.0 meters, 12.0 meters at 8.0 meters, and up to 15.0 meters at a maximum installation height of 12.0 meters.

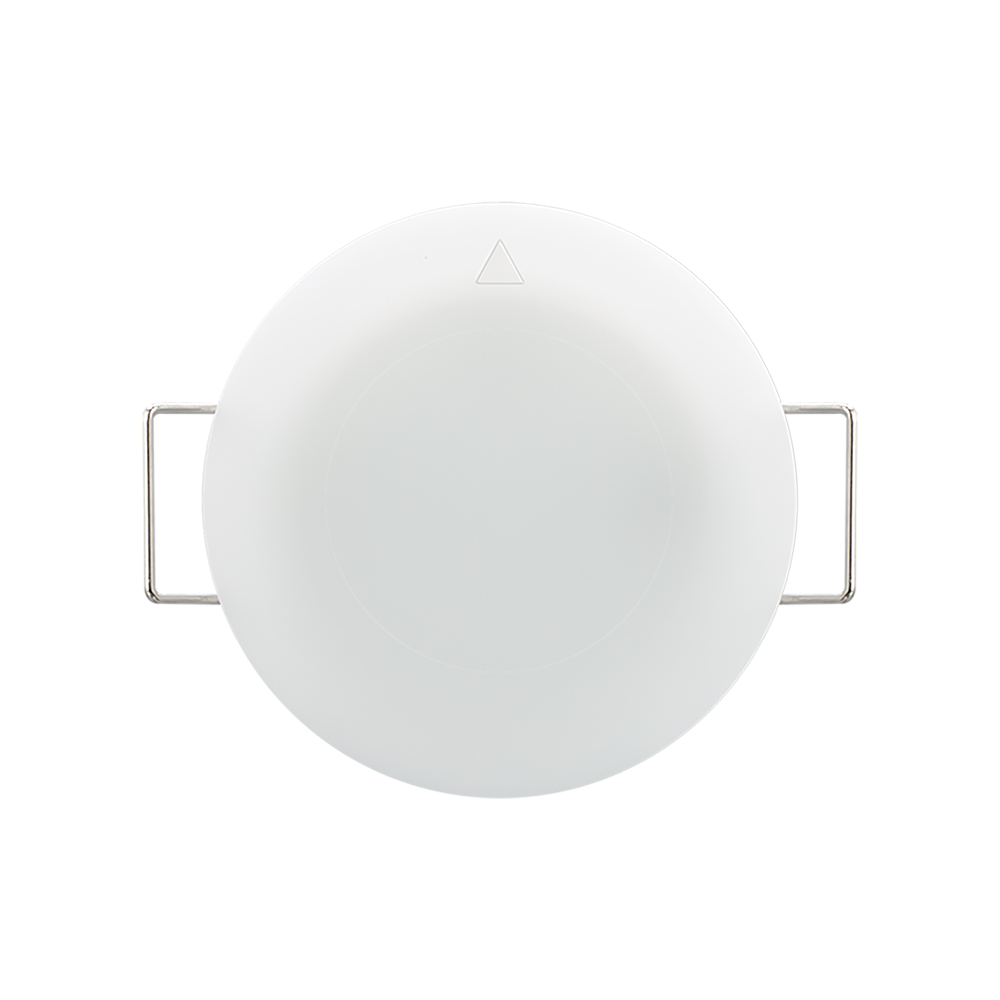

Front View

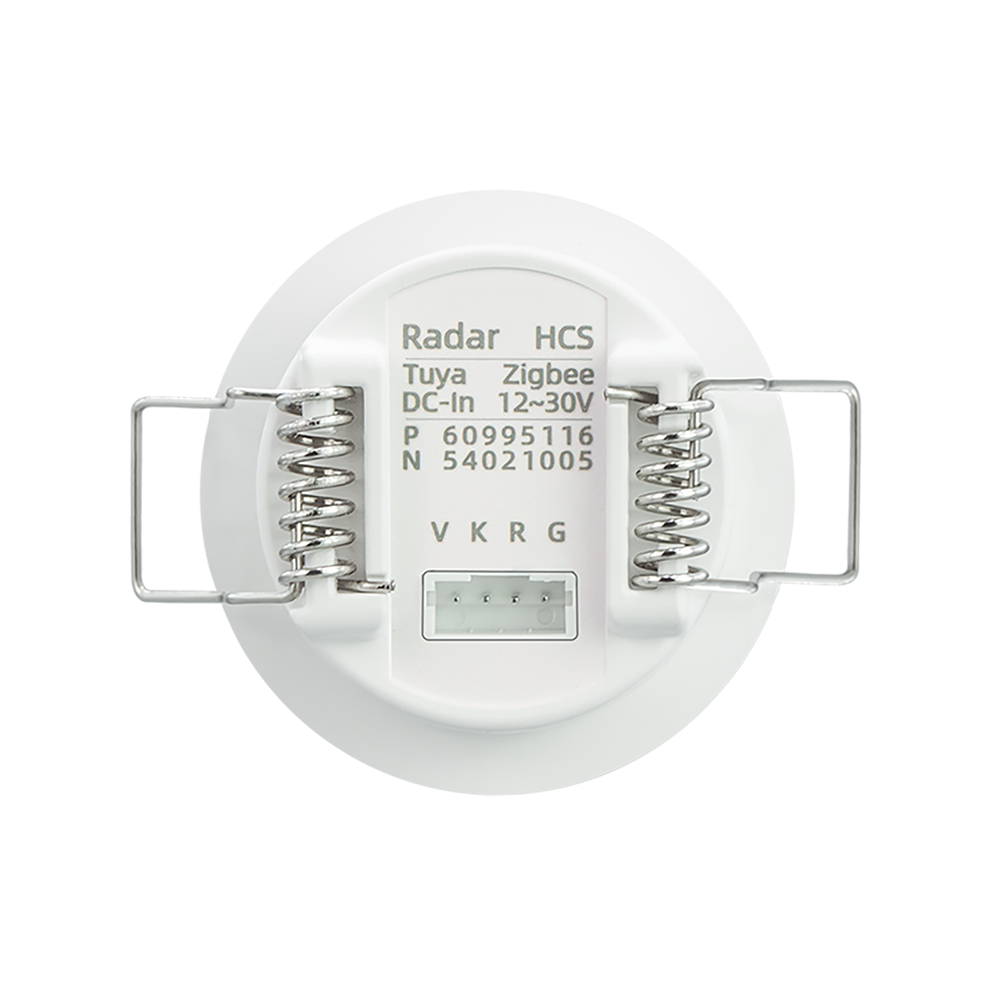

Top View
Dimensions
The product features an outer diameter of 43 mm and a depth of 25 mm, requiring a 35 mm cutout. Designed for recessed installation, it requires a minimum ceiling depth of 10 cm.
Product Dimensions
Applications
HomeHotelLightingOfficeSecurityApplication
Mounting
Environmental Requirements: Avoid moving objects, direct light, and reflections. Dark materials reduce sensitivity.Ensure the lens remains free of heavy soiling or scratches, as this may compromise detection accuracy.
Unpacking: Unpack carefully and inspect contents immediately. Dispose of packaging per local regulations.
Electrical Safety: Disconnect power. Use certified cables with circuit protection. Do not touch internal components.
Wiring Safety: Mount at least 30 cm above the floor with 1 meter clearance from walls or obstacles. Ensure an unobstructed view of the detection zone.
Disclaimer: Specifications subject to change without notice. No liability assumed for improper installation.
Wiring Diagram
Debugging
IR Remote Control
Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.
Tuya Smart
Tuya is a global IoT cloud platform and one-stop AIoT solution that provides standardized modules and software support, enabling hardware manufacturers to quickly make traditional products smart and connect them to a rich cloud ecosystem and custom apps.
