The CTL-SEN-Mini/5116 is a compact, high-precision motion sensor powered by advanced 5.8G High-Bay radar technology. Designed for discreet, premium applications, it features a miniature form factor (Φ35 mm cutout) while supporting mounting heights of up to 12.0 m with a robust detection diameter of 15.0 m. It integrates a high-precision lux sensor (0–32,000 Lux) for advanced lighting automation.
Features
Capable of installation at heights up to 12m, providing reliable coverage for warehouses, lobbies, and gyms.
Accurately identifies major motion and minor motion.
Sensitivity and detection range can be adjusted independently.
Integrated high-precision sensor for accurate indoor illuminance monitoring.
Adjustable lighting threshold.
Supports parameter configuration and status readout via IR remote control.
Indicator LED brightness automatically adjusts to ambient light levels.
Powered by a proprietary module with advanced signal processing algorithms.
Specifications
Communication Type
TY-Zigbee
Input Voltage
DC 12 to 30 V
Power Consumption
0.5 W (Max)
Indicator Light
LED
Detection Mode
5.8G High-Bay Radar
Operating Frequency
5.725 to 5.875 GHz
Transmit Power
≤ 10 dBm
Installation Method
Recessed Ceiling Mount
Mounting Height
2.0 to 12.0 m
Detection Angle
360°
Detection Coverage
Achieves a micro-motion detection diameter of at least 15.0 m at 12.0 m height
Detection Range
1.5 to 25.0 m (sensor to target)
Sensitivity
0 to 100%
Illuminance Monitoring
0 to 32,000 Lux (Accuracy ±4%)
Delay Time
1 to 3,600 seconds
Product Size
Φ43 mm × 25 mm
Cutout Size
Φ35 mm
Product Weight
16.5 g
Cable Assembly
UL1007 22AWG Cable Length: 150 mm
Operating Environment
Indoor -20 to 45°C Humidity < 95% RH (Non-condensing)
Storage Temperature
-40 to 85°C
Protection Level
IP20
Housing Material
PC
Range
Specially engineered for large spaces with flexible high-altitude mounting support, this high-bay radar motion sensor offers varying horizontal detection diameters depending on the installation height: approximately 10.0 meters at 3.0 meters, 12.0 meters at 8.0 meters, and up to 15.0 meters at a maximum installation height of 12.0 meters.

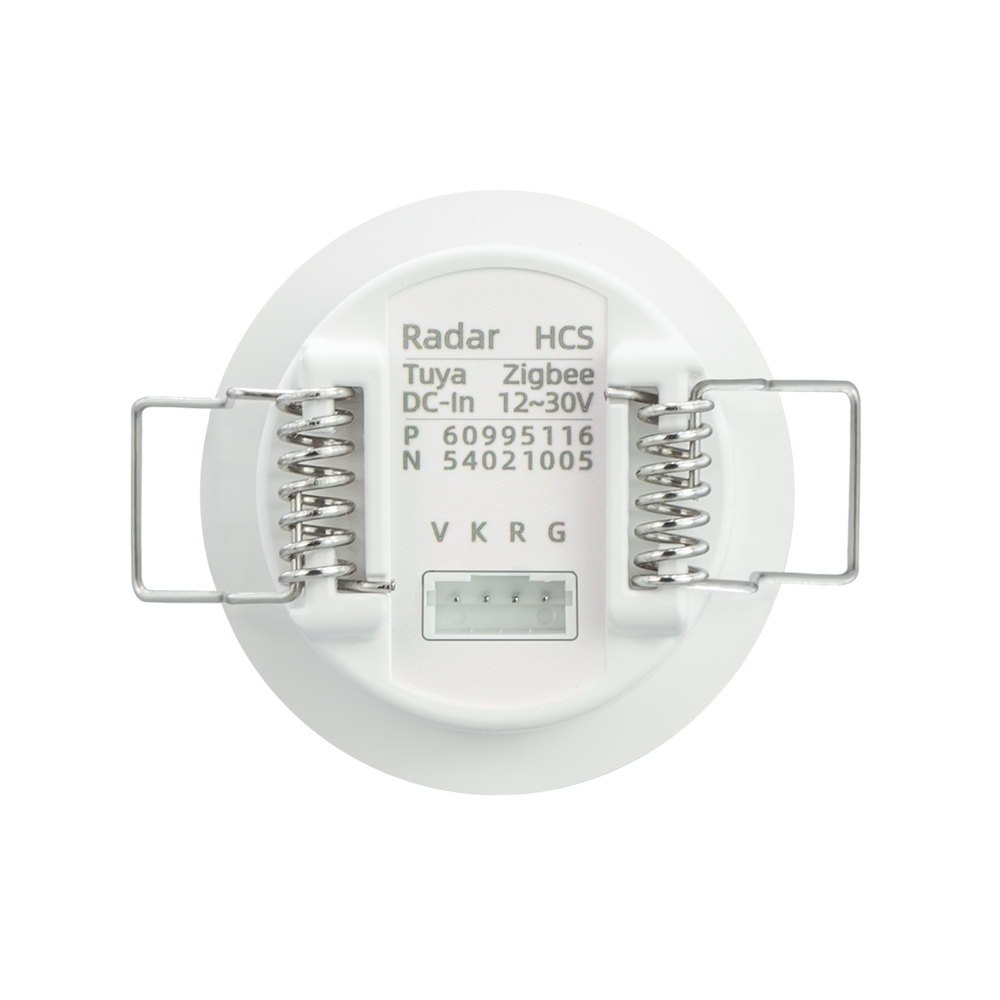

Front View

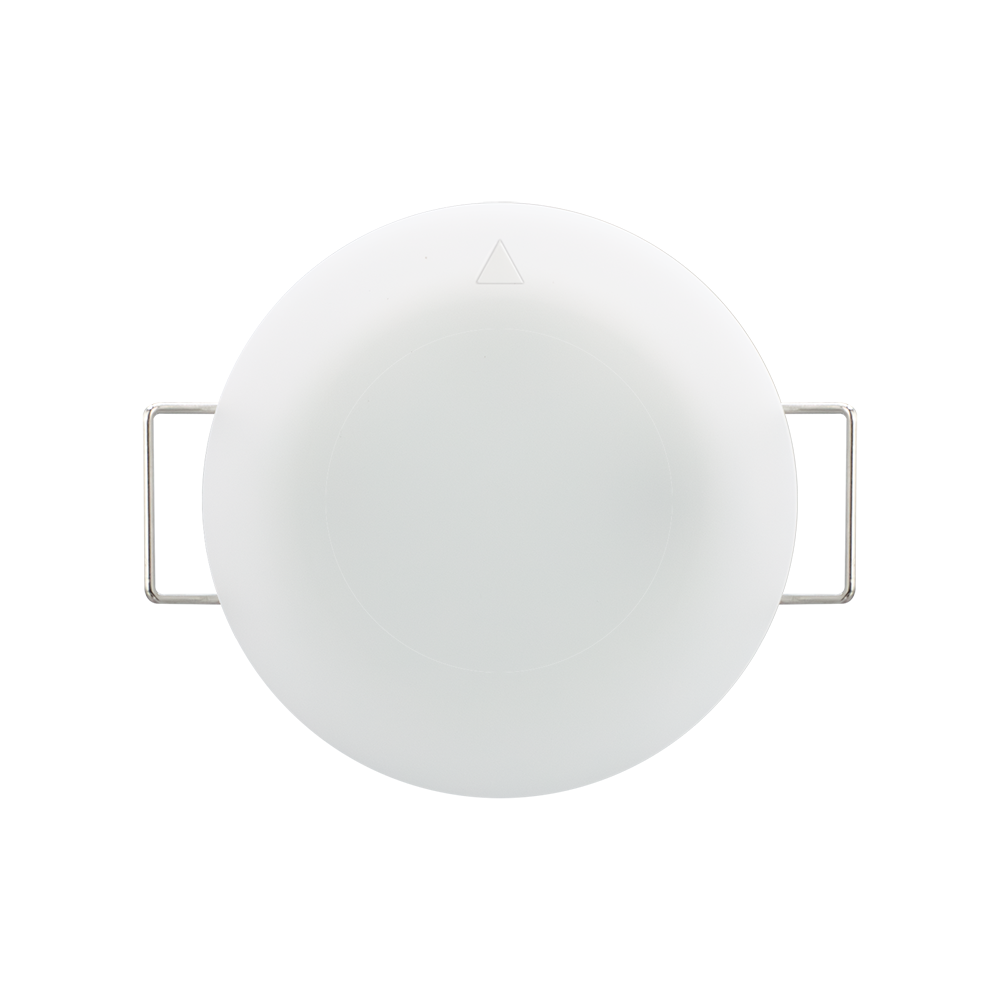

Top View

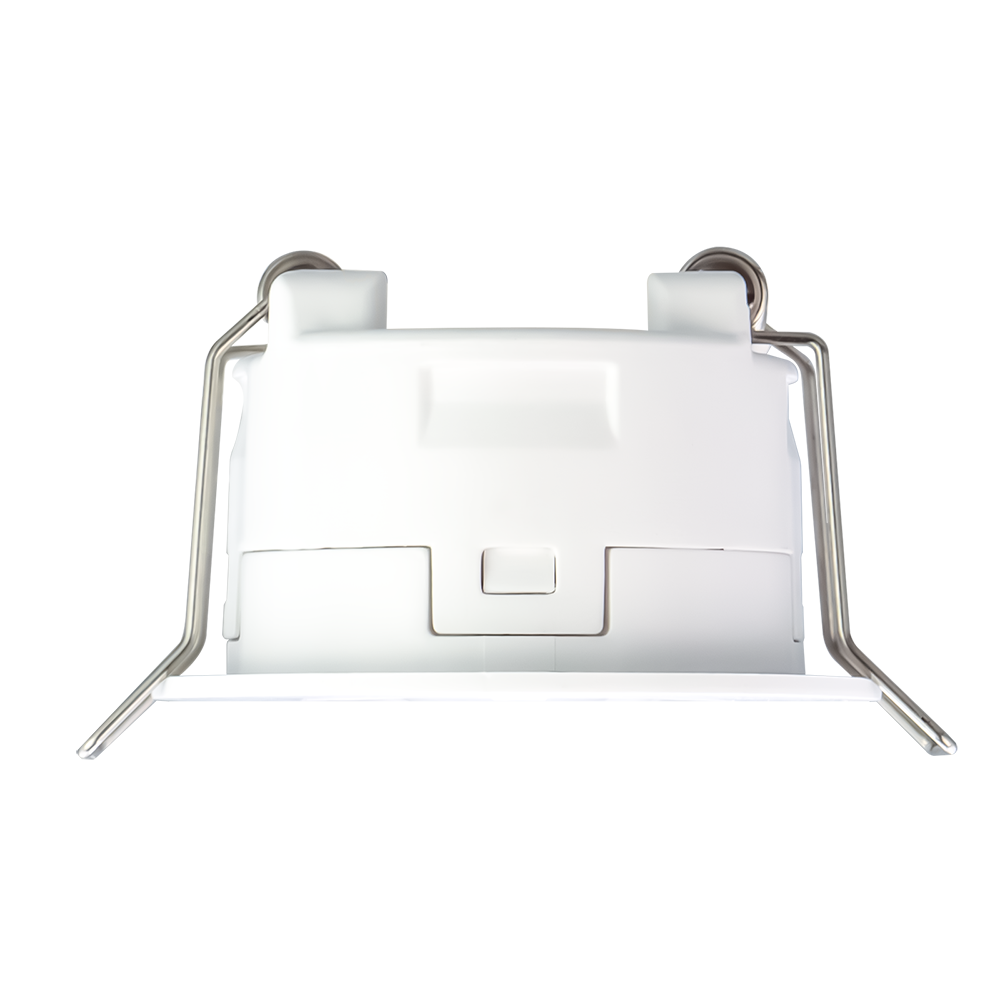

Dimensions

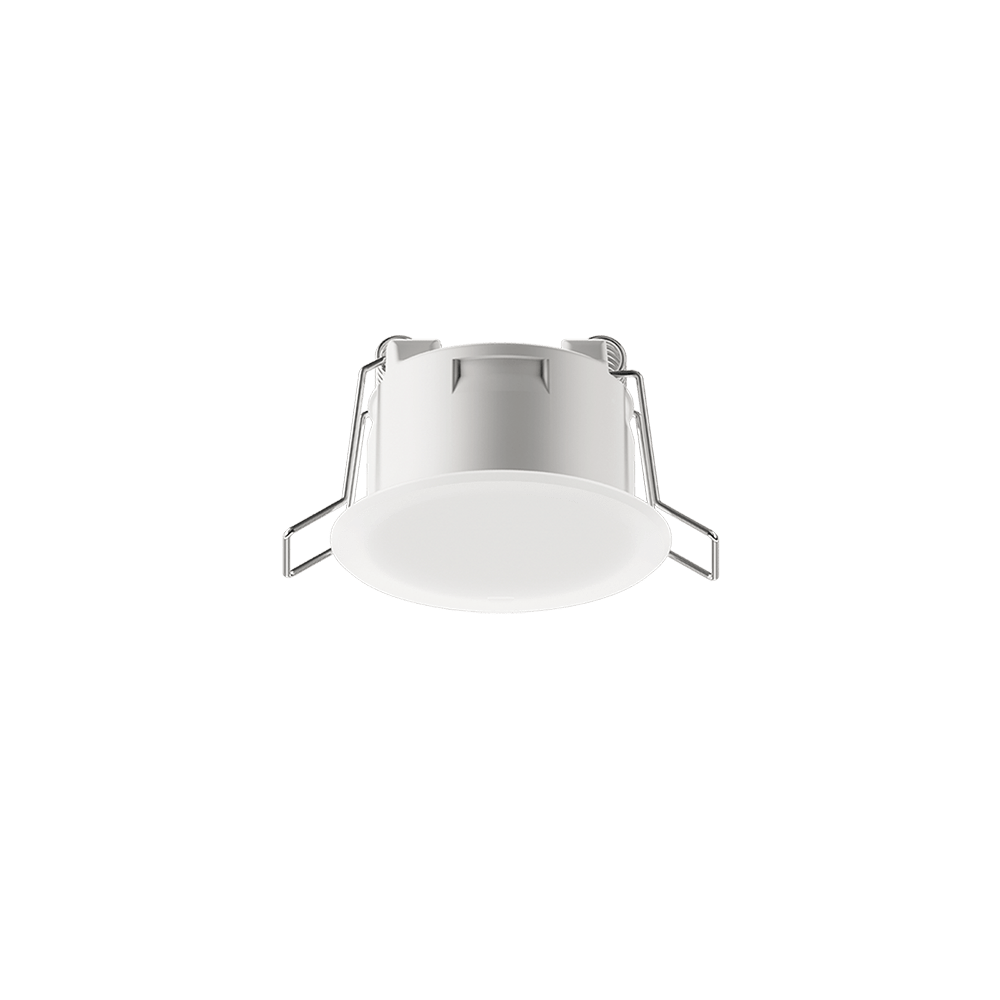

Measuring 43 mm in diameter and 25 mm in depth, this recessed unit fits a 35 mm cutout. Optional kits allow for surface, wall, or universal bracket mounting.
Product Dimensions
Applications
HomeHotelLightingOfficeSecurityApplication
Mounting
Interference Avoidance: Avoid installing near constantly moving objects (e.g., curtains, plants) or large reflective surfaces (e.g., metal ducts, mirrors) to minimize false alarms or unintended triggering.
Device Spacing: Maintain a minimum distance of 4 m between multiple sensors to prevent mutual interference.
Mounting: Ensure the installation surface is vibration-free. Note that radar signals can penetrate non-metallic surfaces; avoid moving objects directly behind the installation wall/ceiling.
Wiring Safety: Disconnect power before wiring. Use certified cables and ensure the circuit includes appropriate short-circuit and overload protection.
Disclaimer: Product specifications are subject to change without prior notice for improvement purposes. Please follow all wiring diagrams strictly. The manufacturer is not liable for issues caused by improper installation.
Wiring Diagram
Debugging
IR Remote Control
Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.
