Home > Mini Series > 60992226F20-Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
1/1
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)

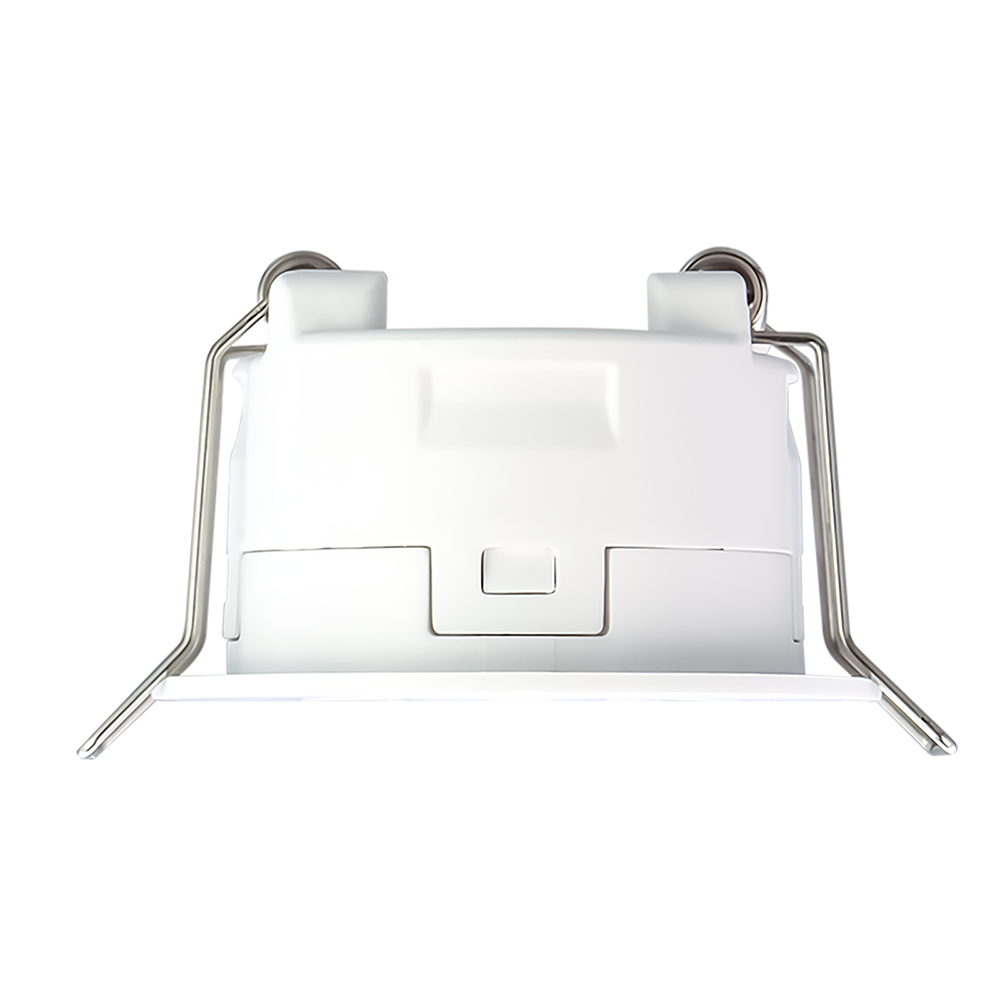

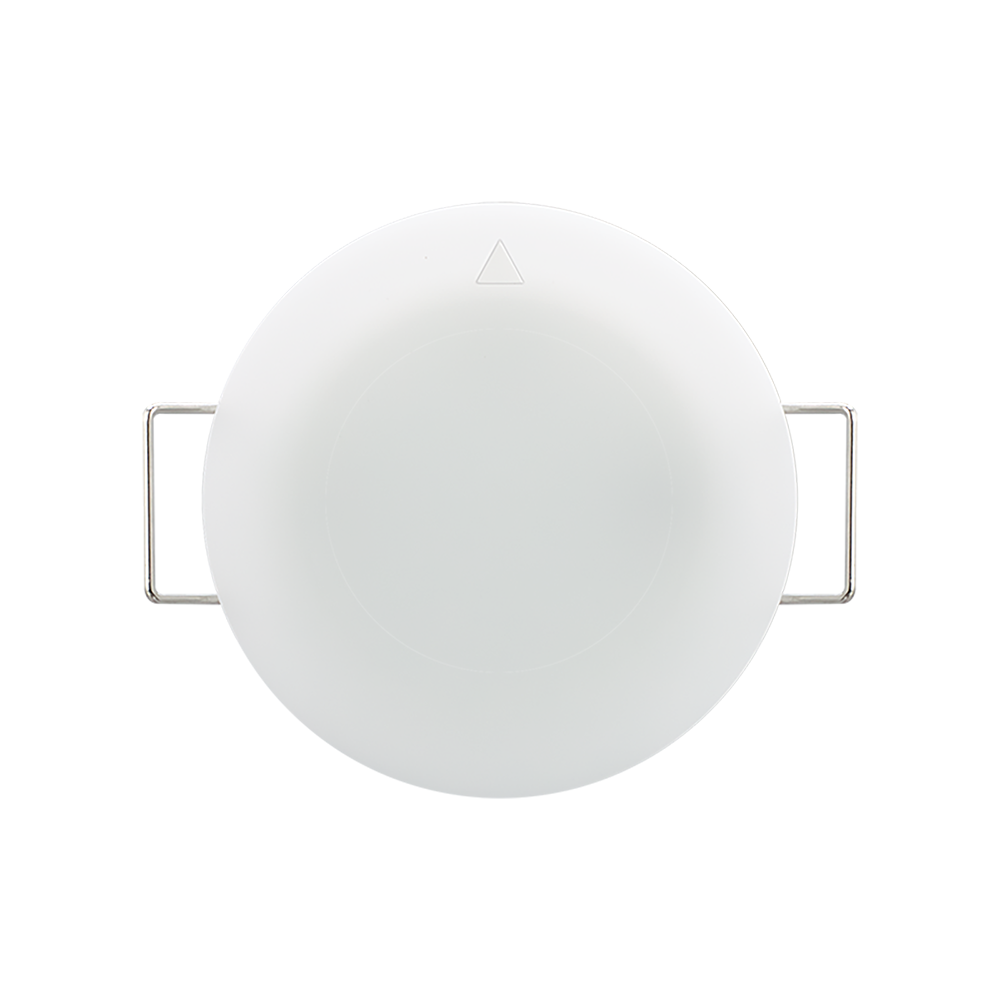

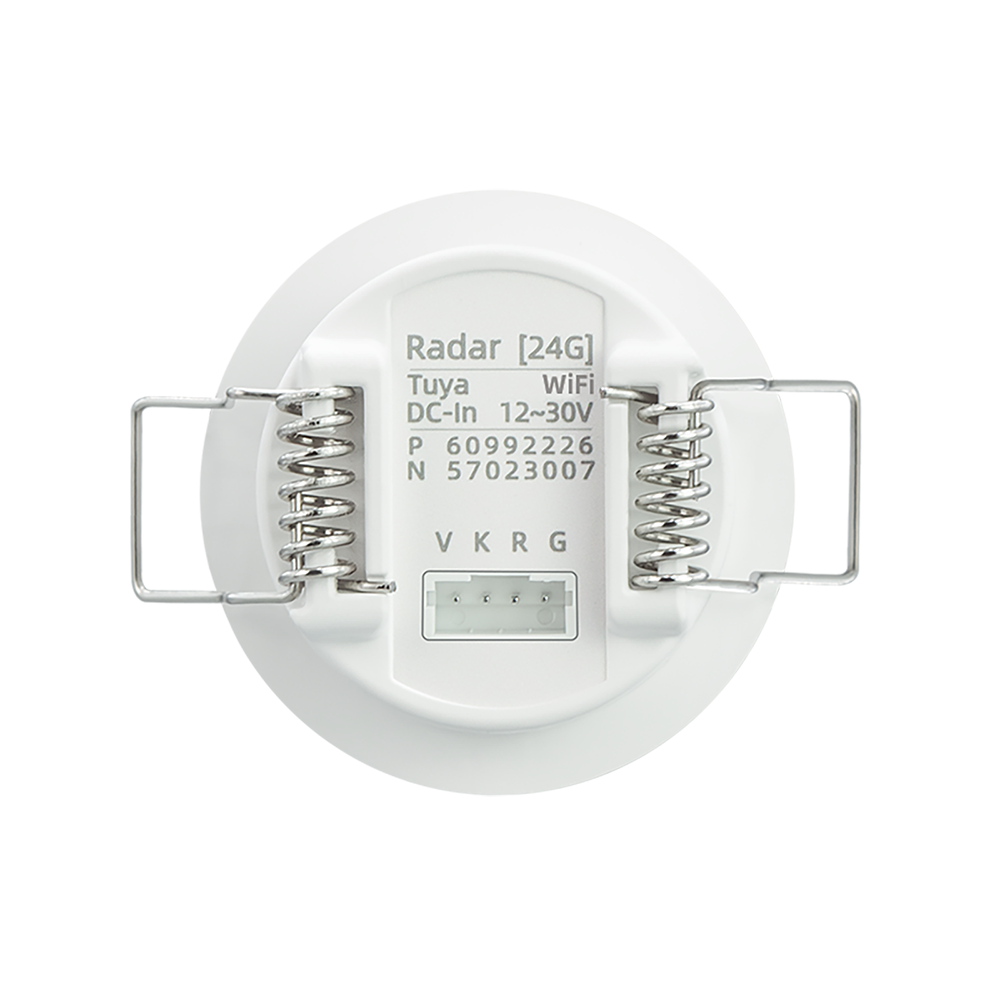

Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)

No.Mini-24G-TYZ/S1+
SKU: 60.99.2226.F20
Product Model: CTL-SEN-Mini/2226.F20

Accurate detection of presence and minor motion states

Equipped with 24GHz FMCW radar detection technology, it can accurately capture human presence and subtle motion states, providing intelligent control solutions for Tuya system projects.It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.

Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ8m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Power Input: AC100~240V
Output: 1 Channel Switch (300W)
Communication: Tuya-WiFi
4.9 (39 Reviews)
14879 Sold
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (74)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
1/1
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)
  • Mini 24G Radar Presence Sensor (Tuya WiFi & Switch 300W)

Creatrol Algorithm

Creatrol Algorithm
Presence Detection

Presence Detection
24GHz FMCW Radar

24GHz FMCW Radar
Lux Sensing

Lux Sensing
Color Temperature

Color Temperature
  • Description
  • Features
  • Resources
  • Accessories

      Precise Presence Detection

Utilizing 24GHz FMCW frequency-modulated continuous wave radar technology, it can accurately detect the presence and slight movement states of the human body, including the subtle movements of chest and abdomen expansion during breathing.

      Supports the Tuya System

This sensor can seamlessly integrate into the Tuya system, enabling intelligent control of lighting devices, including smart switches, dimming, and making full use of natural light. The openness, modularity, and versatility of the Tuya system allow this sensor to perform excellently in residential, commercial, and industrial applications.

      Built-in Digital Illuminance Measurement Chip

This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human presence and breathing but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control.

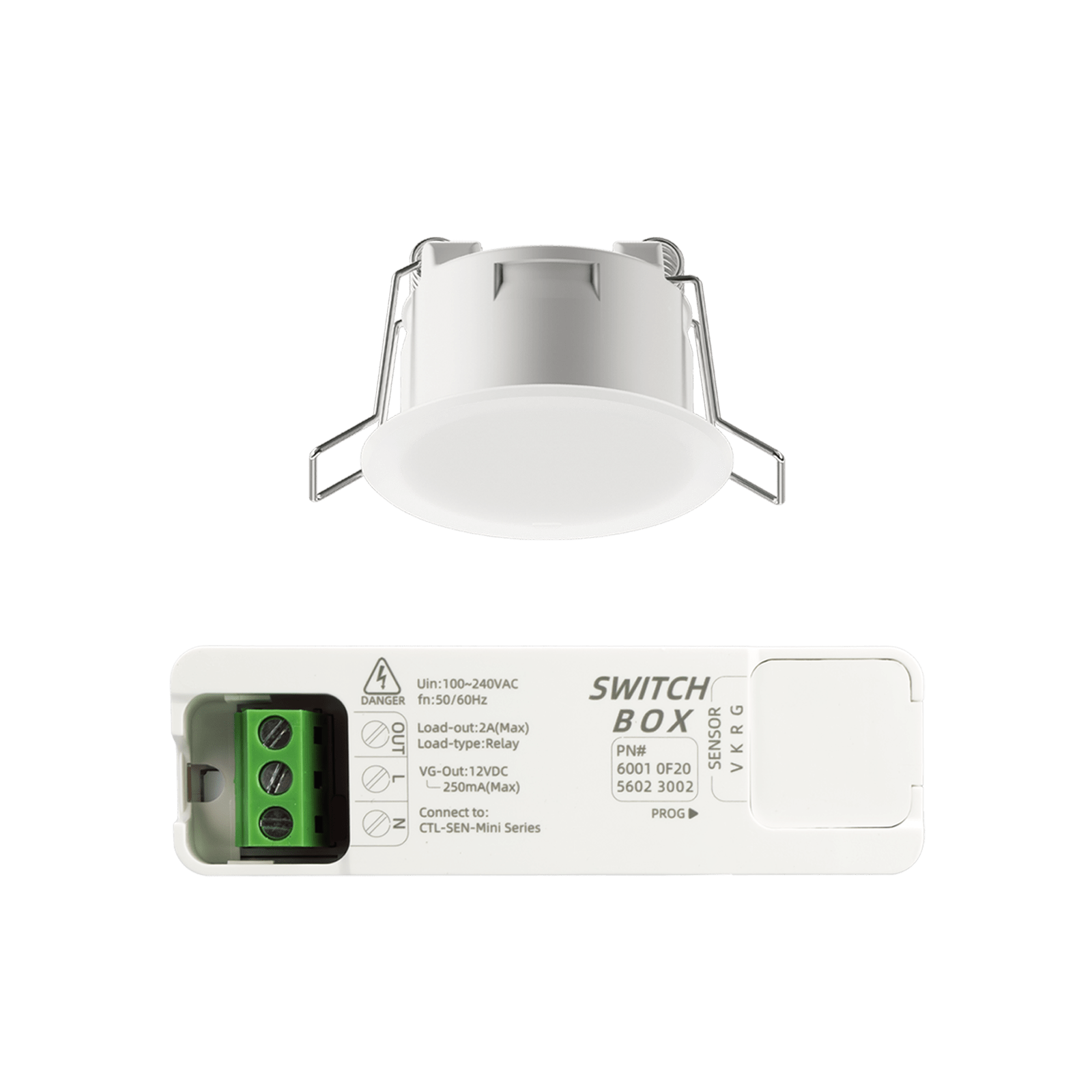

      Directly Switch a Lighting Circuit

This sensor can directly switch a lighting circuit with a maximum load of 300W. This means that regardless of the smart scenario it is used in, the sensor can switch the lighting based on detected human presence and motion status, achieving energy savings and automated management.

      Ultra Small Size

This sensor features a super small 35mm opening and a 25mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment.

      Multiple Installation Methods

It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods

      Rich Application Scenarios

Suitable for various scenarios such as homes, schools, office buildings, and parking lots, achieving precise energy-saving control with lights turning on when someone is present and off when no one is there; also applicable in hotel RCU guest control systems for card-free power supply.

Designation Value
Detection Mode 24GHz millimeter wave radar
FMCW (Frequency Modulated Continuous Wave)
Installation Height 2.0 ~ 4.0 meters
Detection Angle  360°
Detection Range When the installation height is 2.5 ~ 3.5 meters
① Micro - motion and motion detection diameter ≤ φ 8.0 meters
② Maximum diameter for peaceful detection ≤ φ 6.0 meters
Detection Distance 1.5 ~ 8.0 meters (0 ~ 100%)
Detection Sensitivity 0 ~ 100%
Illuminance Sensing 0 ~ 32000 Lux (Accuracy ± 4%）
Product Dimensions φ43mm * 35mm * 25mm
Hole Size φ35mm Depth ≥ 100mm
Sensor Weight 18g
Box Weight 43g
Sensor Power Input
 DC 12V (Power consumption < 0.5W)
Working Environment Temperature -20 ~ 45 ℃ Humidity < 95%
LED Indicator
① The configuration command received will flash for 3 seconds
② The indicator light will remain on constantly when someone is detected, and its brightness will automatically adjust according to the ambient light
③ The off mode can be set (the indicator light will not light up even when someone is detected)
Guides & Manuals
Spec Sheet: Mini-24G-TYW-S1                      PDF PDF下载
Guides & Manuals
Spec Sheet: Mini-24G-TYW-DC                      PDF PDF下载
Accessories for Installation
Mini-65 Mini-Embedded Parts
Max 65mm Opening
Remedial Ring

For Oversize Holes:
Secure Installation
 Embedded Parts
Frameless Installation

For Wall/Ceiling Pre-Install:
Flush & Invisible
