Home > Mini Series > 60992216-Mini 24G Radar Presence Sensor (Tuya Zigbee DC)
  • Mini 24G Radar Presence Sensor (Tuya Zigbee DC)
1/1
  • Mini 24G Radar Presence Sensor (Tuya Zigbee DC)

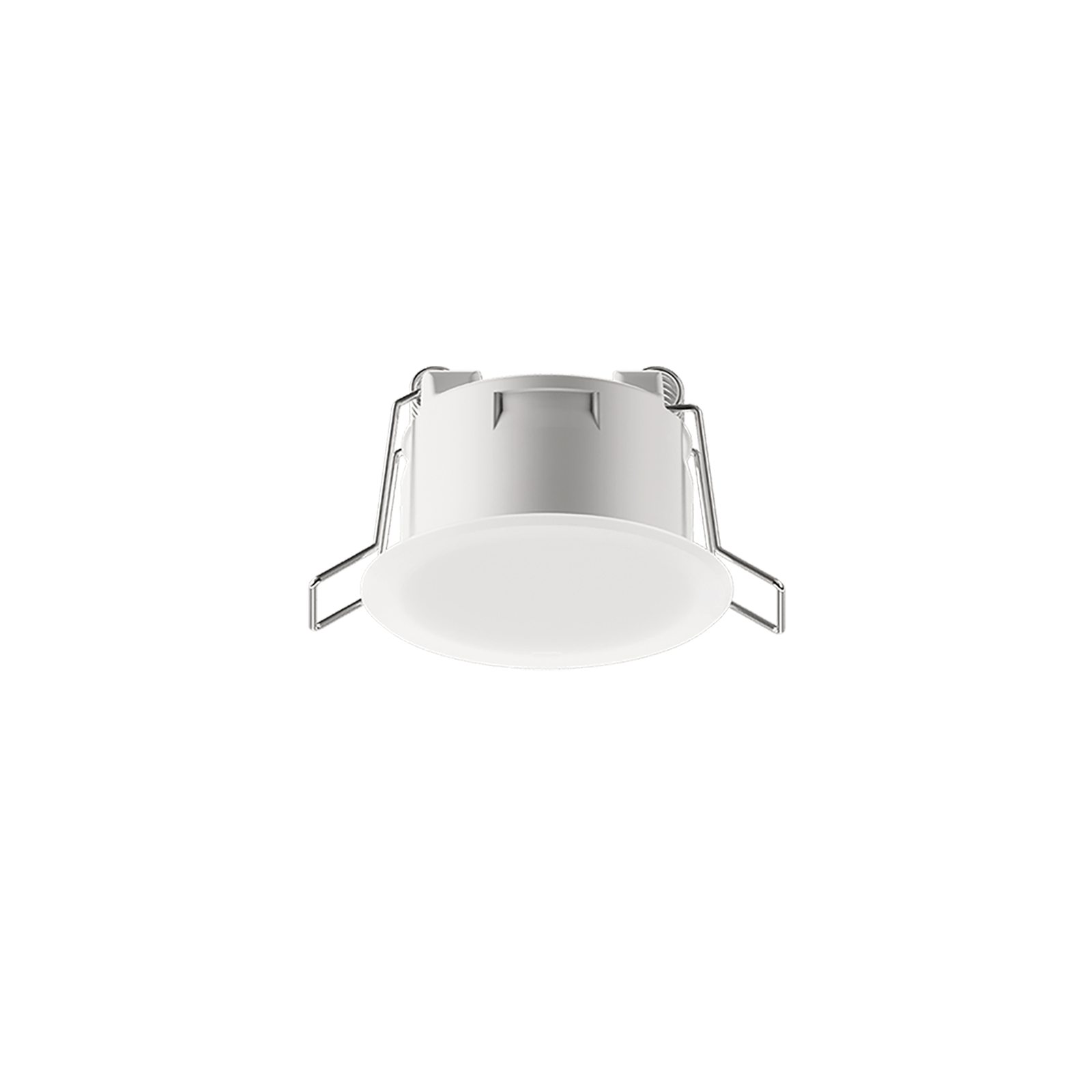

Mini 24G Radar Presence Sensor (Tuya Zigbee DC)

No.Mini-24G-TYZ/DC
SKU: 60.99.2216
Product Model: CTL-SEN-Mini/2216


Accurate detection of presence and minor motion states

Equipped with 24GHz FMCW radar detection technology, it can accurately capture human presence and subtle motion states, providing intelligent control solutions for Tuya system projects.It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.


Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ8m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Power Input: DC12~30V
Communication: Tuya-Zigbee
4.9 (39 Reviews)
14879 Sold
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (74)
  • Mini 24G Radar Presence Sensor (Tuya Zigbee DC)
  • Mini 24G Radar Presence Sensor (Tuya Zigbee DC)
1/1
  • Mini 24G Radar Presence Sensor (Tuya Zigbee DC)

Creatrol Algorithm

Creatrol Algorithm
Presence Detection

Presence Detection
24GHz FMCW Radar

24GHz FMCW Radar
Lux Sensing

Lux Sensing
Color Temperature

Color Temperature
  • Description
  • Features
  • Resources
  • Accessories

      Precise Presence Detection

Utilizing 24GHz FMCW frequency-modulated continuous wave radar technology, it can accurately detect the presence and slight movement states of the human body, including the subtle movements of chest and abdomen expansion during breathing.

      Supports the Tuya System

This sensor can seamlessly integrate into the Tuya system, enabling intelligent control of lighting devices, including smart switches, dimming, and making full use of natural light. The openness, modularity, and versatility of the Tuya system allow this sensor to perform excellently in residential, commercial, and industrial applications.

      Built-in Digital Illuminance Measurement Chip

This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human presence and breathing but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control.

      FMCW Frequency-Modulated Continuous Wave Radar Chip

Utilizing FMCW frequency-modulated continuous wave radar chips, this technology allows the sensor to adjust detection range and sensitivity continuously, adapting to different application scenarios and needs, providing more flexible detection settings.

      Ultra Small Size

This sensor features a super small 35mm opening and a 25mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment.

      Multiple Installation Methods

It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods

      Rich Application Scenarios

Suitable for various scenarios such as homes, schools, office buildings, and parking lots, achieving precise energy-saving control with lights turning on when someone is present and off when no one is there; also applicable in hotel RCU guest control systems for card-free power supply.

Designation Value
Detection Method 24GHz millimeter wave radar
FMCW (Frequency Modulated Continuous Wave)
Installation Height 2.0 ~ 4.0 meters
Detection Angle  360°
Detection Range When the installation height is 2.5 ~ 3.5 meters
① Micro - motion and motion detection diameter ≤ φ 8.0 meters
② Maximum diameter for peaceful detection ≤ φ 6.0 meters
Detection Distance 1.5 ~ 8.0 meters (0 ~ 100%)
Detection Sensitivity 0 ~ 100%
Illuminance Sensing 0 ~ 32000 Lux (Accuracy ± 4%）
Product Dimensions φ43mm * 35mm * 25mm
Hole Size φ35mm Depth ≥ 100mm
Product Weight 18g
Power Input DC 12 ~ 30V (Power consumption < 0.5W)
Working Environment Temperature -20 ~ 45 ℃ Humidity < 95%
Delay Time 1 ~ 3600 seconds
LED Indicator
① The configuration command received will flash for 3 seconds
② The indicator light will remain on constantly when someone is detected, and its brightness will automatically adjust according to the ambient light
③ The off mode can be set (the indicator light will not light up even when someone is detected)
Guides & Manuals
Spec Sheet: Mini-24G-TYZ-DC                      PDF PDF下载

Accessories for Installation
Mini-65 Mini-Embedded Parts Mini-Extermnal
Max 65mm Opening
Remedial Ring

For Oversize Holes:
Secure Installation
 Embedded Parts
Frameless Installation

For Wall/Ceiling Pre-Install:
Flush & Invisible

 No Opening Required
Surface-Mounted Sleeve

For Magnetic Mount:
No Pre-embedding, Multi-surface


Mini-Bracket Mini-86-Panel Mini-90° Bracket
Compatible with External
Detection Surface Angle Adjustable


For Wall or Ceiling Installation (with Mini-Extermnal):
  1. Lock & Anti-Drop, 360° Precise Adjustment
86 Wall-Mounted Panel
Easy Installation

For Wall Mount (86-type Box/Opening Compatible)：
Solve Sensor Adhesion Instability & Aesthetic Issues
Surface Mounting 90° Bracket

For Wall/Ceiling
（with Mini-Extermnal）:
Easy Surface Mount + 90° Directional Support
