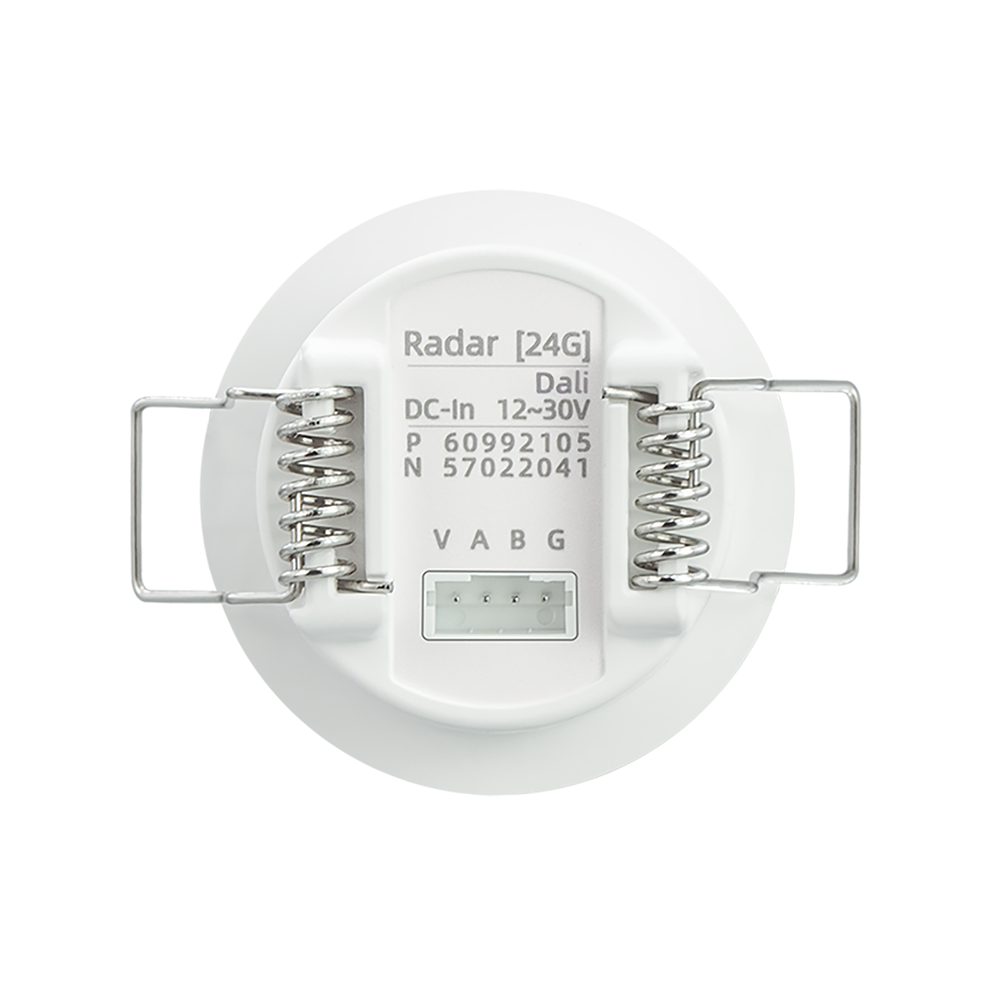

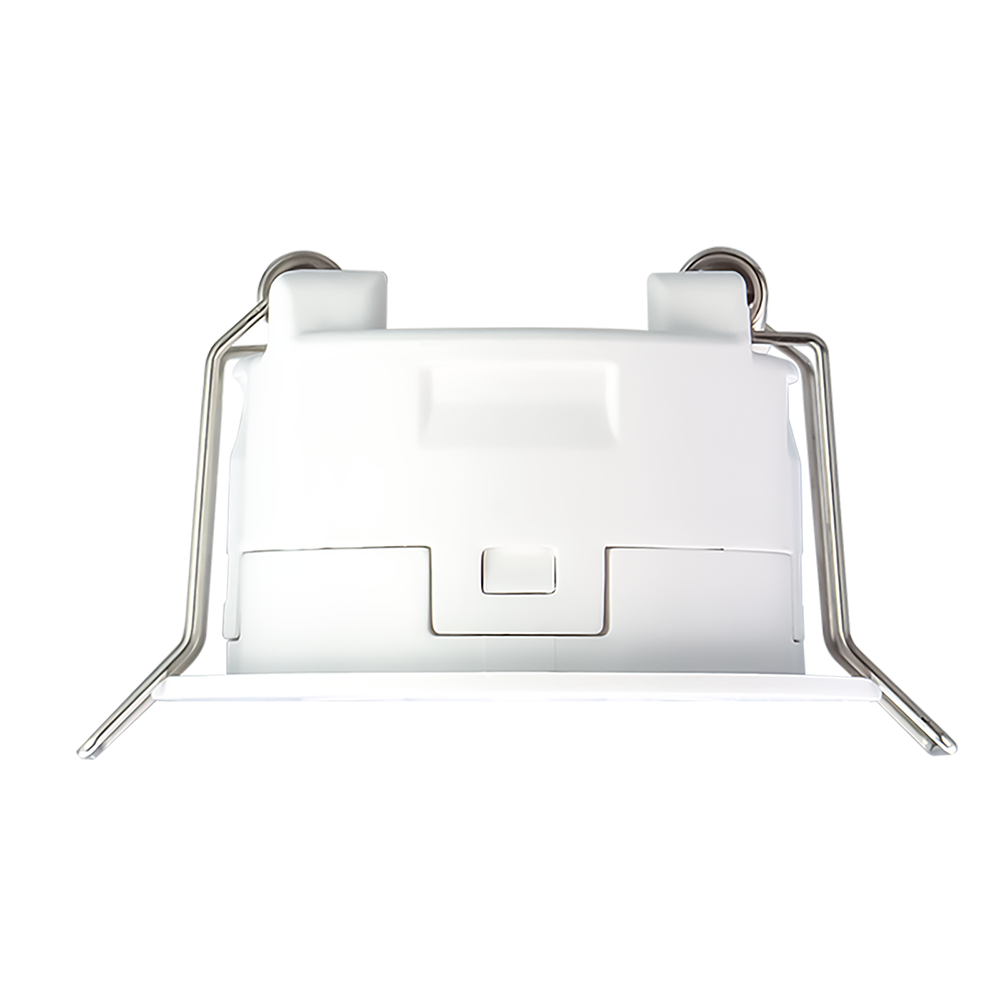

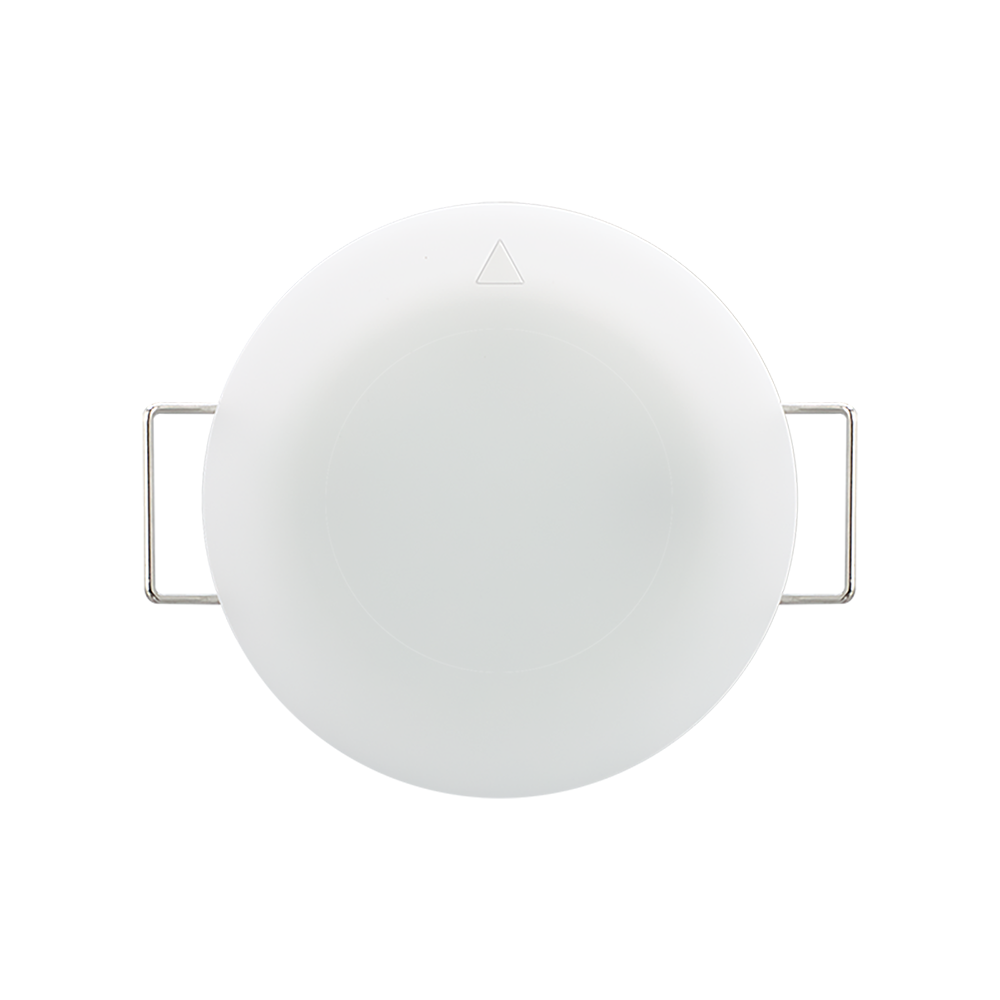

Mini 24G Radar Presence Sensor (DALI Light Control)

No.Mini-24G-DALI/LTC
SKU: 60.99.2105.F51
Product Model: CTL-SEN-Mini/2105.F51

Accurate detection of presence and minor motion states

It is a mmWave radar sensor capable of detecting human presence, equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol's exclusive algorithm to confirm human status by assessing breathing patterns. It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.

Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ8m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Power Input: AC100~240V

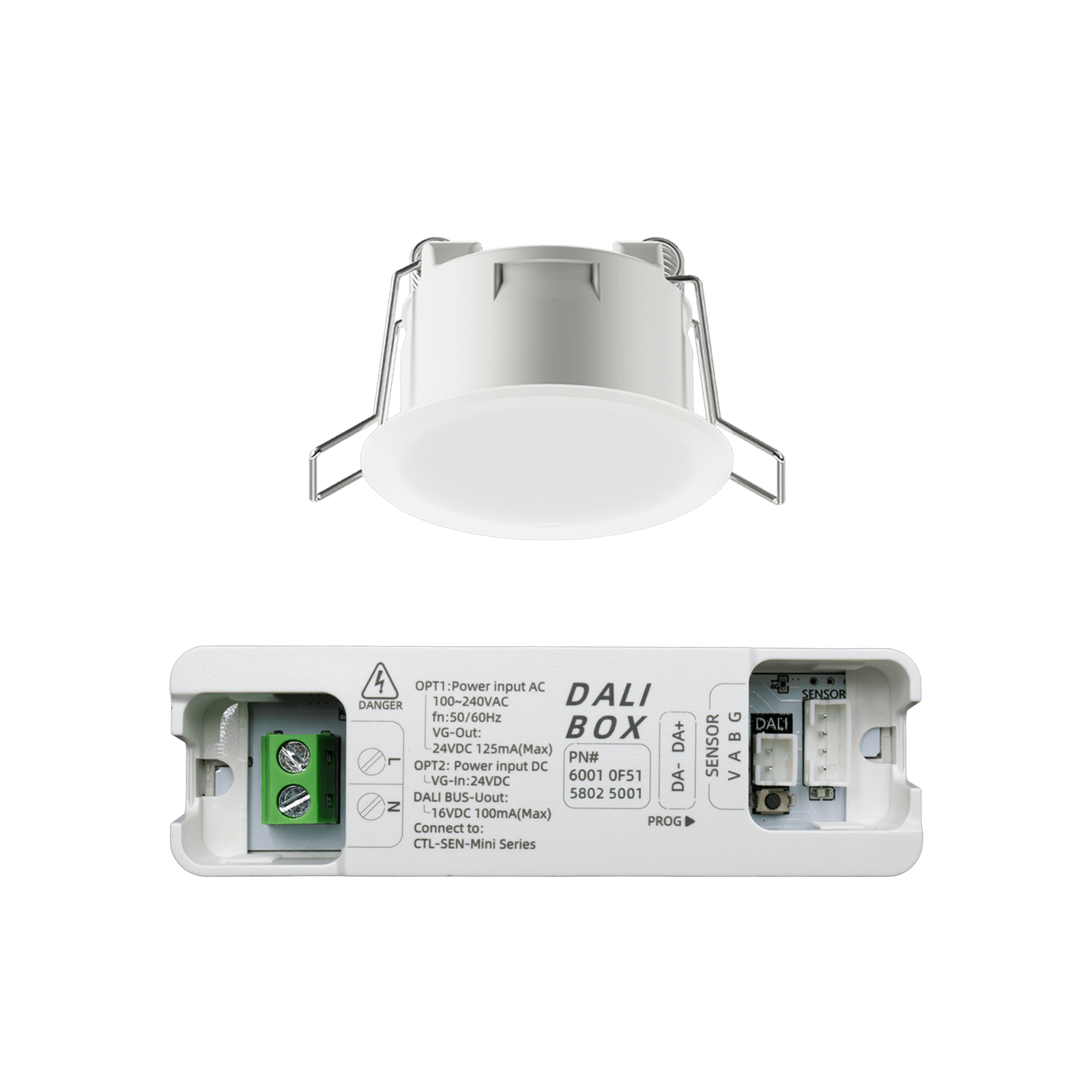

Interface: DALI + 16V/100mA (Output)
4.9 (39 Reviews)
14879 Sold
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (74)
  • Mini 24G Radar Presence Sensor (DALI Light Control)
  • Mini 24G Radar Presence Sensor (DALI Light Control)
  • Mini 24G Radar Presence Sensor (DALI Light Control)
  • Mini 24G Radar Presence Sensor (DALI Light Control)
  • Mini 24G Radar Presence Sensor (DALI Light Control)
  • Mini 24G Radar Presence Sensor (DALI Light Control)
  • Mini 24G Radar Presence Sensor (DALI Light Control)
  • Mini 24G Radar Presence Sensor (DALI Light Control)
1/1
  • Mini 24G Radar Presence Sensor (DALI Light Control)
  • Mini 24G Radar Presence Sensor (DALI Light Control)
  • Mini 24G Radar Presence Sensor (DALI Light Control)
  • Mini 24G Radar Presence Sensor (DALI Light Control)

Creatrol Algorithm

Creatrol Algorithm
Presence Detection

Presence Detection
24GHz FMCW Radar

24GHz FMCW Radar
Lux Sensing

Lux Sensing
Color Temperature

Color Temperature
  • Description
  • Features
  • Resources
  • Accessories

      Precise Presence Detection

Utilizing 24GHz FMCW frequency-modulated continuous wave radar technology, it can accurately detect the presence and slight movement states of the human body, including the subtle movements of chest and abdomen expansion during breathing.

      Designed Specifically for Smart Lighting Control Scenarios

It can accurately detect human presence and subtle movements, confirm human status by analyzing breathing patterns, and monitor ambient light intensity in real-time to automatically adjust lighting brightness. The product supports integration with the DALI system, achieving single control of 64 lighting circuits, providing flexible lighting management solutions.

      Built-in Digital Illuminance Measurement Chip

This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human presence and breathing but also monitor the light intensity of the surrounding environment, providing data support for intelligent lighting control.

      FMCW Frequency-Modulated Continuous Wave Radar Chip

Utilizing FMCW frequency-modulated continuous wave radar chips, this technology allows the sensor to adjust detection range and sensitivity continuously, adapting to different application scenarios and needs, providing more flexible detection settings.

      Ultra Small Size

This sensor features a super small 35mm opening and a 25mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment.

      Multiple Installation Methods

It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods

      Rich Application Scenarios

Suitable for various scenarios such as homes, schools, office buildings, and parking lots, achieving precise energy-saving control with lights turning on when someone is present and off when no one is there; also applicable in hotel RCU guest control systems for card-free power supply.

Designation Value
Detection Mode 24GHz millimeter wave radar
FMCW (Frequency Modulated Continuous Wave)
Installation Height 2.0 ~ 4.0 meters
Detection Angle  360°
Detection Distance 1.5 ~ 8.0 meters (0 ~ 100%)
Detection Range When the installation height is 2.5～3.5 meters
① Micro - motion and motion detection diameter ≤ 8.0 meters
② Maximum diameter for peaceful detection ≤ 6.0 meters
Detection Sensitivity 0 ~ 100%
Illuminance Sensing 0 ~ 32000 Lux (Accuracy ± 4%）
Sensor Weight 18g
Box Weight 34g
Hole Size φ35mm
Product Size φ43mm * 25mm
Working Environment Temperature -20 ~ 45 ℃ Humidity < 95%
Power Input AC 100 ~ 240V (50 ~ 60Hz) or DC 24V
LED Indicator Light
① The configuration command received will flash for 3 seconds
② The indicator light will remain on constantly when someone is detected, and its brightness will automatically adjust according to the ambient light
③ The off mode can be set (the indicator light will not light up even when someone is detected)

Guides & Manuals
Spec Sheet: Mini-24G-DALI-LTC                      PDF PDF下载
Accessories for Installation
Mini-65 Mini-Embedded Parts
Max 65mm Opening
Remedial Ring

For Oversize Holes:
Secure Installation
 Embedded Parts
Frameless Installation

For Wall/Ceiling Pre-Install:
Flush & Invisible
