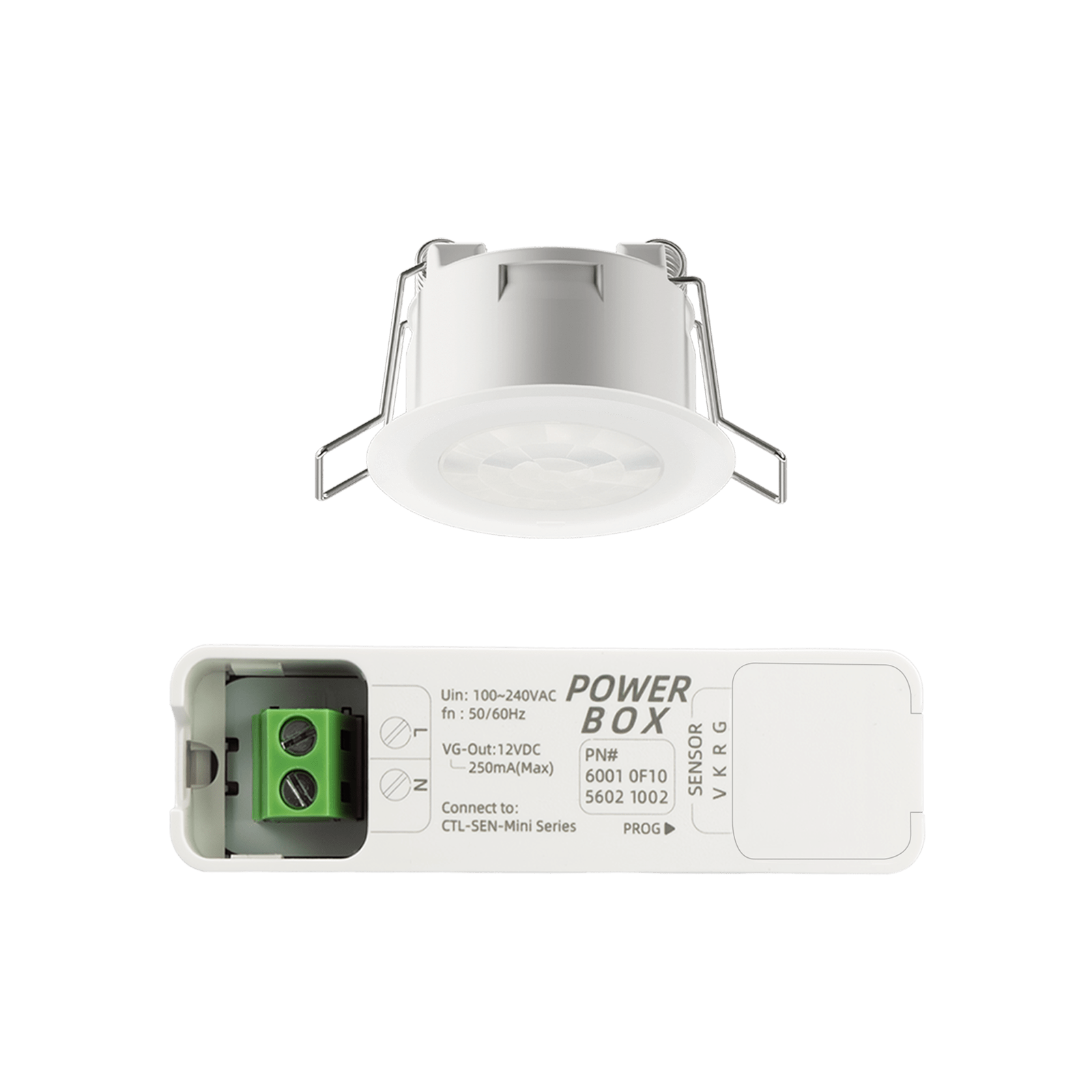

The CTL-SEN-Mini/1216.F61 Series is a compact, high-sensitivity motion sensor powered by precise Passive Infrared (PIR) technology. Designed for discreet, premium applications, it features a miniature form factor (Φ35 mm cutout) while offering a 360° detection diameter of up to 6.0 m. It integrates a high-precision lux sensor (0–32,000 Lux) for energy-efficient lighting automation.
| Communication Type | TY-ZigBee |
| BOX Input Voltage | AC 100 to 240 V |
| BOX Output Voltage | DC 12 V (0.25 A MAX) |
| Sensor Input Voltage | DC 12 V |
| Power Consumption | 0.5 W (Max) |
| Indicator Light | LED |
| Detection Mode | Pyroelectric Infrared Receiver |
| Installation Method | Recessed Ceiling Mount |
| Mounting Height | 2.0 to 3.2 m |
| Detection Angle | 20° |
| Detection Coverage | When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m |
| Illuminance Monitoring | 0 to 32,000 Lux (Accuracy ±4%) |
| Delay Time | 1 to 3,600 seconds |
| Product Size | Φ43 mm x 25 mm |
| Cutout Size | Φ35 mm |
| Product Weight | 14.5 g |
| BOX Size | 84 mm x 26 mm x 21 mm |
| BOX Weight | 30 g |
| Cable Assembly | UL2468 22AWG Cable Length: 200 mm |
| Operating Environment | Indoor -20 to 45°C Humidity < 95% RH (Non-condensing) |
| Storage Temperature | -40 to 85°C |
| Protection Level | IP20 |
| Housing Material | PC |
Interference Avoidance: Avoid installing near moving objects (e.g., pets, swinging curtains) or areas with rapid temperature changes (e.g., AC vents, heat sources) to ensure accuracy and prevent false alarms.
Device Spacing: Maintain at least 4m between sensors.
Mounting: Install on a stable, vibration-free surface. Ensure no moving objects are behind the wall (signals penetrate non-metals).
Wiring Safety: Disconnect power before wiring. Use certified cables and strictly follow the diagram to ensure proper circuit protection.
Disclaimer: Follow wiring diagrams strictly. Manufacturer is not liable for improper installation. Specifications subject to change.
Supports Smart Life Debugging
