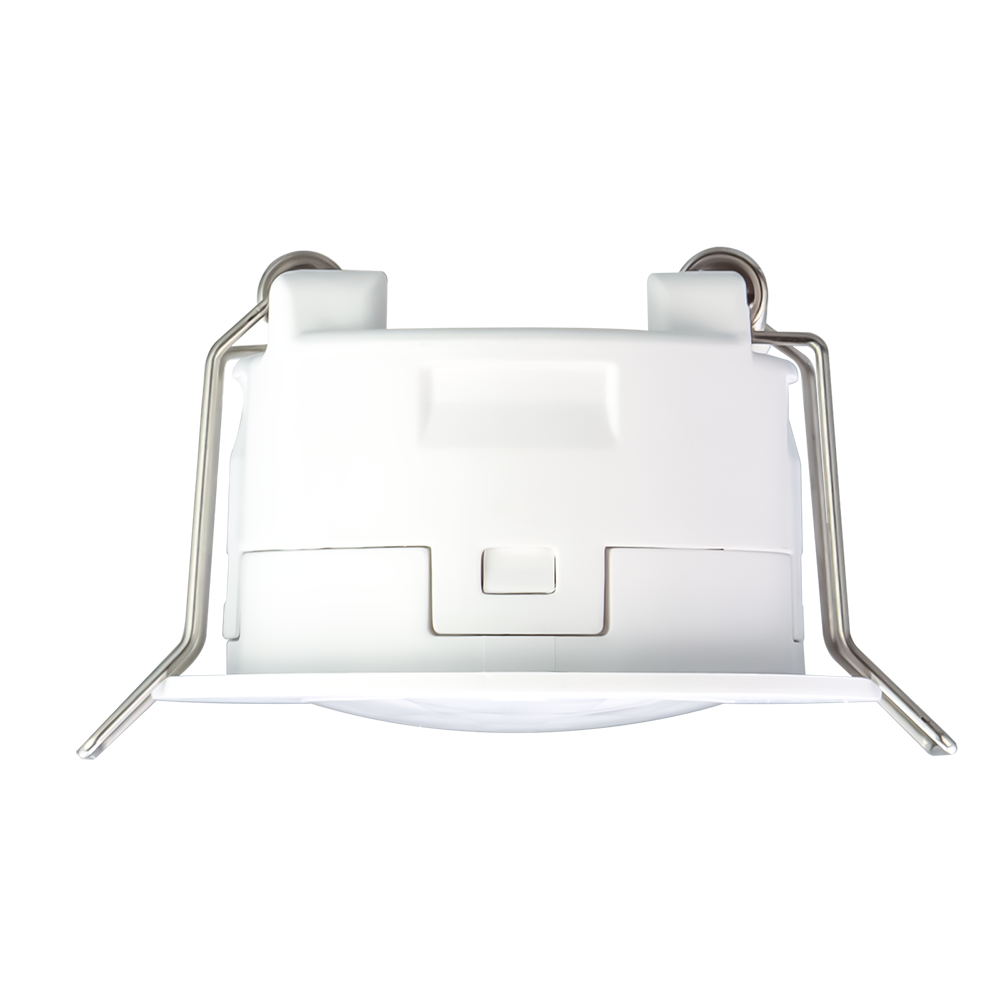

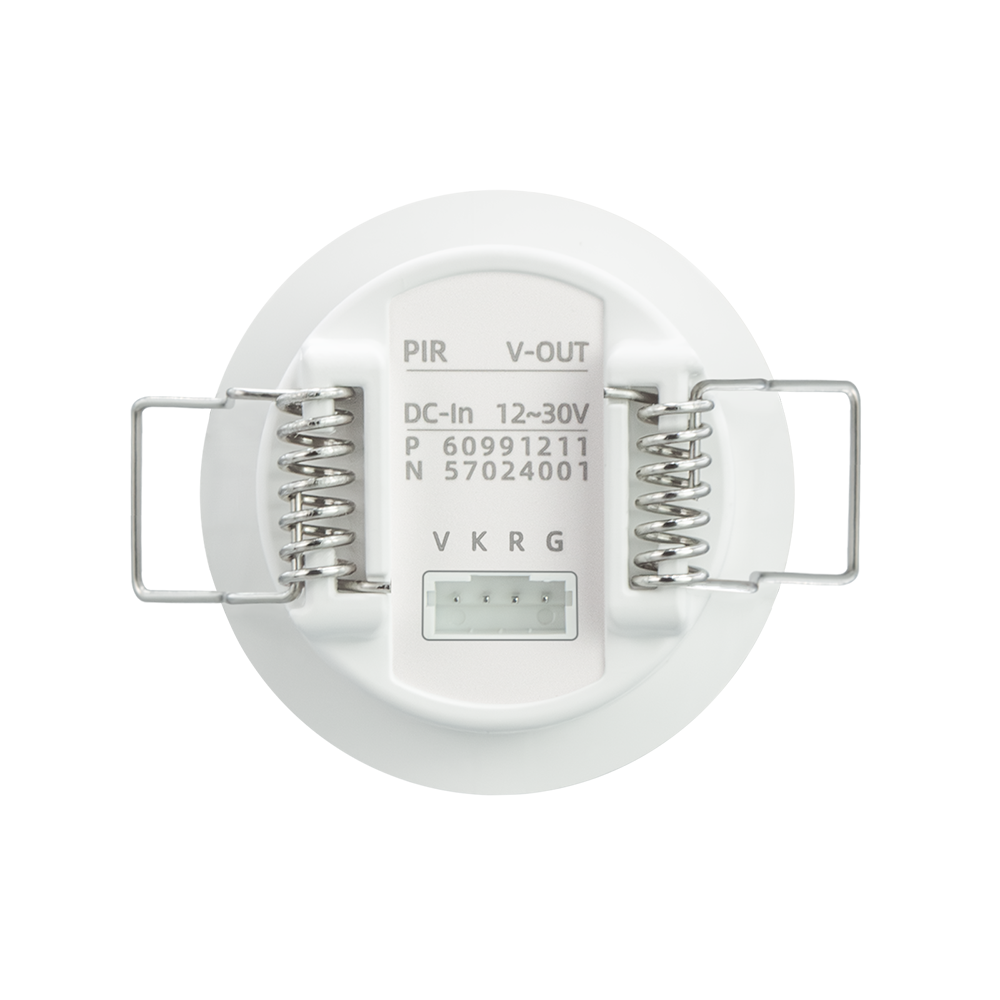

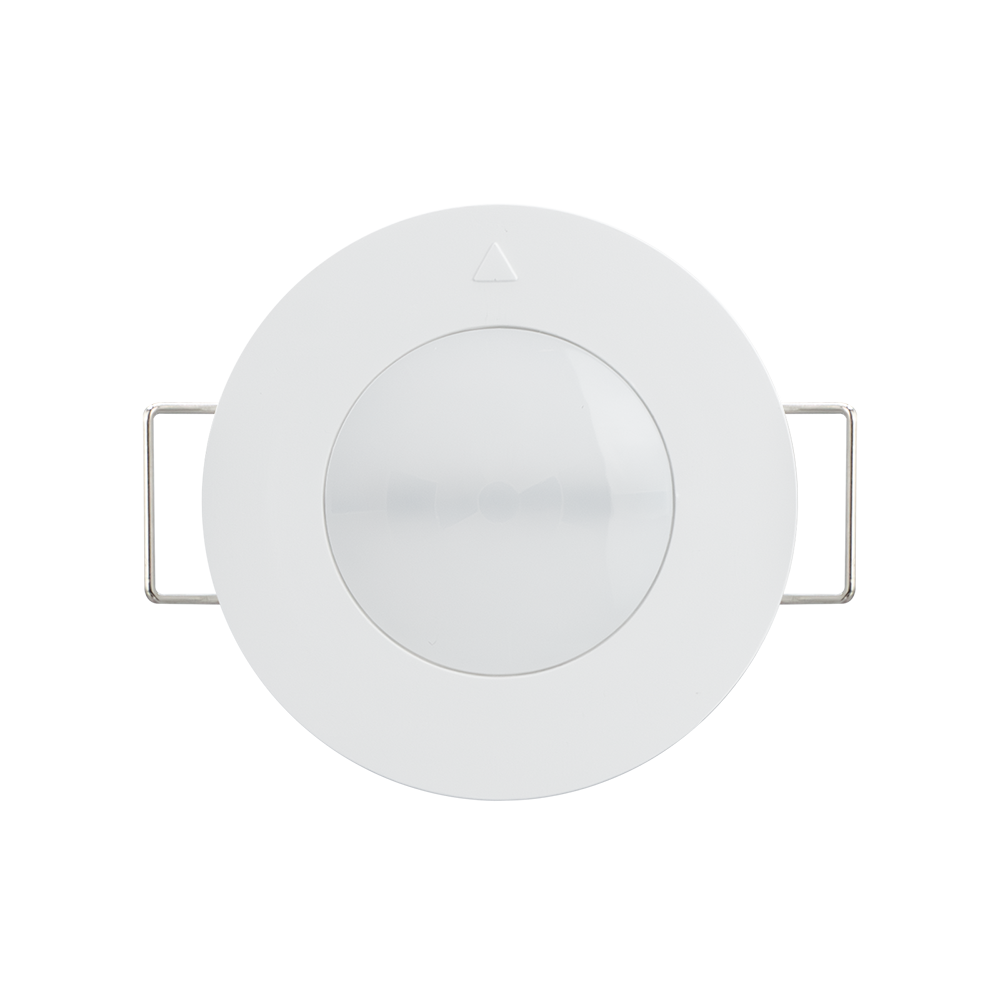

Mini PIR Curtain Motion Sensor (Switch 1KW)

No.Mini-PIR-S1+/20
P/N:
The CTL-SEN-Mini Curtain Series is a specialized precision motion sensor designed for focused area monitoring.
$25.30 $12.60
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    White
    Black
    Please select the information you wantX
Quantity:
-
+
  • Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (Switch 1KW)
1/1
  • Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Mini PIR Curtain Motion Sensor (Switch 1KW),CREATROL SENSOR,Mini PIR Curtain Motion Sensor (Switch 1KW)
  • Description

Overview

The CTL-SEN-Mini Curtain Series is a specialized precision motion sensor designed for focused area monitoring. Building on advanced Passive Infrared (PIR) technology, it incorporates a precision optical shield that limits the detection field to a narrow 20° beam. This creates an invisible "electronic curtain," enabling the sensor to detect movement only within a specific slice of space—such as a doorway, window, or narrow corridor—while completely ignoring activity in adjacent areas. It retains the series' signature compact design and integrates a high-precision lux sensor (0–32,000 Lux) for intelligent, energy-efficient control.

Features

  • Equipped with PIR motion detection.
  • Integrated high-precision sensor for accurate indoor illuminance monitoring.
  • Features 1 relay output
  • Adjustable lighting threshold.
  • Supports parameter configuration and status readout via IR remote control.
  • Indicator LED brightness automatically adjusts to ambient light levels.

Specifications

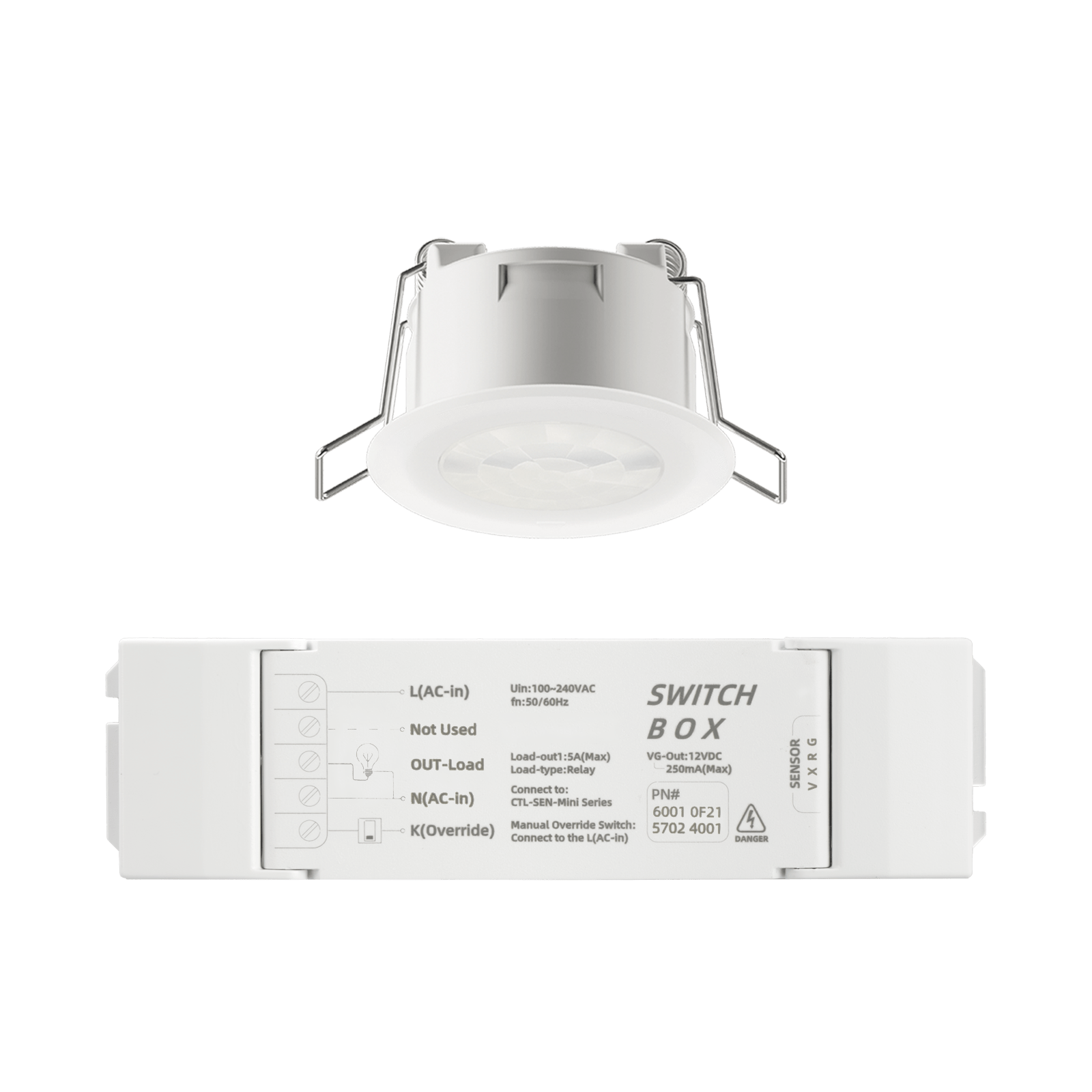

Output Type Mains Output
BOX Input Voltage AC 100 to 240 V
BOX Output Voltage DC 12 V (< 500 mA)
Sensor Input Voltage DC 12 V
Power Consumption 0.5 W (Max)
Relay Output Normally Open Mode
Normally Closed Mode
Relay Load AC 100 to 240 V, ≤ 5 A
Indicator Light LED
Detection Mode Pyroelectric Infrared Receiver
Installation Method Recessed Ceiling Mount
Mounting Height 2.0 to 3.2 m
Detection Angle 360°
Detection Range When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m
Illuminance Monitoring 0 to 32,000 Lux (Accuracy ±4%)
Delay Time 1 to 3,600 seconds
Product Size Φ43 mm × 25 mm
Cutout Size Φ35 mm
Product Weight 14.5 g
BOX Size 121 mm × 35 mm × 26 mm
BOX Weight 88 g
Cable Assembly UL2468 22AWG
Cable Length: 200 mm
Operating Environment Indoor -20 to 45°C
Humidity < 95% RH (Non-condensing)
Storage Temperature -40 to 85°C
Protection Level IP20
Housing Material PC

Range

Engineered with directional narrow-beam detection characteristics, this PIR curtain motion sensor features a long-axis detection angle of 90° and a short-axis (thickness) detection angle of 20°. At a standard mounting height of 3.0 meters, it delivers a bottom detection width of approximately 0.9 meters along the short axis and a maximum coverage span of up to 6.0 meters along the long axis.

Mini-PIR-S1+/20 detection range, Front View
Front View
Mini-PIR-S1+/20 detection range, Side View
Side View

Dimensions

Measuring 43 mm wide and 25 mm deep, this recessed unit fits a 35 mm cutout and requires a minimum ceiling depth of 13 cm.

Product Dimensions
Product Dimensions

Applications

Mini-PIR-S1+/20 application: Home
Home
Mini-PIR-S1+/20 application: Hotel
Hotel
Mini-PIR-S1+/20 application: Lighting
Lighting
Mini-PIR-S1+/20 application: Office
Office
Mini-PIR-S1+/20 application: Security
Security

Mounting

Interference Avoidance: Keep away from moving objects (e.g., curtains, plants) and large metal/reflective surfaces.

Device Spacing: Maintain at least 4m between sensors.

Mounting: Install on a stable, vibration-free surface. Ensure no moving objects are behind the wall (signals penetrate non-metals).

Wiring Safety: Turn off power before wiring. Use certified cables and proper circuit protection.

Disclaimer: Follow wiring diagrams strictly. Manufacturer is not liable for improper installation. Specifications subject to change.

Mini-PIR-S1+/20 wiring diagram
Wiring Diagram

Debugging

IR Remote Control
IR Remote Control

Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.

FAQ

How is the Mini-PIR-S1+/20 installed?

Installation method: Recessed Ceiling Mount. Mounting height: 2.0 to 3.2 m.

What is the detection coverage of the Mini-PIR-S1+/20?

Detection range: When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m. Detection angle: 360°.

How is the Mini-PIR-S1+/20 configured on site?

The Mini-PIR-S1+/20 supports quick on-site configuration and parameter reading with an infrared (IR) remote control, so commissioning and maintenance do not depend on a smart home platform.

What are the operating conditions of the Mini-PIR-S1+/20?

Operating environment: Indoor -20 to 45°C; Humidity < 95% RH (Non-condensing). Protection level: IP20.
