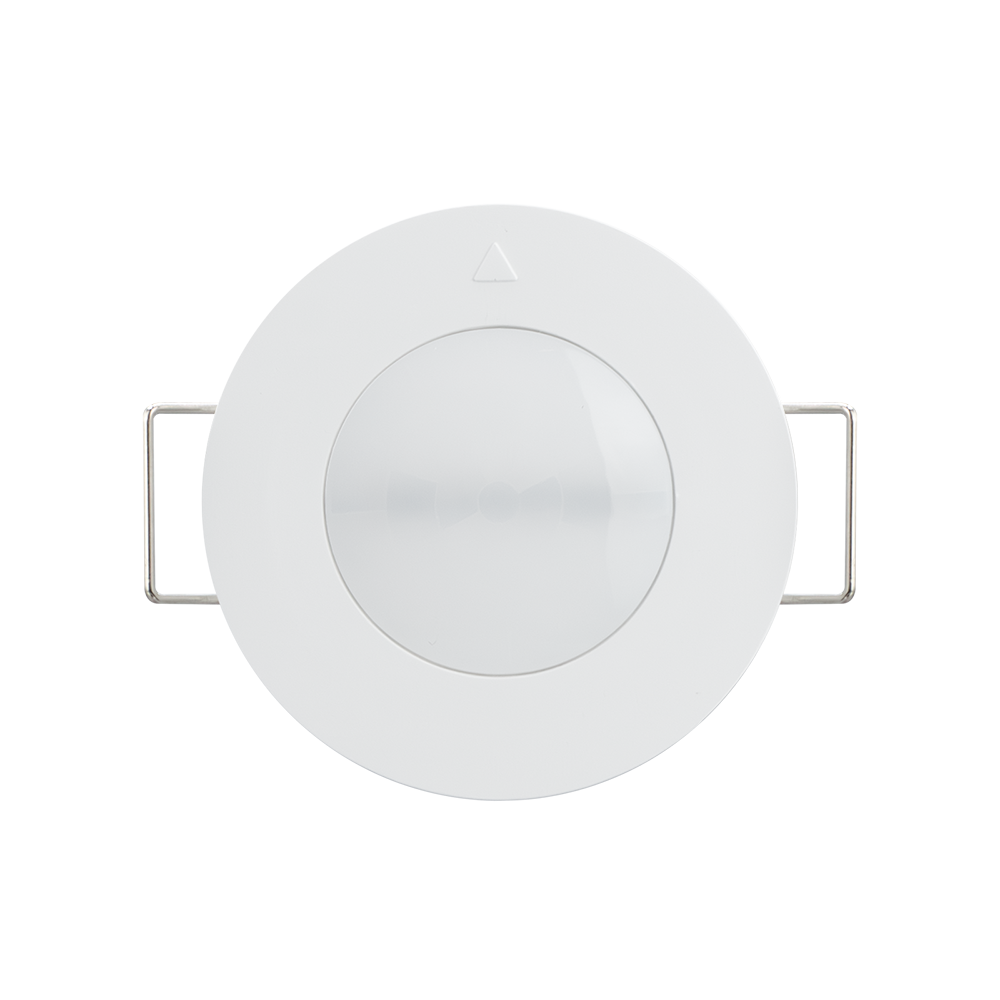

The CTL-SEN-Mini Curtain Series is a specialized precision motion sensor designed for focused area monitoring. Building on advanced Passive Infrared (PIR) technology, it incorporates a precision optical shield that limits the detection field to a narrow 20° beam. This creates an invisible "electronic curtain," enabling the sensor to detect movement only within a specific slice of space—such as a doorway, window, or narrow corridor—while completely ignoring activity in adjacent areas. It retains the series' signature compact design and integrates a high-precision lux sensor (0–32,000 Lux) for intelligent, energy-efficient control.

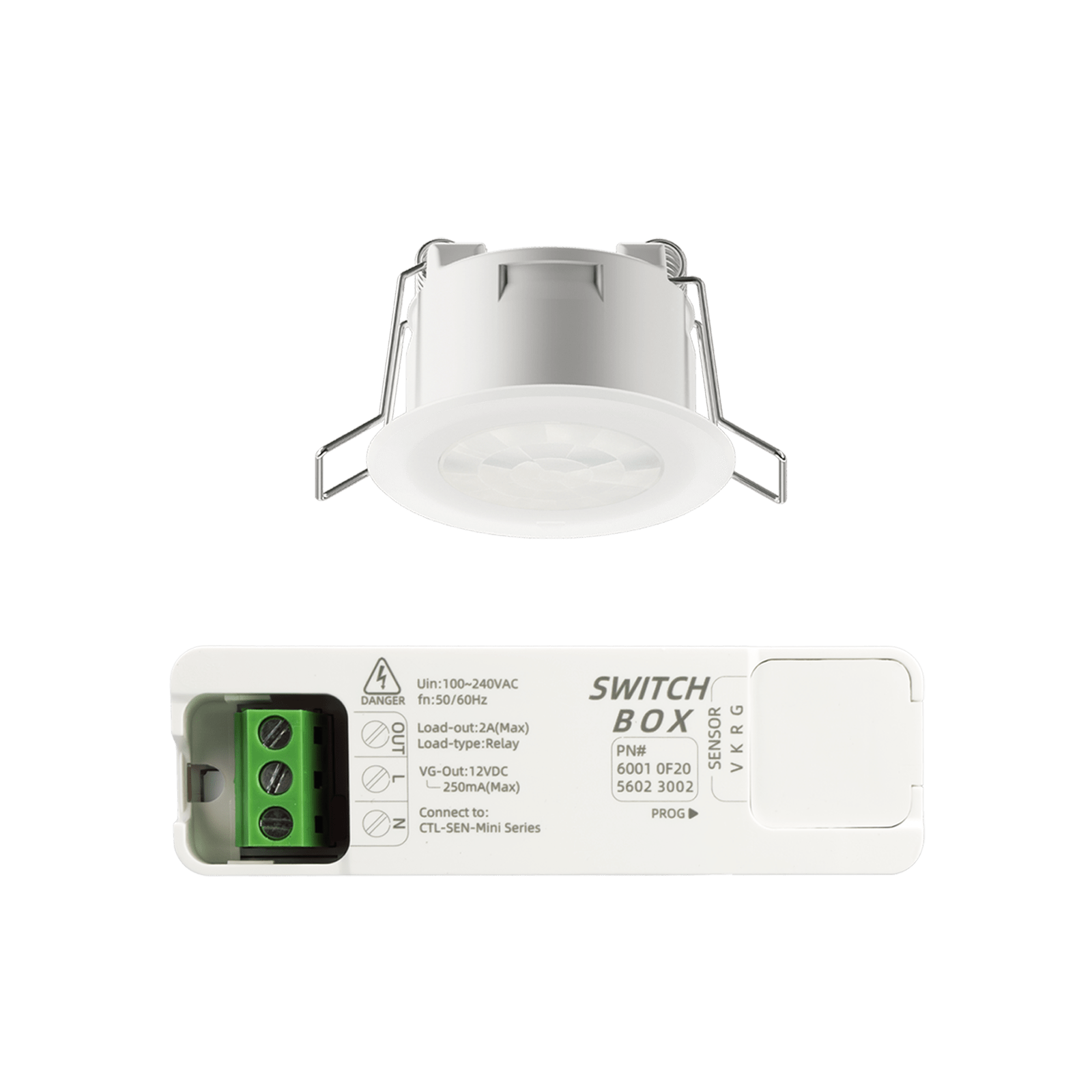

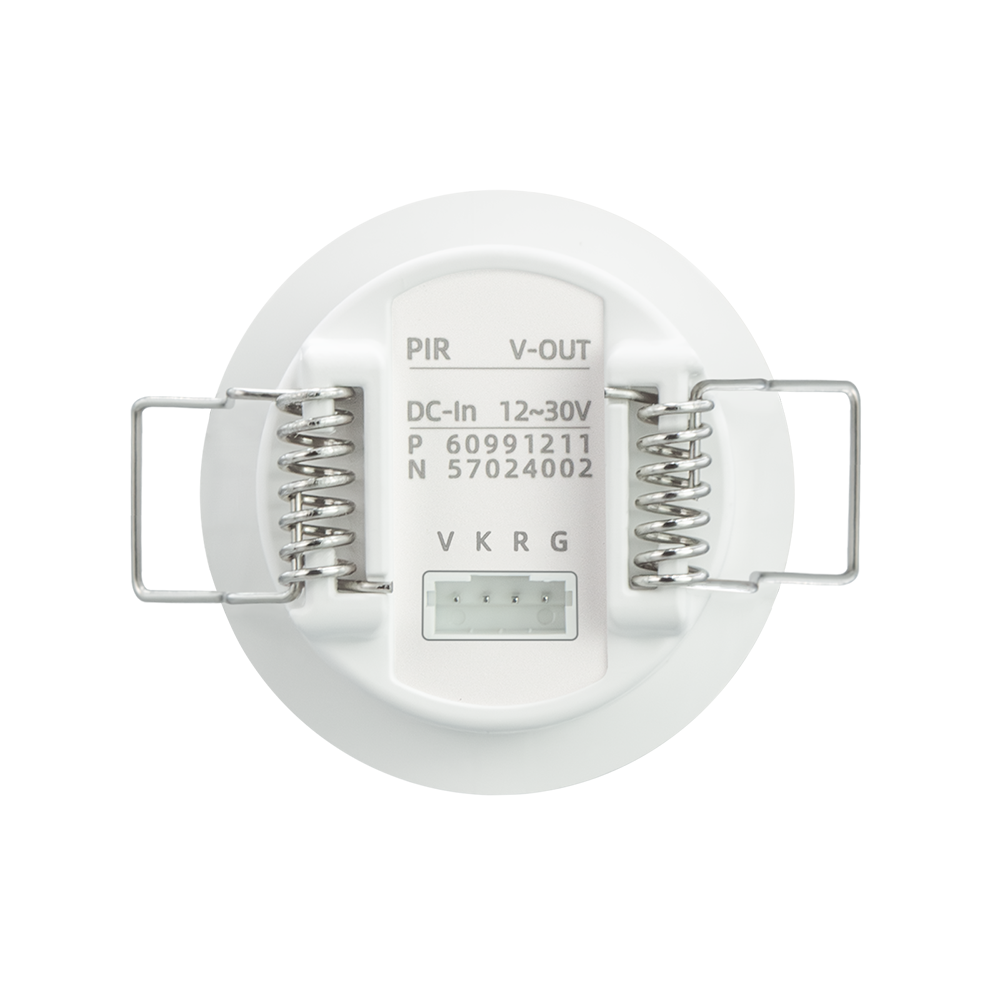

| Output Type | Mains Output |
| BOX Input Voltage | AC 100 to 240 V |
| BOX Output Voltage | DC 12 V (< 500 mA) |
| Sensor Input Voltage | DC 12 V |
| Power Consumption | 0.5 W (Max) |
| Relay Output | Normally Open Mode Normally Closed Mode |
| Relay Load | AC 100 to 240 V, ≤ 2 A |
| Indicator Light | LED |
| Detection Mode | Pyroelectric Infrared Receiver |
| Installation Method | Recessed Ceiling Mount |
| Mounting Height | 2.0 to 3.2 m |
| Detection Angle | 20° |
| Detection Range | When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m |
| Illuminance Monitoring | 0 to 32,000 Lux (Accuracy ±4%) |
| Delay Time | 1 to 3,600 seconds |
| Product Size | Φ43 mm × 25 mm |
| Cutout Size | Φ35 mm |
| Product Weight | 14.5 g |
| BOX Size | 84 mm × 26 mm × 21 mm |
| BOX Weight | 43 g |
| Cable Assembly | UL2468 22AWG Cable Length: 200 mm |
| Operating Environment | Indoor -20 to 45°C Humidity < 95% RH (Non-condensing) |
| Storage Temperature | -40 to 85°C |
| Protection Level | IP20 |
| Housing Material | PC |
Engineered with directional narrow-beam detection characteristics, this PIR curtain motion sensor features a long-axis detection angle of 90° and a short-axis (thickness) detection angle of 20°. At a standard mounting height of 3.0 meters, it delivers a bottom detection width of approximately 0.9 meters along the short axis and a maximum coverage span of up to 6.0 meters along the long axis.


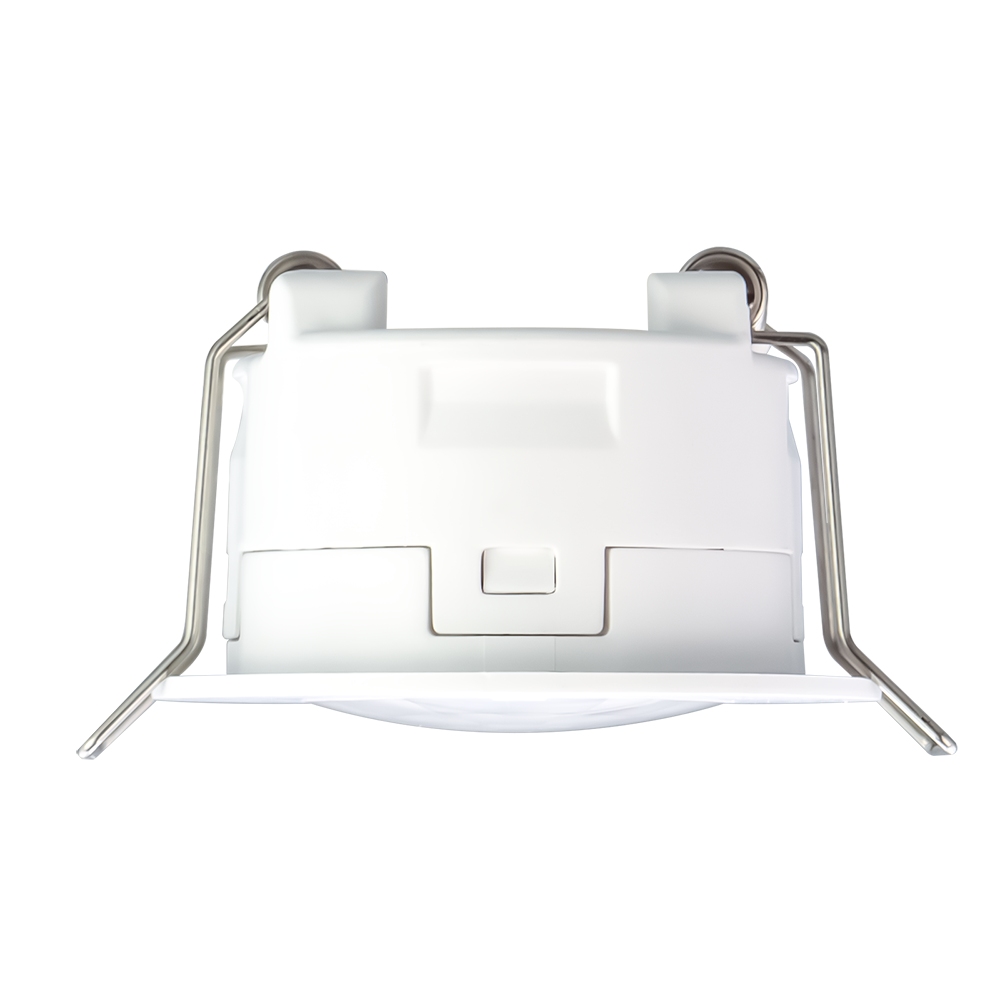

Measuring 43 mm wide and 25 mm deep, this recessed unit fits a 35 mm cutout and requires a minimum ceiling depth of 10 cm.
Interference Avoidance: Install away from moving objects (e.g., curtains) and heat sources (e.g., AC vents) to prevent false alarms.
Mounting & Handling: Mount on a stable surface. Handle with care to avoid physical damage.
Wiring Safety: Disconnect power before wiring. Use certified cables and follow the diagram.
Disposal: Dispose of packaging per local regulations.
Disclaimer: Follow wiring diagrams strictly. Manufacturer is not liable for improper installation. Specifications subject to change.


Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.
Installation method: Recessed Ceiling Mount. Mounting height: 2.0 to 3.2 m.
Detection range: When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m. Detection angle: 20°.
The Mini-PIR-S1/20 supports quick on-site configuration and parameter reading with an infrared (IR) remote control, so commissioning and maintenance do not depend on a smart home platform.
Operating environment: Indoor -20 to 45°C; Humidity < 95% RH (Non-condensing). Protection level: IP20.
