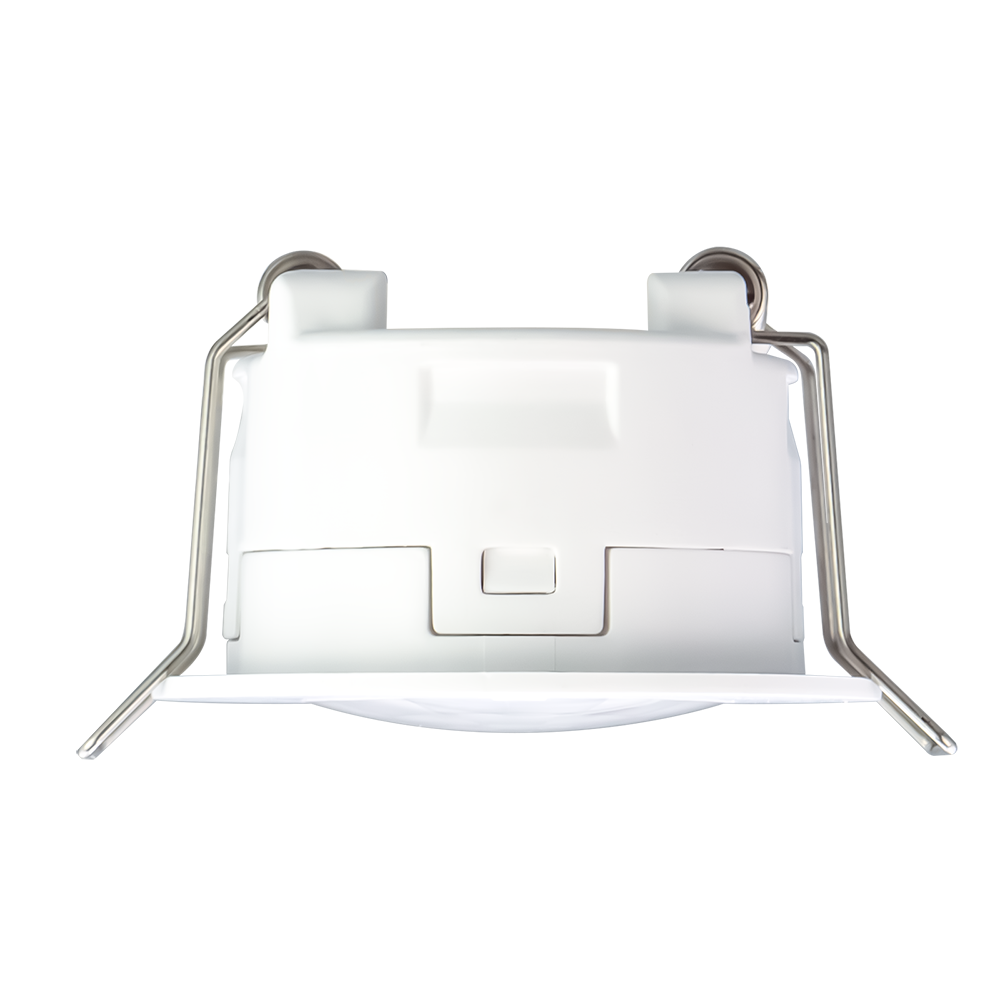

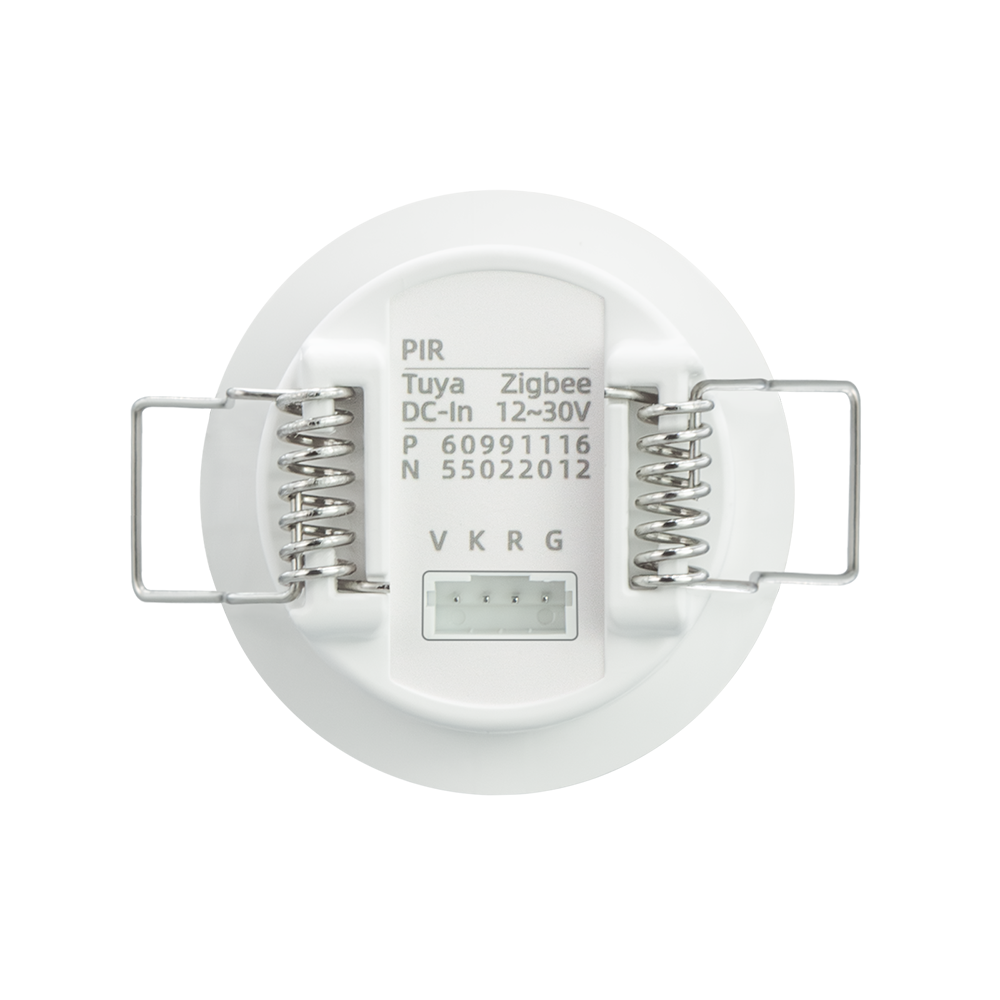

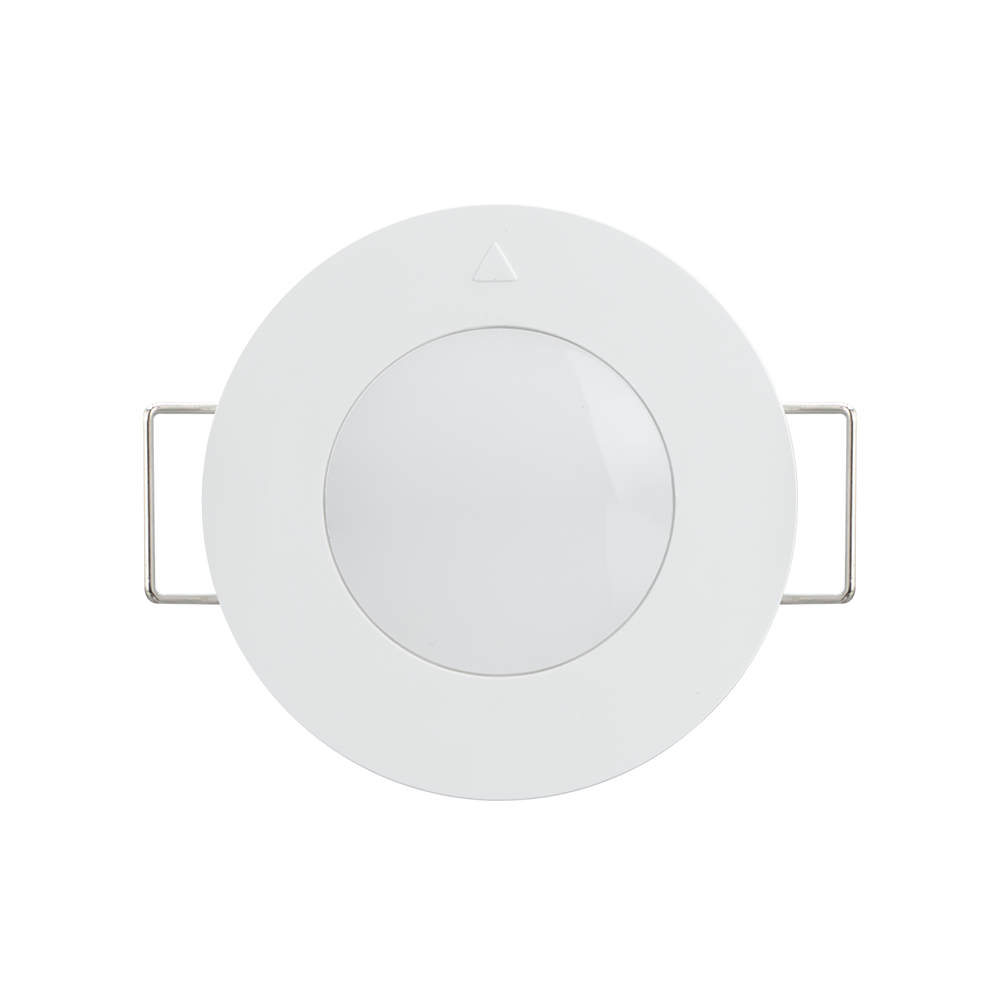

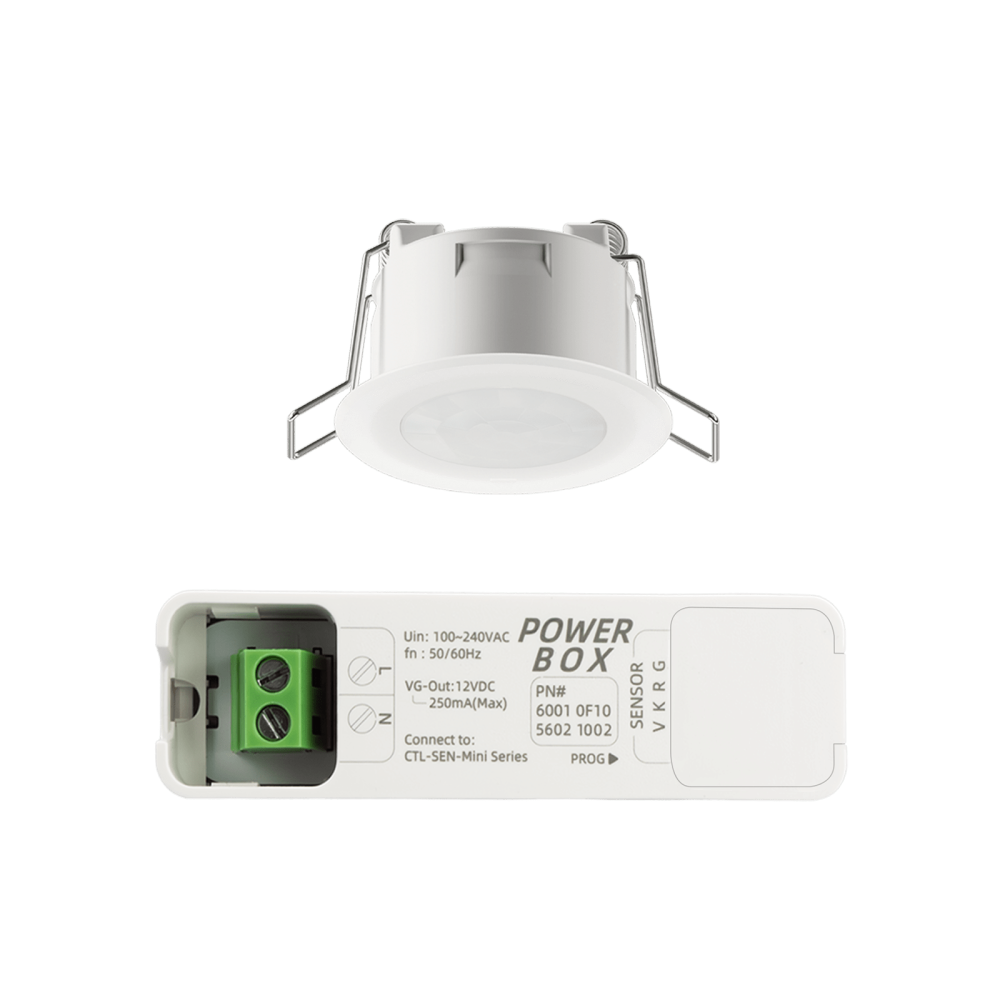

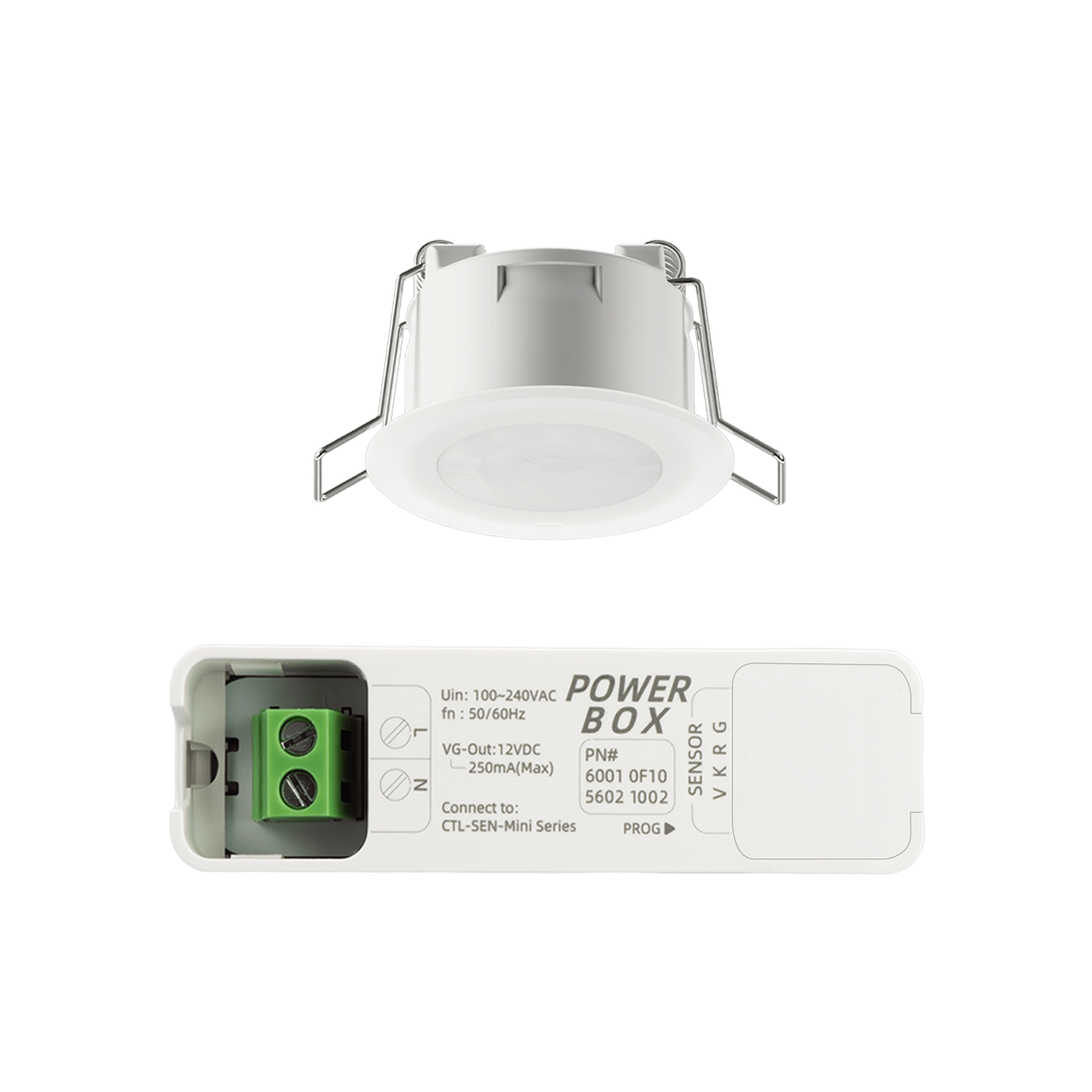

Mini PIR 360 Motion Sensor (Tuya Zigbee AC)

No.Mini-PIR-TYZ/AC
P/N:
The CTL-SEN-Mini/1116.F61 Series is a compact, high-sensitivity motion sensor powered by precise Passive Infrared (PIR) technology.
$22.60 $11.30
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    White
    Black
    Please select the information you wantX
Quantity:
-
+
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC),CREATROL SENSOR,Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC),CREATROL SENSOR,Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
1/1
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Mini PIR 360 Motion Sensor (Tuya Zigbee AC),CREATROL SENSOR,Mini PIR 360 Motion Sensor (Tuya Zigbee AC)
  • Description

Overview

The CTL-SEN-Mini/1116.F61 Series is a compact, high-sensitivity motion sensor powered by precise Passive Infrared (PIR) technology. Designed for discreet, premium applications, it features a miniature form factor (Φ35 mm cutout) while offering a 360° detection diameter of up to 6.0 m. It integrates a high-precision lux sensor (0–32,000 Lux) for energy-efficient lighting automation.

Features

  • Equipped with PIR motion detection.
  • Quad-element PIR technology enhances radial movement detection and minimizes blind spots.
  • Integrated high-precision sensor for accurate indoor illuminance monitoring.
  • 2 illuminance outputs
  • Adjustable lighting threshold.
  • Supports parameter configuration and status readout via IR remote control.
  • Indicator LED brightness automatically adjusts to ambient light levels.

Specifications

Communication Type TY-ZigBee
BOX Input Voltage AC 100 to 240 V
BOX Output Voltage DC 12 V (0.25 A MAX)
Sensor Input Voltage DC 12 V
Power Consumption 0.5 W (Max)
Indicator Light LED
Detection Mode Pyroelectric Infrared Receiver
Installation Method Recessed Ceiling Mount
Mounting Height 2.0 to 3.2 m
Detection Angle 360°
Detection Coverage When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m
Illuminance Monitoring 0 to 32,000 Lux (Accuracy ±4%)
Delay Time 1 to 3,600 seconds
Product Size Φ43 mm × 25 mm
Cutout Size Φ35 mm
Product Weight 14.5 g
BOX Size 84 mm × 26 mm × 21 mm
BOX Weight 30 g
Cable Assembly UL2468 22AWG
Cable Length: 200 mm
Operating Environment Indoor -20 to 45°C
Humidity < 95% RH (Non-condensing)
Storage Temperature -40 to 85°C
Protection Level IP20
Housing Material PC

Range

Designed with a multi-zone Fresnel lens, this PIR 360 motion sensor provides large-area, dead-zone-free movement detection with a maximum detection diameter of up to 6.0 meters at a standard mounting height of 3.0 meters.

Mini-PIR-TYZ/AC detection range, Front View
Front View
Mini-PIR-TYZ/AC detection range, Top View
Top View

Dimensions

Measuring 43 mm wide and 25 mm deep, this recessed unit fits a 35 mm cutout and requires a minimum ceiling depth of 10 cm.

Product Dimensions
Product Dimensions

Applications

Mini-PIR-TYZ/AC application: Home
Home
Mini-PIR-TYZ/AC application: Hotel
Hotel
Mini-PIR-TYZ/AC application: Lighting
Lighting
Mini-PIR-TYZ/AC application: Office
Office
Mini-PIR-TYZ/AC application: Security
Security

Mounting

Interference Avoidance: Avoid installing near moving objects (e.g., pets, swinging curtains) or areas with rapid temperature changes (e.g., AC vents, heat sources) to ensure accuracy and prevent false alarms.

Device Spacing: Maintain at least 4m between sensors.

Mounting: Install on a stable, vibration-free surface. Ensure no moving objects are behind the wall (signals penetrate non-metals).

Wiring Safety: Disconnect power before wiring. Use certified cables and strictly follow the diagram to ensure proper circuit protection.

Disclaimer: Follow wiring diagrams strictly. Manufacturer is not liable for improper installation. Specifications subject to change.

Mini-PIR-TYZ/AC wiring diagram
Wiring Diagram

Debugging

IR Remote Control
IR Remote Control

Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.

Tuya Smart
Tuya Smart

Tuya is a global IoT cloud platform and one-stop AIoT solution that provides standardized modules and software support, enabling hardware manufacturers to quickly make traditional products smart and connect them to a rich cloud ecosystem and custom apps.

FAQ

What communication protocol does the Mini-PIR-TYZ/AC use?

The Mini-PIR-TYZ/AC communicates via TY-ZigBee.

How is the Mini-PIR-TYZ/AC installed?

Installation method: Recessed Ceiling Mount. Mounting height: 2.0 to 3.2 m.

What is the detection coverage of the Mini-PIR-TYZ/AC?

Detection coverage: When the installation height is 3.0 m, the motion detection diameter is ≤ 6.0 m. Detection angle: 360°.

How is the Mini-PIR-TYZ/AC configured on site?

The Mini-PIR-TYZ/AC supports quick on-site configuration and parameter reading with an infrared (IR) remote control, so commissioning and maintenance do not depend on a smart home platform. Supported platform: Tuya Smart.

What are the operating conditions of the Mini-PIR-TYZ/AC?

Operating environment: Indoor -20 to 45°C; Humidity < 95% RH (Non-condensing). Protection level: IP20.
