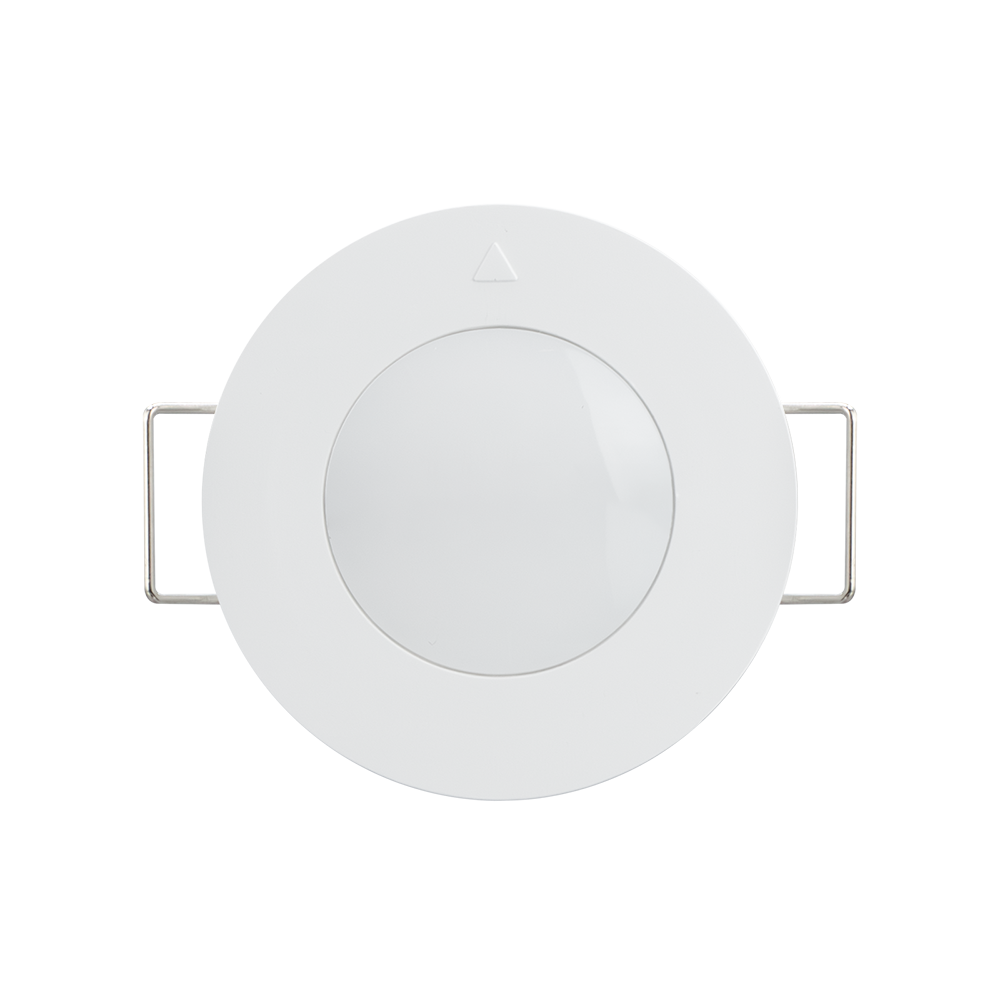

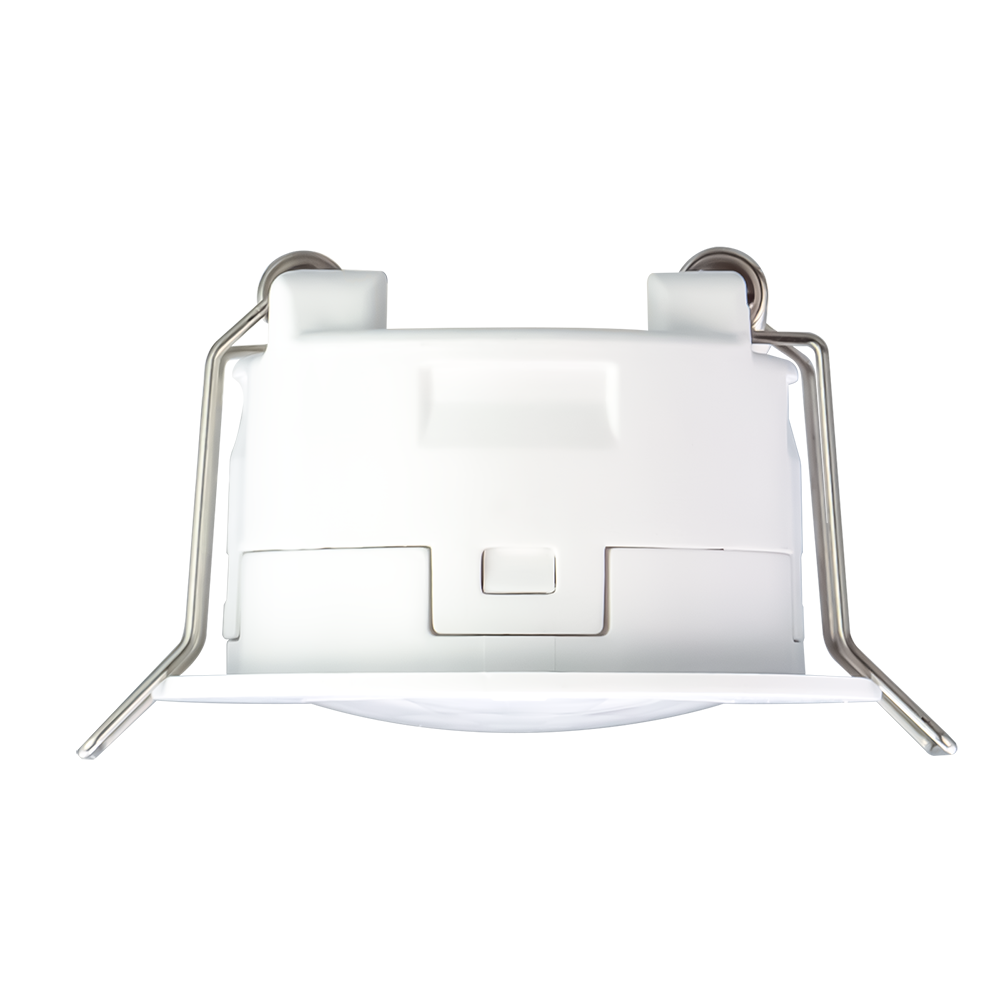

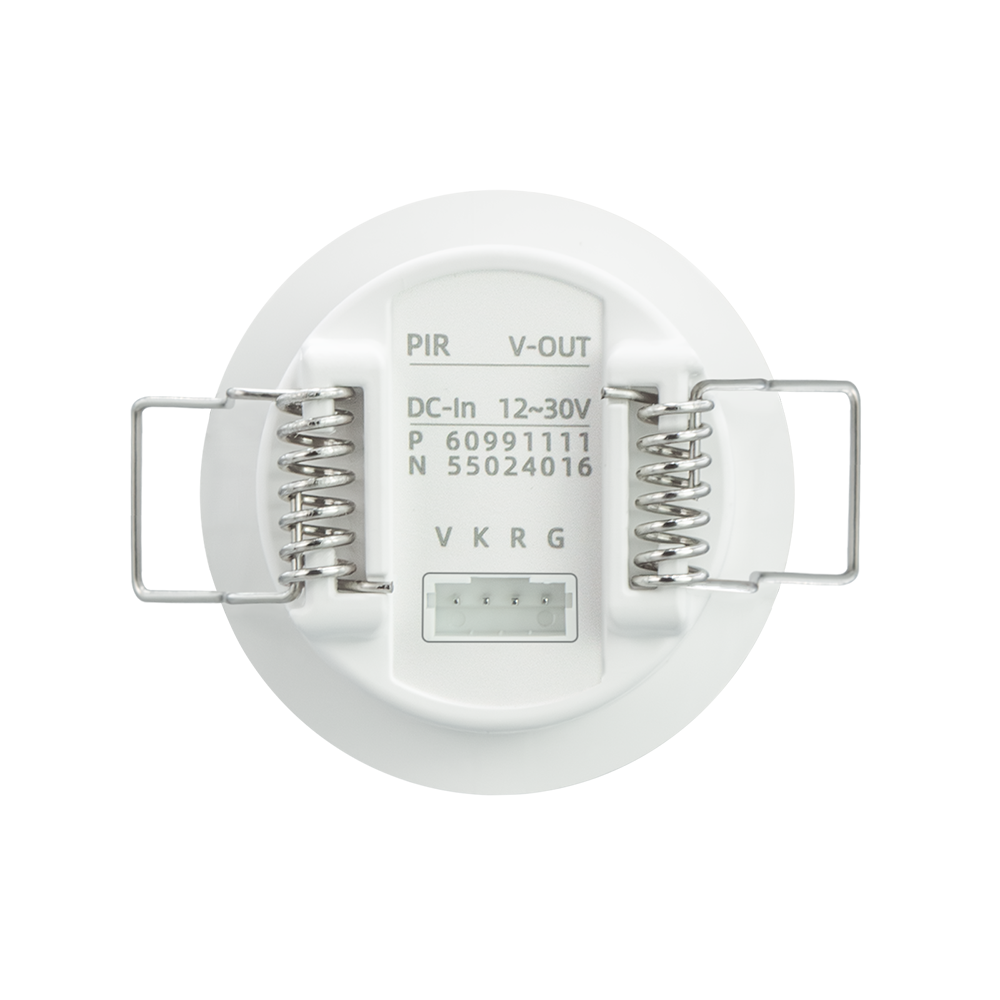

Mini PIR 360 Motion Sensor (Switch 1KW)
No.Mini-PIR-S1+
SKU: 60.99.1111.F21
Product Model: CTL-SEN-Mini/1111.F21
Detects human movement status
The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion. It has a built-in 0-32000 Lux digital illuminance counting chip, which can simultaneously detect ambient light.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ6m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Power Input: AC100~240V

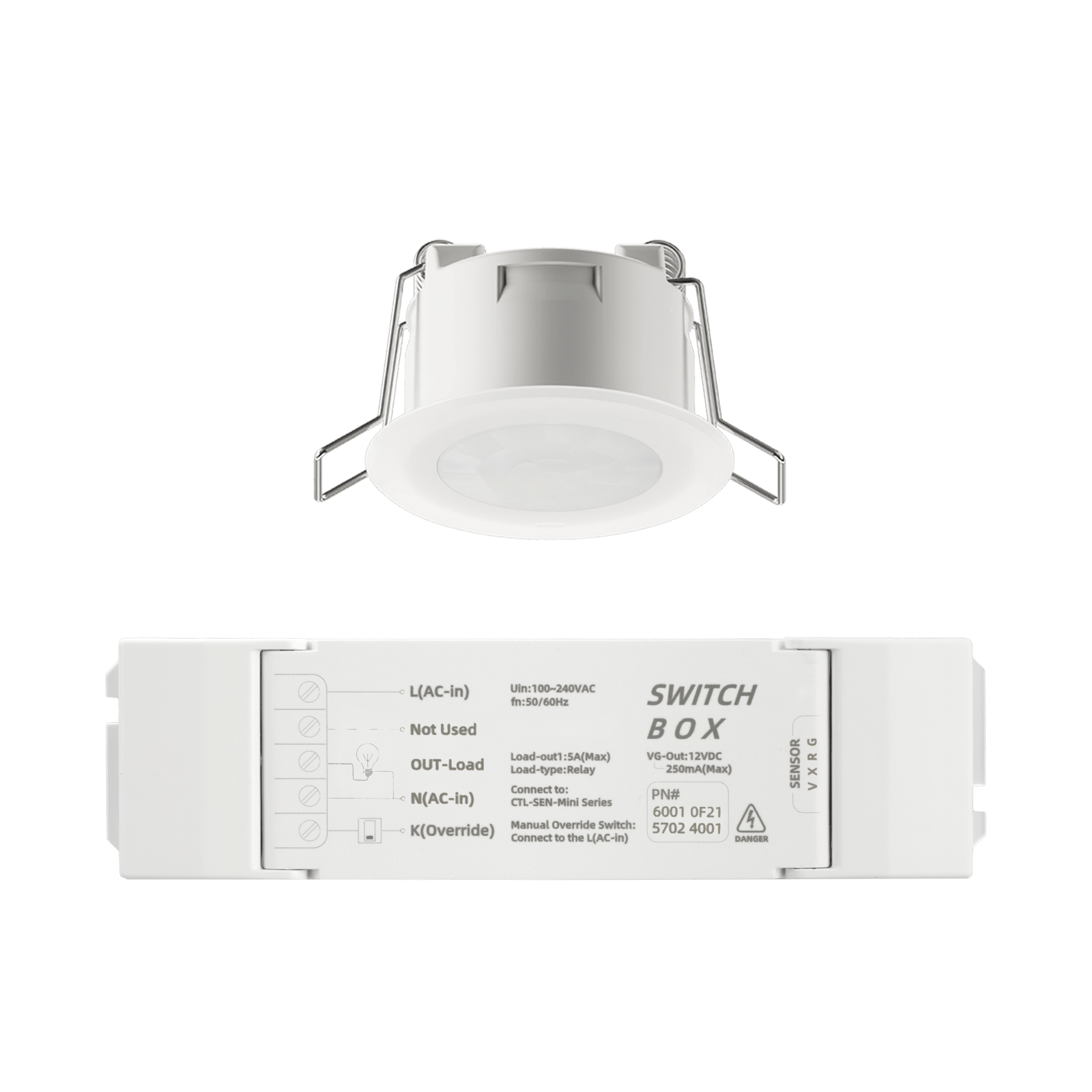

Output: 1 Channel Switch (1KW)
Detects human movement status
The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion. It has a built-in 0-32000 Lux digital illuminance counting chip, which can simultaneously detect ambient light.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ6m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Power Input: AC100~240V
Output: 1 Channel Switch (1KW)
