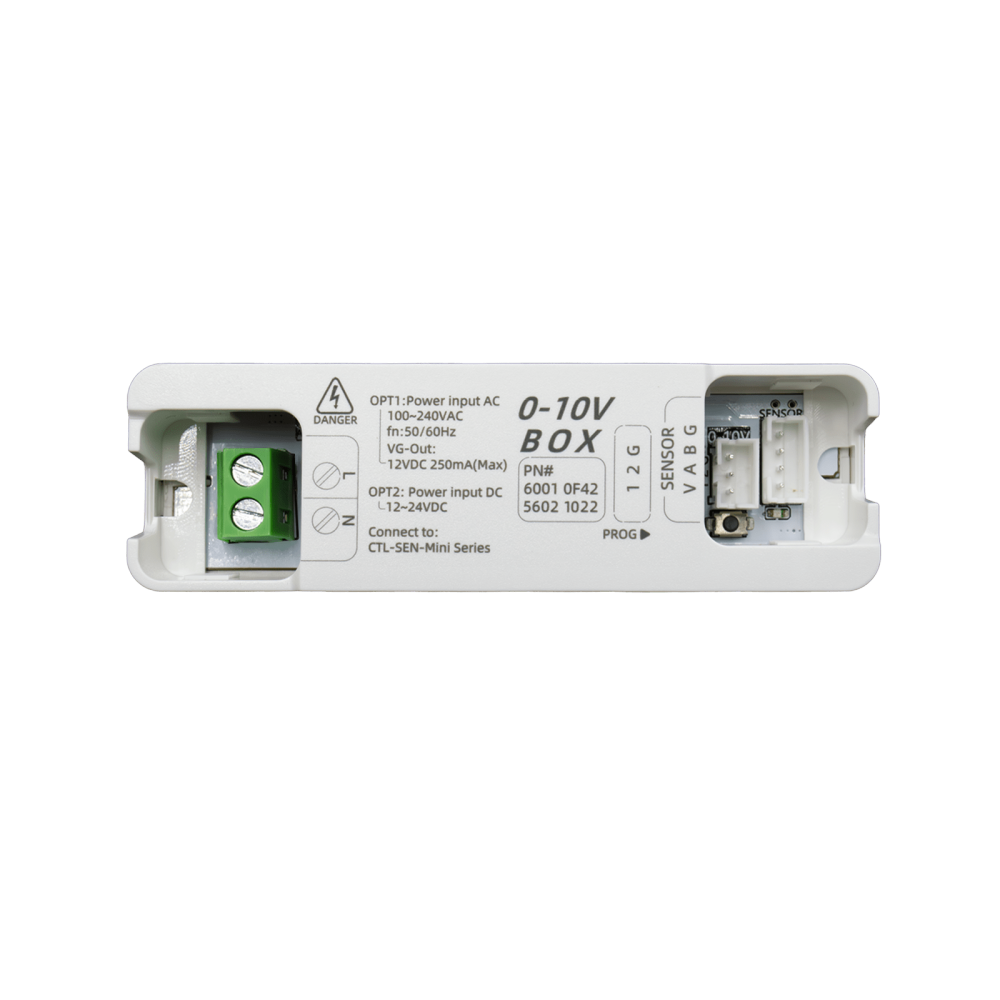

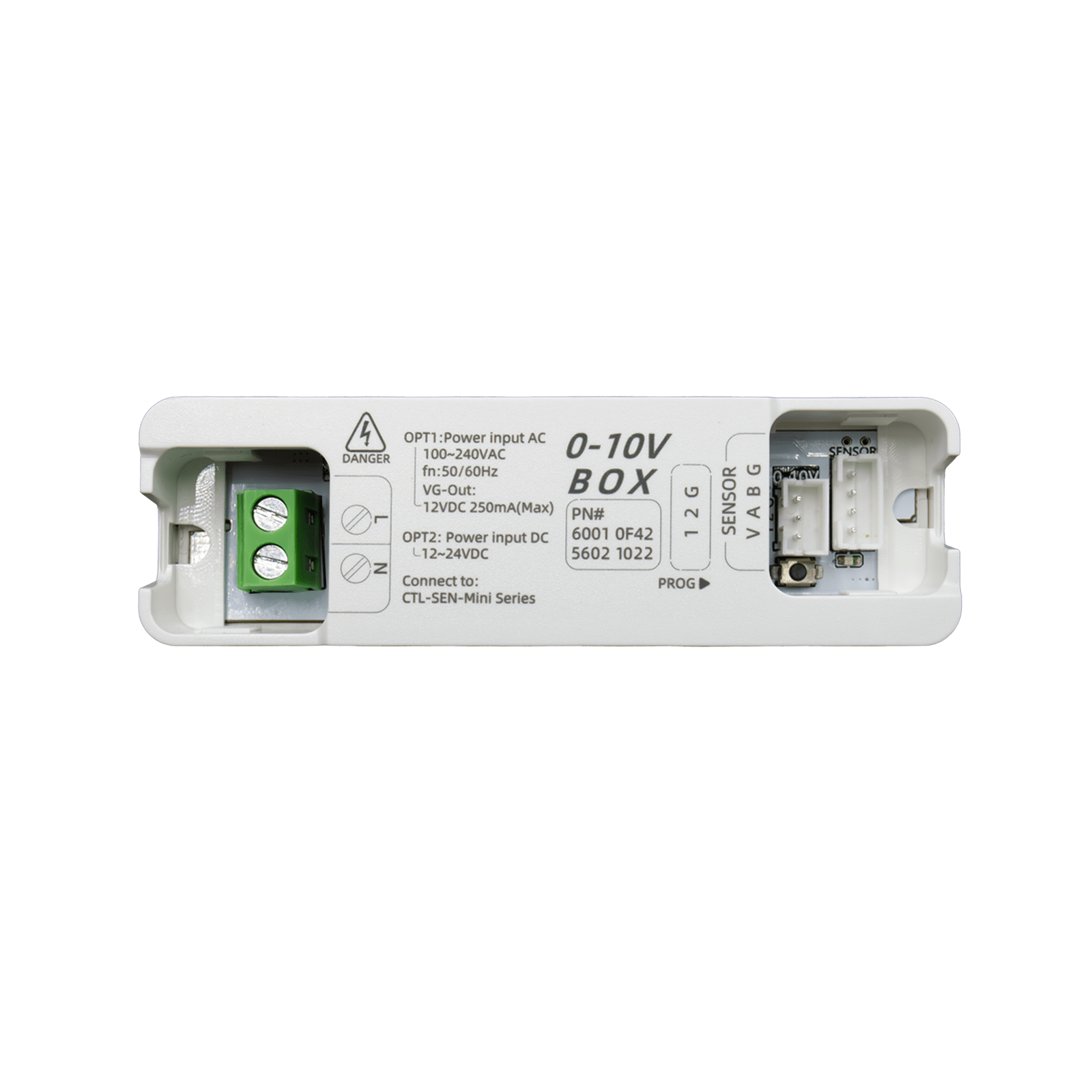

Mini Box(2 Channel 0-10V Output)

No.BOX-AC-10V
P/N: 60.01.0F42
The BOX-AC-10V is a high-performance integrated power and control interface designed for 0-10V / 1-10V dimmable luminaires.
$77.00 $19.30
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
  • Mini Box(2 Channel 0-10V Output)
  • Mini Box(2 Channel 0-10V Output)
1/1
  • Mini Box(2 Channel 0-10V Output)
  • Description
  • Resources

Overview

The BOX-AC-10V is a high-performance integrated power and control interface designed for 0-10V / 1-10V dimmable luminaires. It serves as a bridge between Mini series sensors and dimmable lighting systems, providing stable 12V DC power to sensors while delivering precise analog dimming signals. Its ultra-slim design is optimized for concealed installation in ceiling voids or wall boxes.

Features

  • Supports wide-range AC input (100 to 240 V) or low-voltage DC input (12 to 30 V) for flexible deployment.
  • Compatible with both 0 to10 V and 1 to 10 V dimming protocols, supporting up to 12 luminaires per module.
  • Enables advanced lighting strategies including 5-stage dimming and constant illuminance control when paired with compatible sensors.
  • Features a physical "PROG" button for Tuya network provisioning.

Specifications

Input Voltage AC 100 to 240 V or DC 12 to 30 V
Output Voltage DC 12 V (Max 250 mA)
Dimming Output 0 to 10 V / 1 to 10 V Analog Signal
Max. Luminaire Count < 12 units
Power Consumption < 0.5 W
Method Concealed installation
Dimensions 84 mm × 21 mm × 26 mm
Weight 37 g
Terminal Capacity Terminal blocks (0.5 to 2.5 mm²) and plug-in connectors
Housing Material Flame-retardant PC (UL94 V-0)
Operating Temperature -20 to 45°C (Indoor)
Storage Temperature -40 to 85°C
IP Rating IP20

Dimensions

Product Dimensions
Product Dimensions

Mounting

Disconnect main power before wiring.

Use safety-certified cables and strictly follow the wiring diagram.

Ensure input voltage is within range and do not exceed the rated load.

Periodically inspect terminal blocks for secure connections.

BOX-AC-10V wiring diagram
Wiring Diagram

FAQ

What power supply does the BOX-AC-10V require?

The BOX-AC-10V is powered by AC 100 to 240 V or DC 12 to 30 V. Power Consumption: < 0.5 W.

What are the operating conditions of the BOX-AC-10V?

Operating temperature: -20 to 45°C (Indoor). Protection level: IP20.

Resources

Available Accessories

No accessory required for this model.
