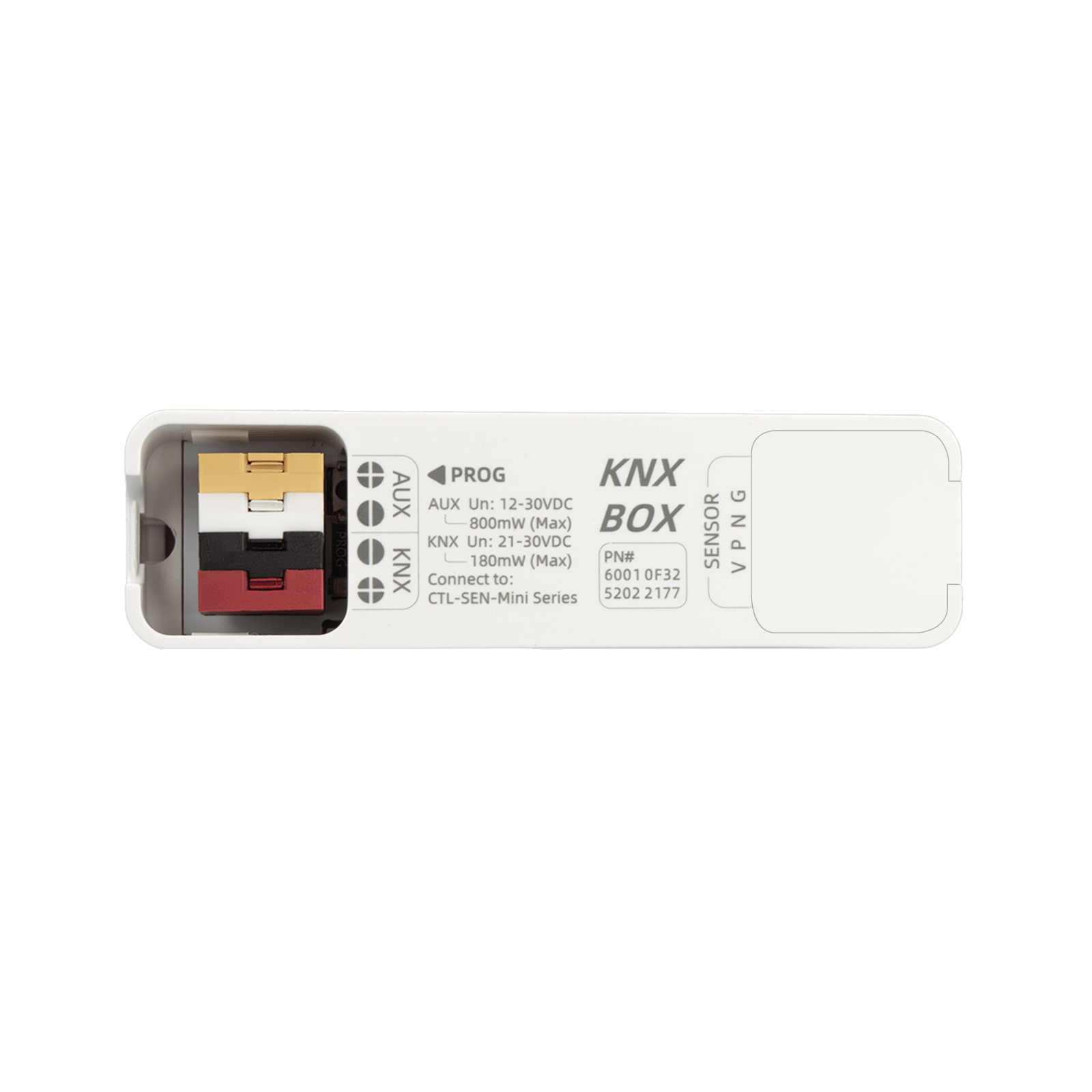

KNX Box(4P-Auxiliary Power Supply)

No.BOX-KNX-AUX
SKU: 60.01.0F32
Product Model: CTL-SEN-BOX/F32

Color: White
0.0 (0 Reviews)
0 Sold
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
  • KNX Box(4P-Auxiliary Power Supply)
  • KNX Box(4P-Auxiliary Power Supply)
1/1
  • KNX Box(4P-Auxiliary Power Supply)
  • Description
  • Features
A KNX auxiliary power device that provides 24V DC auxiliary power to KNX actuators requiring additional power supply. Maximum output current 500mA, equipped with 4-pin terminals (2 pins for bus connection, 2 pins for auxiliary power output). Includes over-current and over-voltage protection, supporting simultaneous power supply to multiple high-power actuators. When used with KNX bus power supplies, it enables the construction of stable and reliable large-scale KNX control systems.
Designation Value
Input Voltage
AC 100~240V or DC 24V

Output Voltage
DC 24V (125mA Max)

DALI Output Voltage
DC 16V (100mA Max)

Number of Luminaires
Recommendation ≤ 25 (Actual capacity depends on the current consumption of luminaire drivers on the DALI bus)

Product Dimensions
84mm21mm26mm

Box Weight
25g

Wiring Method
Terminal blocks (0.5~2.5mm²), plug-in connector

Operating Temperature
Indoor -20~45℃

Storage Temperature
-40~85℃

Relative Humidity
<95%

Protection Class
IP20

Shell Material
Flame-retardant PC (UL94 V-0)
