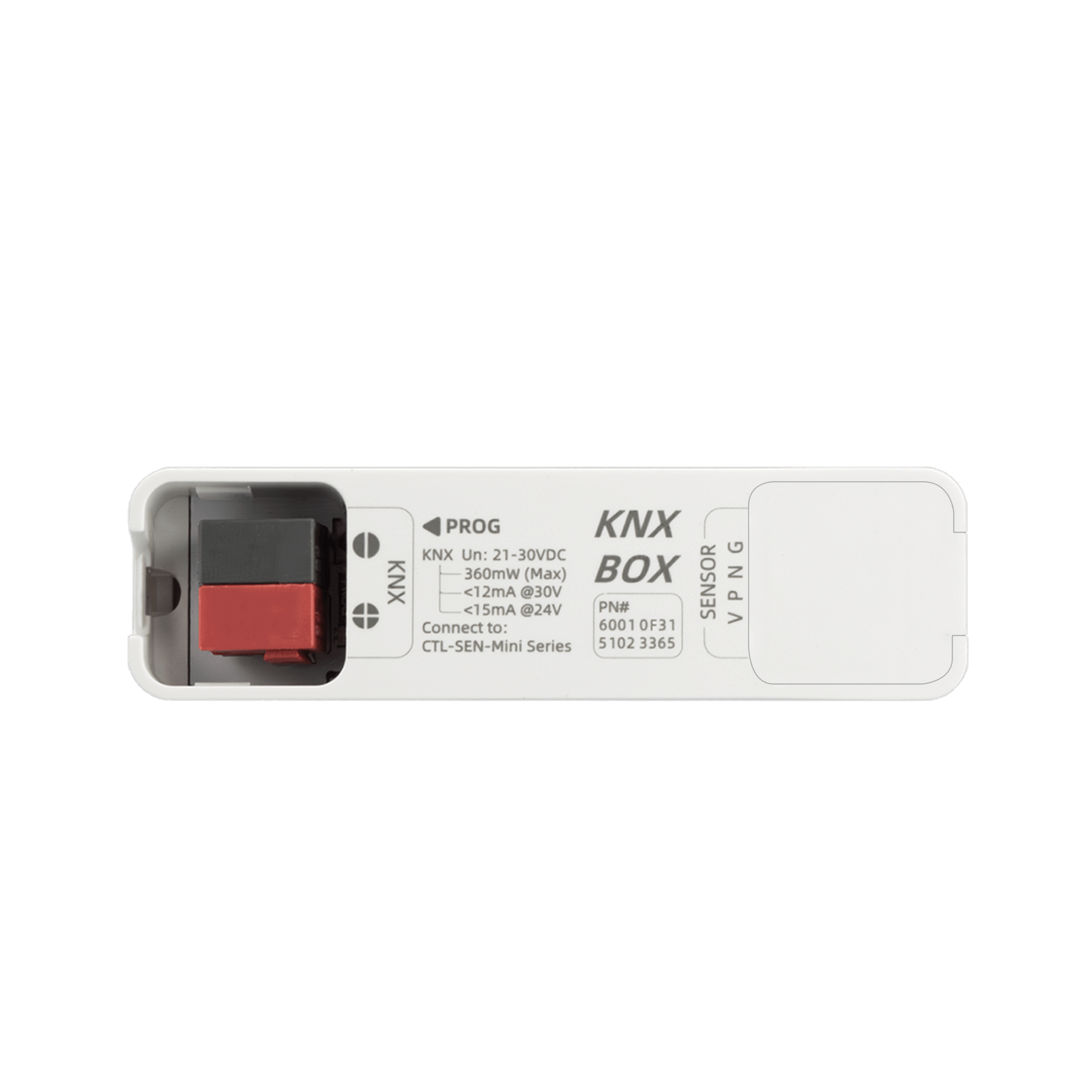

KNX Box(2P-KNX Bus Power Supply)

No.BOX-KNX-BUS
SKU: 60.01.0F31
Product Model: CTL-SEN-BOX/F31

Color: White
0.0 (0 Reviews)
0 Sold
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
  • KNX Box(2P-KNX Bus Power Supply)
  • KNX Box(2P-KNX Bus Power Supply)
1/1
  • KNX Box(2P-KNX Bus Power Supply)
  • Description
  • Features
A dedicated power supply for KNX systems, providing stable 29V DC power to the KNX bus. Maximum output current 640mA, supporting connection of up to 256 device nodes. Features short-circuit protection and automatic recovery function, certified to KNX standards. Metal housing ensures good heat dissipation, and quick installation via DIN rail clips. This is the fundamental power supply device for building KNX intelligent control systems.
Designation Value
Input Voltage
AC 100~240V or DC 24V

Output Voltage
DC 24V (125mA Max)

DALI Output Voltage
DC 16V (100mA Max)

Number of Luminaires
Recommendation ≤ 25 (Actual capacity depends on the current consumption of luminaire drivers on the DALI bus)

Product Dimensions
84mm21mm26mm

Box Weight
25g

Wiring Method
Terminal blocks (0.5~2.5mm²), plug-in connector

Operating Temperature
Indoor -20~45℃

Storage Temperature
-40~85℃

Relative Humidity
<95%

Protection Class
IP20

Shell Material
Flame-retardant PC (UL94 V-0)
