In smart sensing, a fundamental dilemma persists:The restraint of PIR, or the sensitivity of mmWave radar?

• PIR sensors offer low false alarms and high stability by detecting biological heat, but they have an inherent blind spot: they cannot detect individuals in a stationary state.
• mmWave radar captures micro-vibrations like breathing for true static sensing, but its high sensitivity is easily triggered by environmental noise, leading to false alarms.

And now, Creatrol Sensor ends this dilemma through technology fusion! By perfectly combining PIR reliability with mmWave sensitivity, we have created the all-new Dual-Tech Sensor achieving truly precise perception across all scenarios. It is more than a simple bundle. We fuse their characteristics through advanced algorithms, enabling them to work in synergy and complement each other’s strengths.

During Motion: mmWave radar rapidly detects movement across wide areas while PIR analyzes thermal signatures. This collaborative analysis effectively filters interference from fans or curtains for accurate human identification.

Stationary State: mmWave radar locks onto the target using FMCW technology to detect micro-motions from breathing (chest undulations). Simultaneously, the system integrates static thermal data from the PIR sensor for continuous dual-mode verification.

This dual-verification mechanism fundamentally overcomes traditional PIR limitations, delivering highly reliable static presence sensing.

Key Features of Dual-Tech Fusion

Ultra-Low False Alarms
Collaborative algorithms perform cross-verification at the signal level to filter noise at the source.

Full-State Coverage
From fast-paced intrusion to deep sleep, the sensor provides seamless, unobtrusive protection. "Detecting presence instantly, identifying departure immediately."

High Resilience
Unaffected by temperature changes; effectively ignores swaying plants, fans, and curtains.

It is more than just "1+1=2"—it is a revolution in perception. By merging PIR stability with radar sensitivity, Creatrol Sensor breaks technical barriers, eliminating the need for compromise.

Algorithmic Fusion & Anti-Interference

Dynamic Anti-Interference, Multi-dimensional filtering algorithms effectively eliminate common environmental noise.

• Robot Vacuum: Radar Trajectory Analysis & IR Inanimate Verification
• Moving Curtains: Radar Micro-motion Filtering & IR Thermal Validation
• Swaying Plants: Radar Point Cloud Clustering & IR Biometric Verification

Environmental Self-Learning

The more you use it, the better it understands you. The built-in self-learning function continuously analyzes environmental background signatures for both radar and PIR, allowing Creatrol Sensor to adapt to your space over time.

Application Scenarios

With superior reliability, the Creatrol Sensor Dual-Tech series excels in precision-demanding applications—optimizing energy efficiency, space utilization, and comfort.

• Whole-House Smart Control: Precise occupancy detection avoids accidental power-offs of lights or appliances during static activities.
• Unobtrusive Office Control: Accurate detection at workstations and meeting rooms ensures "Lights on when occupied, off when vacant," maximizing energy savings.
• Smart Hotels: While ensuring absolute privacy and security, static presence sensing enables automated "Welcome" services upon entry and timely energy saving upon departure. This significantly improves energy management and the guest's privacy experience.
• Space Data Analysis: Records the dwell time of personnel in different areas, providing data support for optimizing office layouts and commercial traffic flow design.
• Unobtrusive Scene Linkage: Interlinks with smart devices like lighting, curtains, air conditioning, and audio systems. For instance, when getting up at night, floor lights automatically turn on with a soft glow.
• Smart Security: Provides immediate notification of unusual situations when the indoor area is unoccupied.
• Personnel Safety Zone Management: Sets up virtual fences around dangerous machinery or AGV (Automated Guided Vehicle) work areas to trigger automatic deceleration or shutdown when a person approaches, ensuring safety.
• Smart Production Line Linkage: Detects whether an operator is at their workstation to automatically control the start and stop of production equipment, achieving efficient management.
• Dynamic Warehousing Management: Senses personnel activity at loading docks and warehouse aisles to automatically adjust lighting, improving operational safety and efficiency.

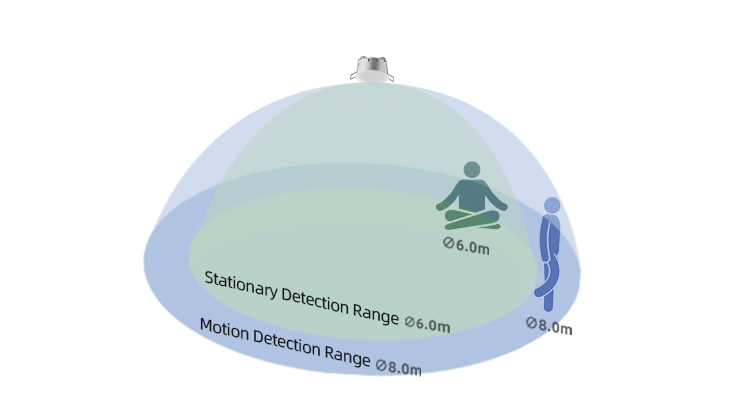

Detection Range

When ceiling-mounted at a height of 2.5 ~ 3.2 meters, Max Motion Detection ≥ Ø 8.0 meters, Max Static Detection ≥ Ø 6.0 meters.

Specifications

Various Installation Accessories (Universal for Mini Series)

• Frameless Embedded Parts: For pre-installed suspended ceilings, allowing the sensor to sit flush with the ceiling surface.
• Wall Panel Cover: Standard 86-type box panel for wall-mounted installations.
• Surface Mount Sleeve: For exposed external mounting; features a magnetic back for easy attachment.
• Angle-Adjustable Universal Mount: Used with surface mount accessories to provide a wide range of detection angle adjustments.
• Large Aperture Adapter Ring: For use when the ceiling hole is too large or when replacing legacy devices.
• 90° Bracket: For scenarios requiring horizontal detection, such as under desks or bed frames.

Multi-Protocol Versions

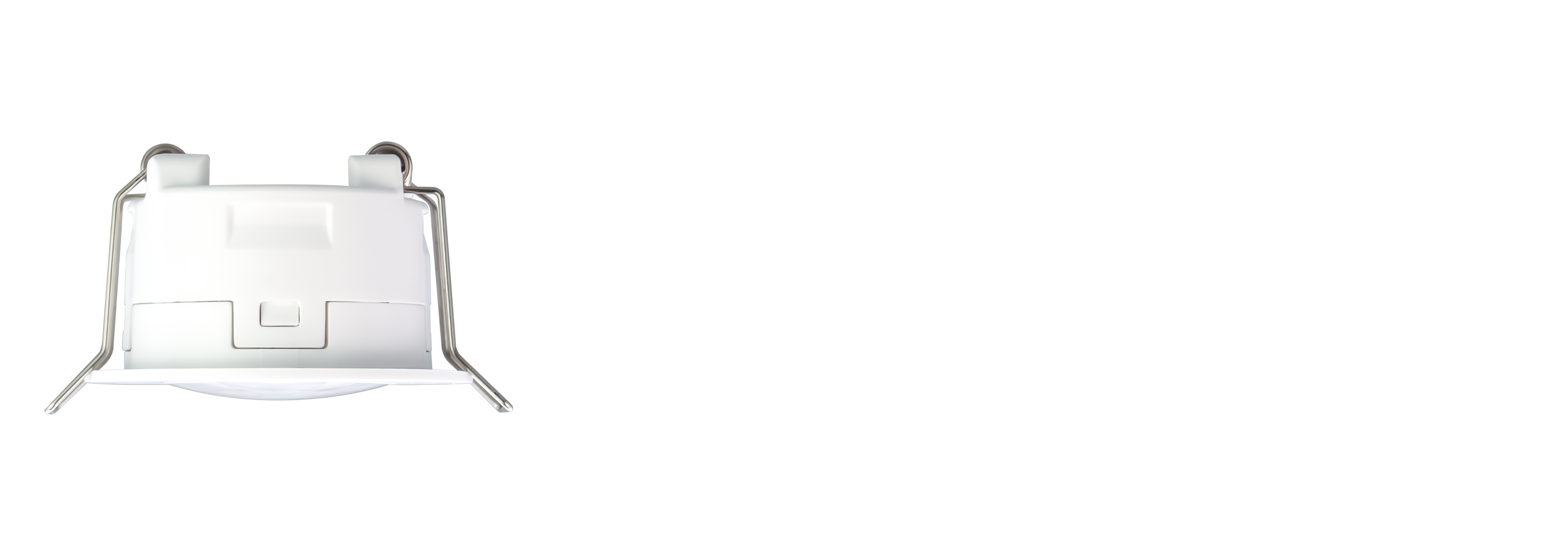

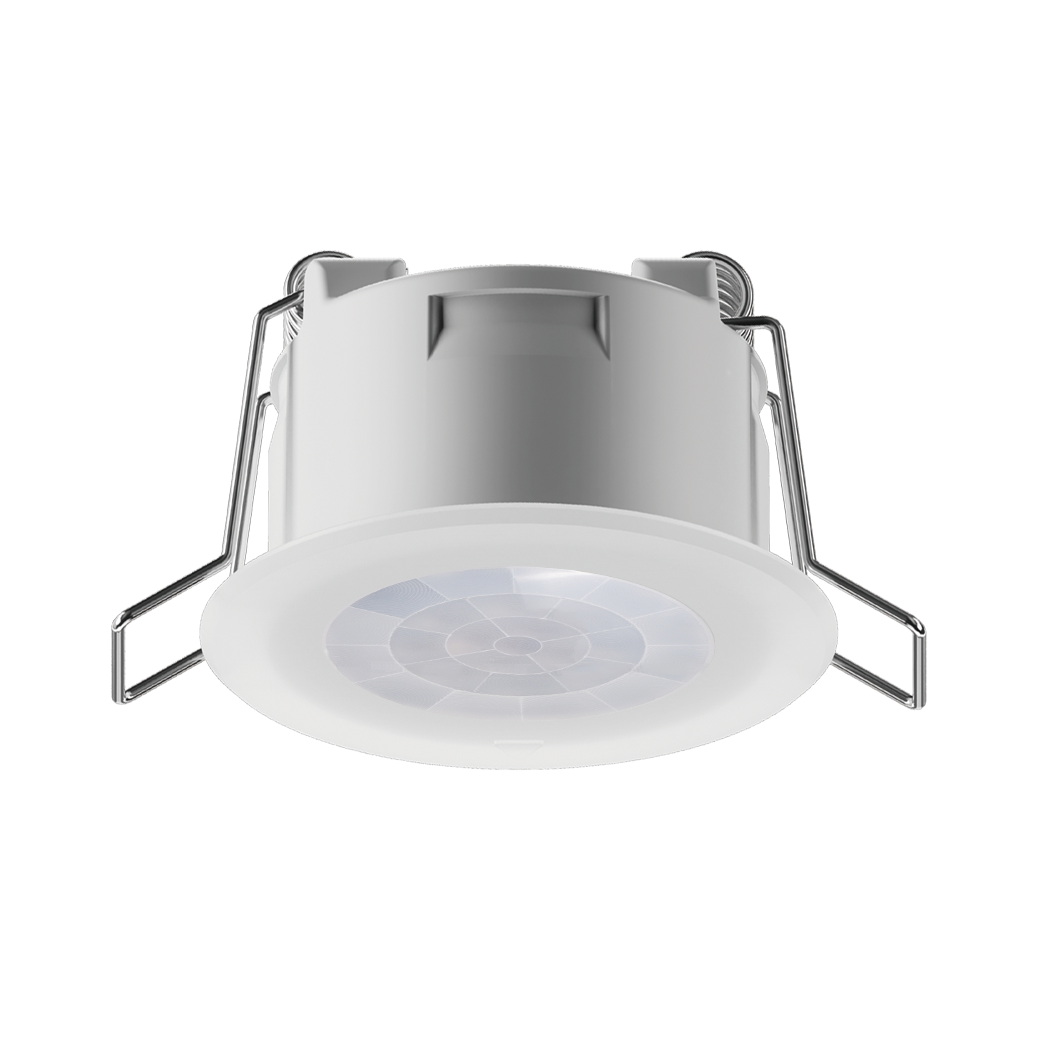

Mini Embedded Version
Version / Model / Part Number	Product Image	Order Now
Dry Contact Mini-DTP-REL [60.99.3101]
RS485 Mini-DTP-485 [60.99.3108]
UART Mini-DTP-UART [60.99.3181]
AC Light Control 300W Mini-DTP-S1 [60.99.3111.F20]
AC Light Control 1KW Mini-DTP-S1+ [60.99.3111.F21]

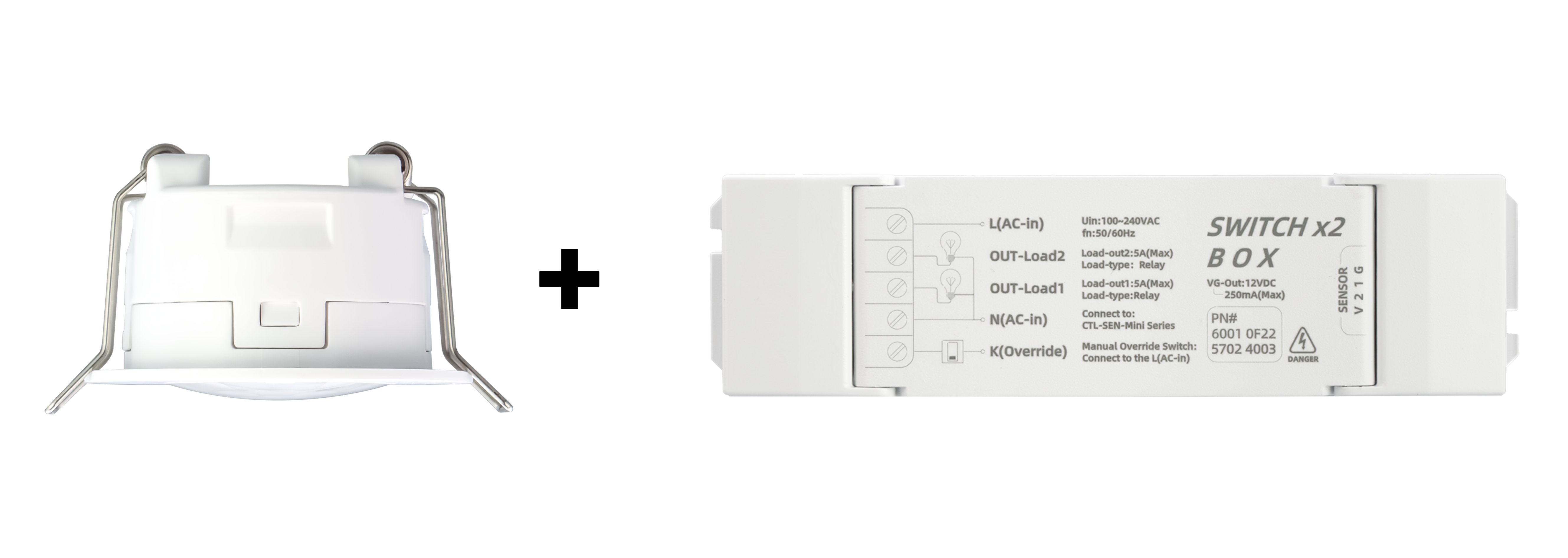

Dual-Channel AC Light Control Mini-DTP-S2 [60.99.3111.F22]
KNX Mini-DTP-KNX V2 [60.99.3113]
Tuya ZigBee Mini-DTP-TYZ/AC [60.99.3116.F61]
Tuya WiFi Mini-DTP-TYW/AC [60.99.3126.F62]

Magnetic Track Version
Version / Model / Part Number	Product Image	Order Now
Tuya ZigBee MT-DTP-TYZ/W [60.99.8A16]
Tuya WiFi MT-DTP-TYW/W [60.99.8A26]
Tuya ZigBee MT-DTP-TYZ/B [60.9B.8B16]
Tuya WiFi MT-DTP-TYW/B [60.9B.8B26]

Version Descriptions

Tuya Version

The sensor integrates into the global Tuya IoT ecosystem via ZigBee/WiFi. Users can easily manage devices, configure scenes, and enable remote control through the Tuya App. Its flexible deployment and seamless automation with massive Tuya-compatible devices (lights, sockets, curtains) make it ideal for smart homes, hotels, and commercial projects.

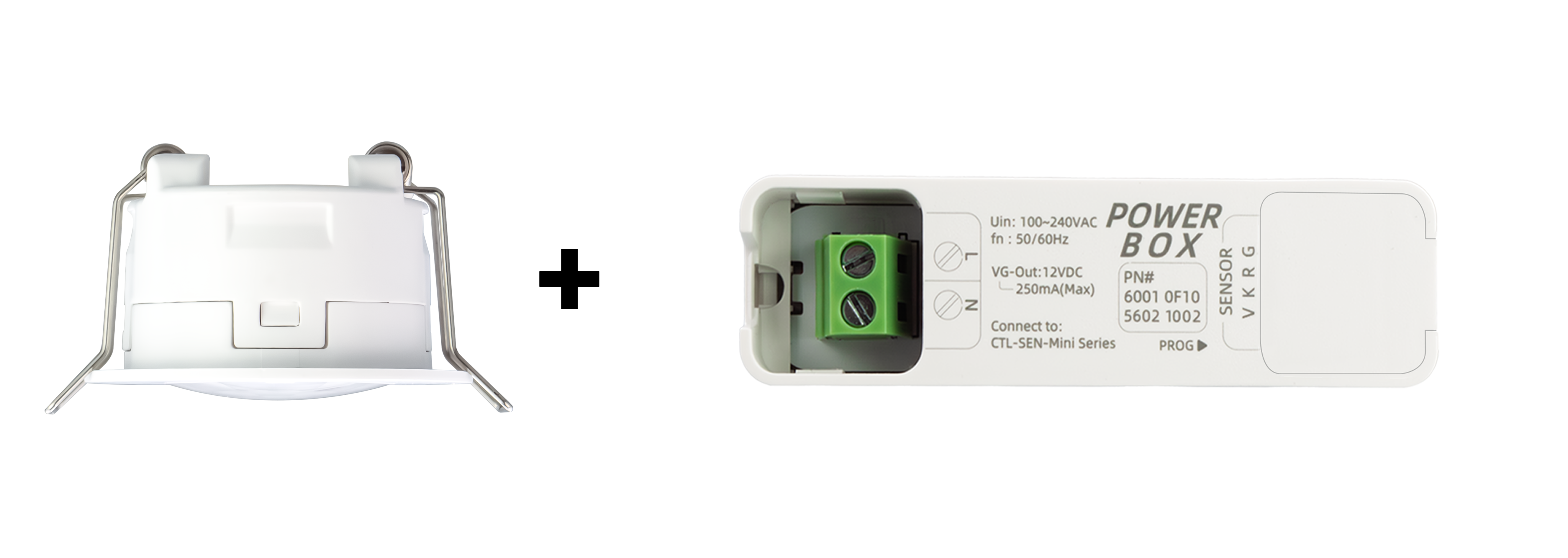

Wiring: 220V Mains -> Power Box -> Sensor

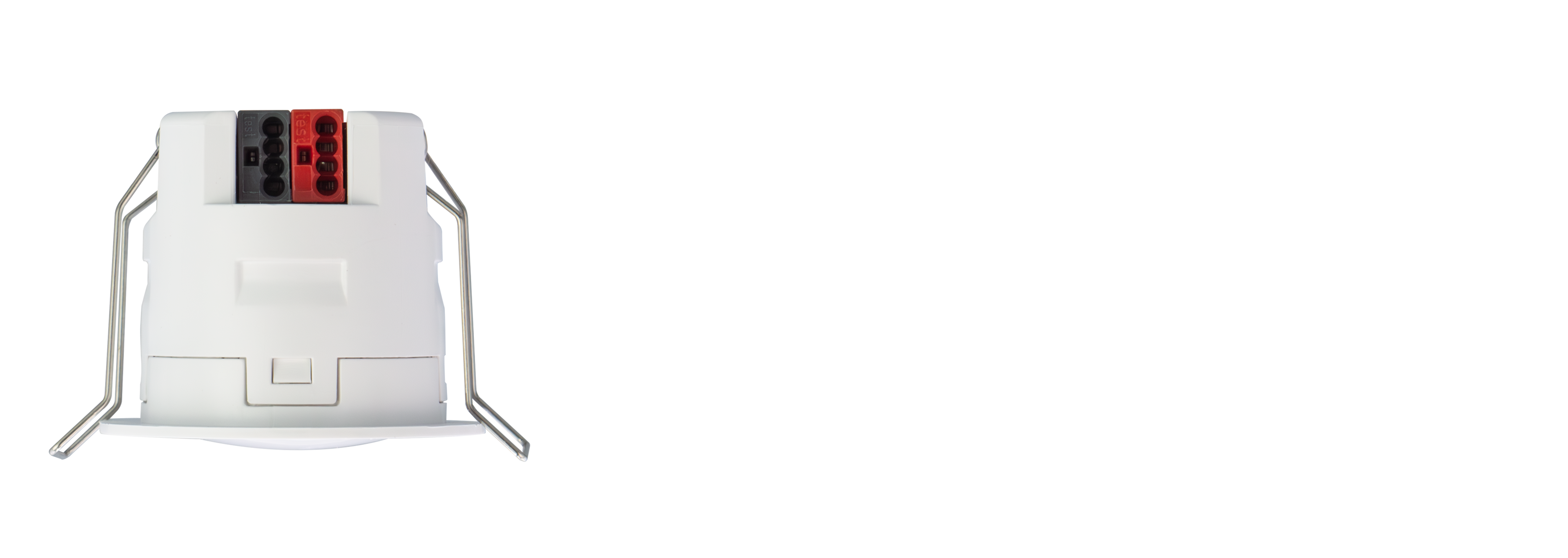

KNX Version

KNX is the global standard for home and building control. It uses a dedicated bus for power and communication, ensuring superior stability and interference resistance. The Creatrol Sensor KNX version maintains ultra-low power consumption (only 10mA) even with Radar, PIR, and Lux sensors fully active. It requires no auxiliary power, significantly reducing installation complexity and costs.

Wiring: KNX Bus Power -> Sensor 1 -> Sensor 2

ETS Programming
Certified database provided. All parameters are configured via ETS. Creatrol offers complete bilingual tutorials covering database setup, Easy/Advanced modes, and scene linkage.

For detailed ETS operations, please scan the QR code below or click the link to access the CTL-KNX series user manuals and video tutorials.

RS485 Version

Outputs rich detection data (presence, lux, and switch status) for precise logic and system analytics. Supports universal Modbus-RTU or high-real-time Unified Active Transmit Protocol.

RS485 Modbus

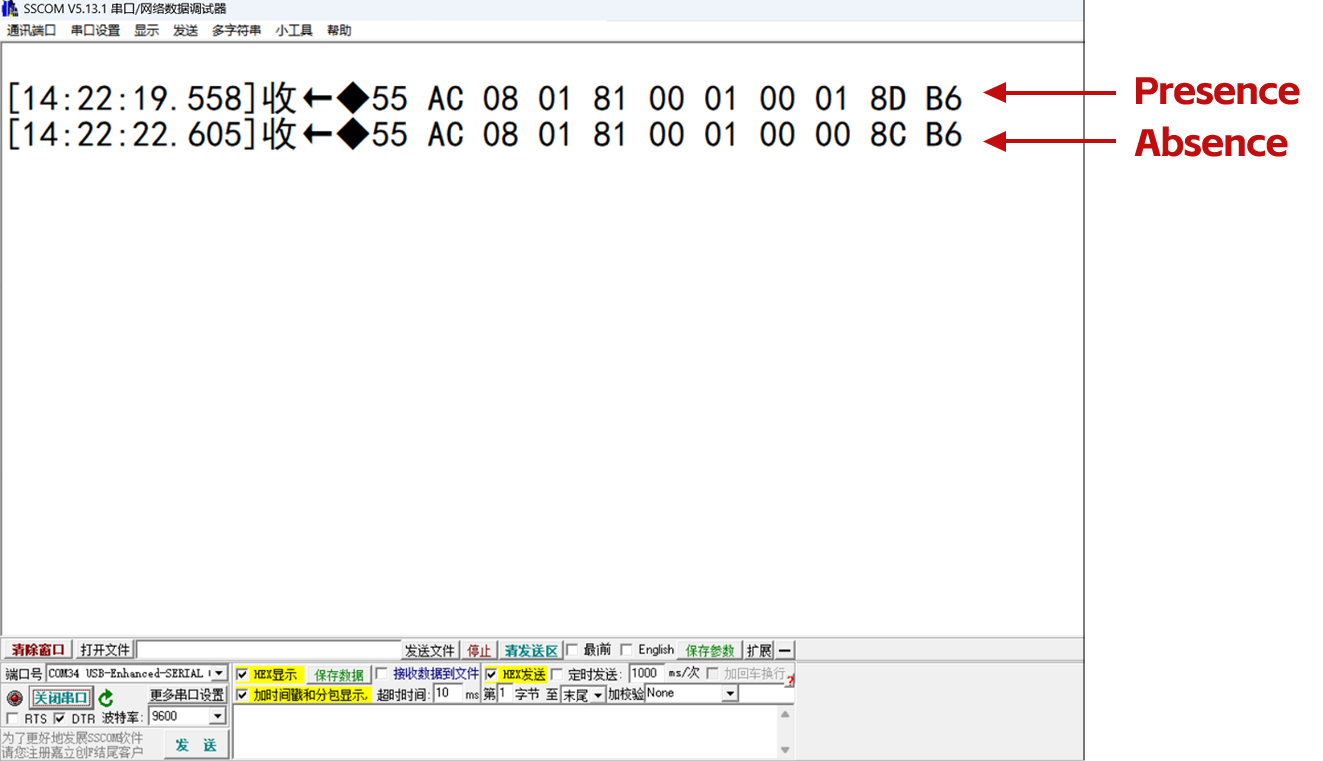

RS485 Unified Active Transmit Protocol

Wiring: DC Power -> RS485 Gateway -> Sensor 1 -> Sensor 2

Dry Contact Version

Features a silent solid-state relay with no mechanical vibration or arcing, ensuring a much longer lifespan than traditional relays. Ideal for integration with various smart and security systems.

Wiring: Connects to Smart System Input Modules.

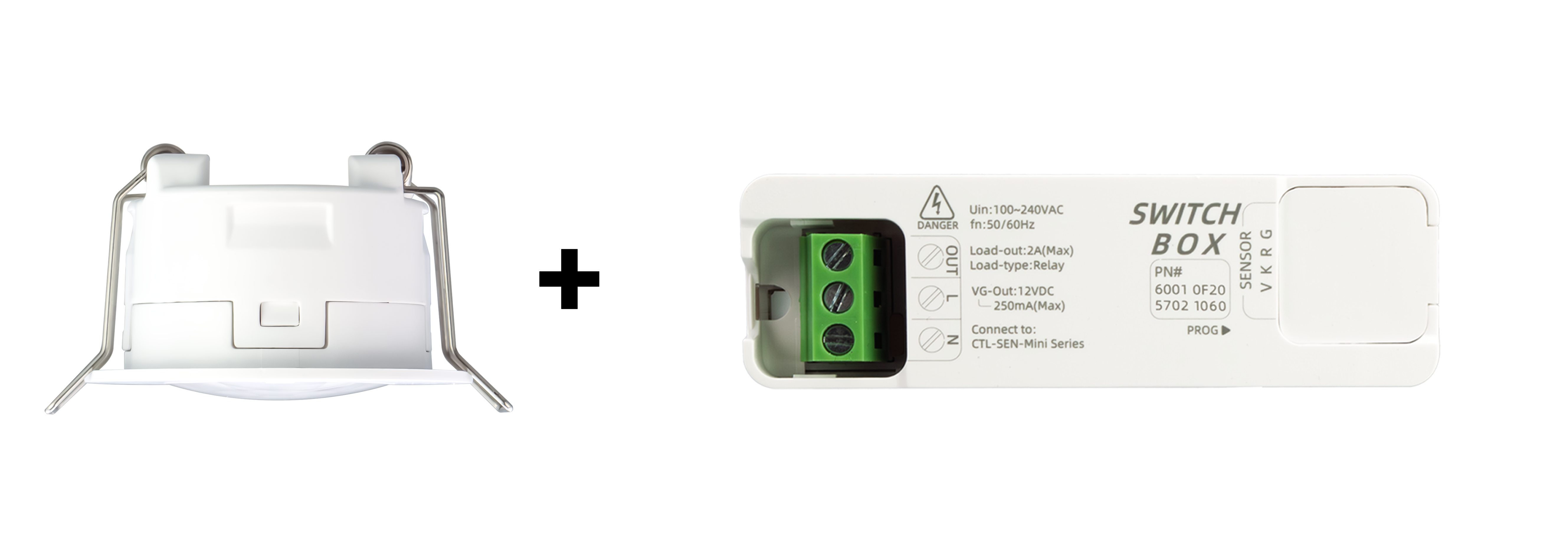

AC Power Version

The sensor integrates into the global Tuya IoT ecosystem via ZigBee/WiFi. Users can easily manage devices, configure scenes, and enable remote control through the Tuya App. Its flexible deployment and seamless automation with massive Tuya-compatible devices (lights, sockets, curtains) make it ideal for smart homes, hotels, and commercial projects.

Wiring: 220V Mains -> Power Box -> Sensor

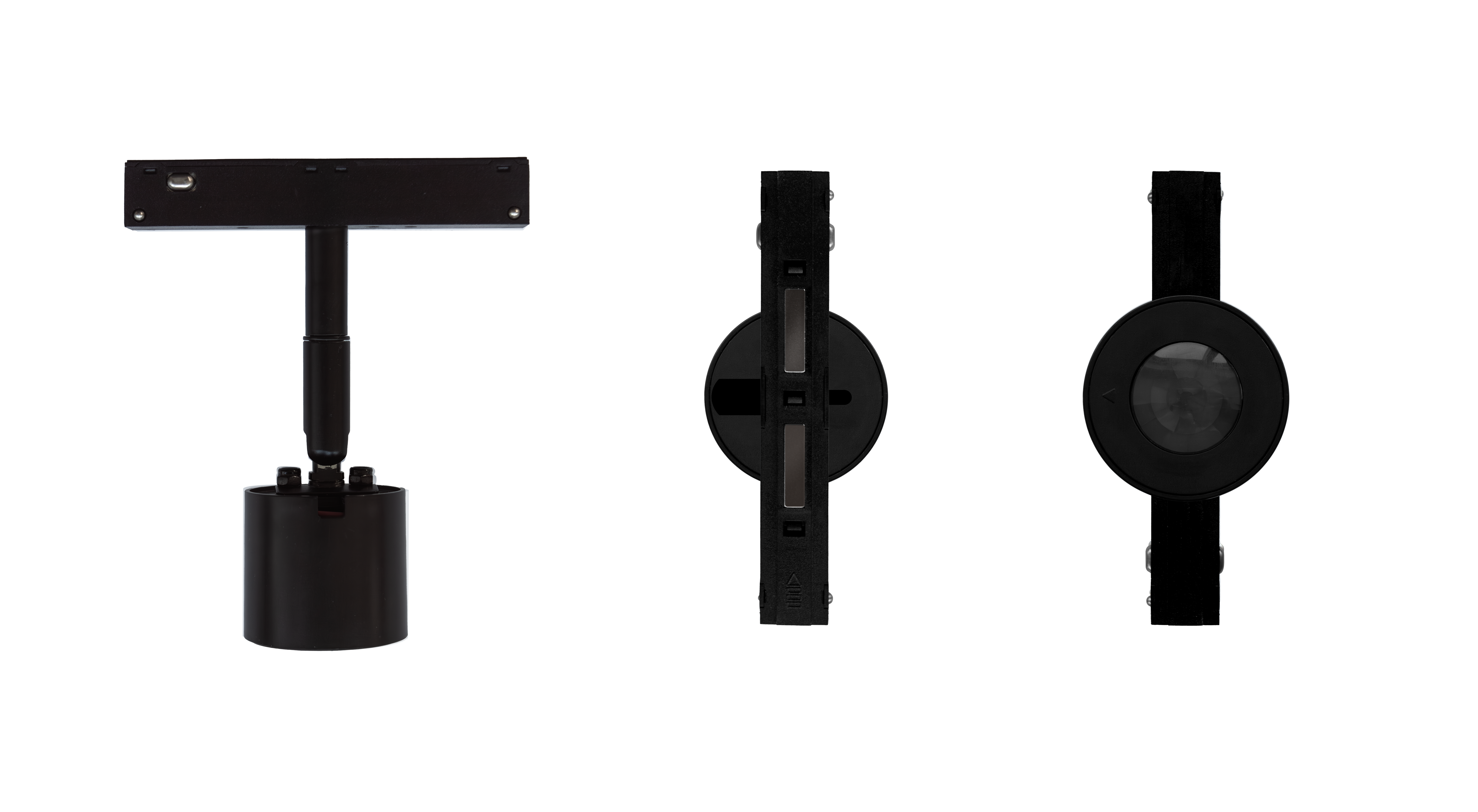

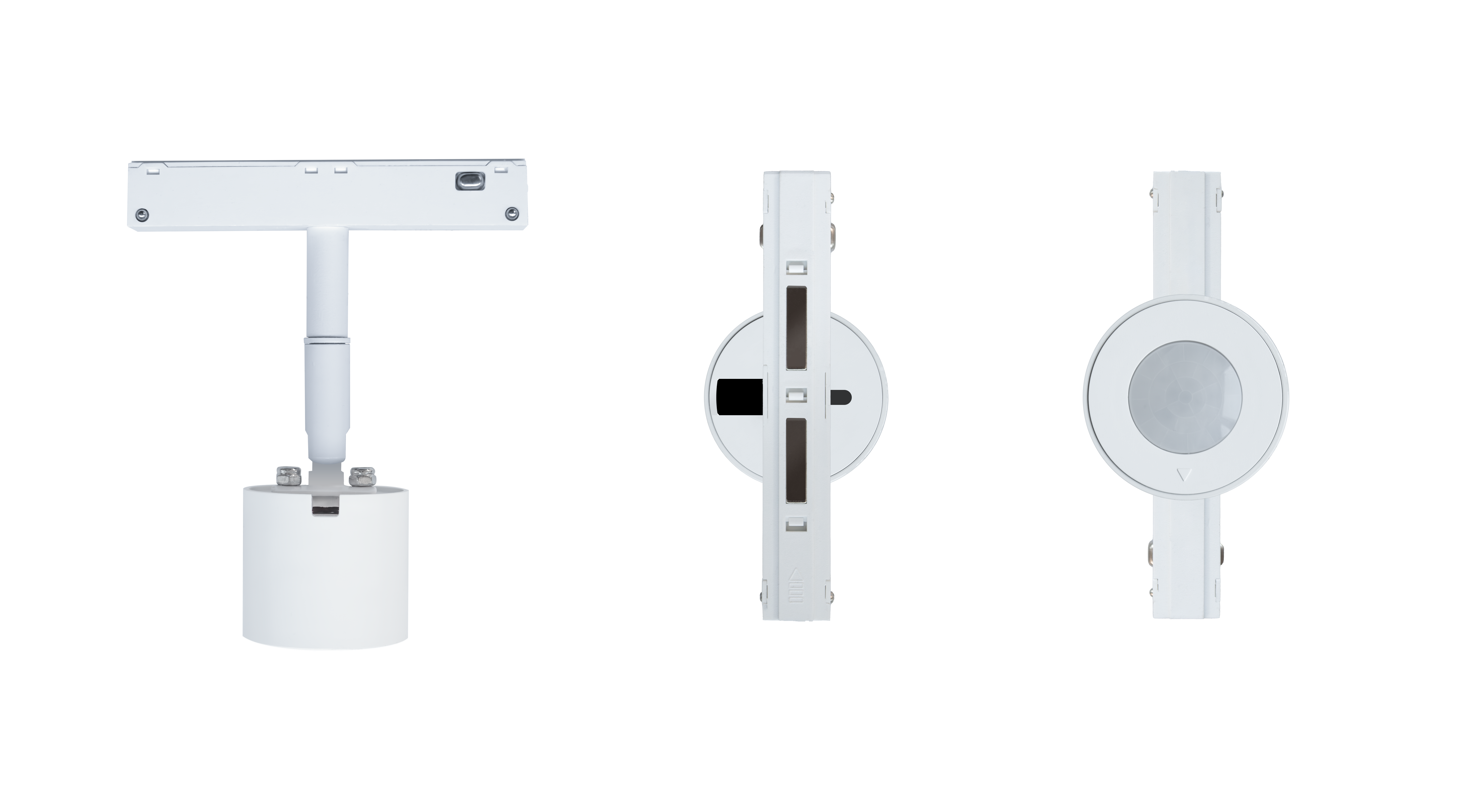

Magnetic Track Version

Designed for standard 20mm magnetic tracks. Supports DC wide-voltage power and offers 330° adjustable direction. Available in Black or White.
